$9.65
/ EACH
Eyebolt, 2,860 kg (6,306 lb.) Capacity, Metric, Shouldered, Forged Steel, M20 X 2.5 Thread Size
Item #
106720
Item is returnable
$27.40
/ EACH

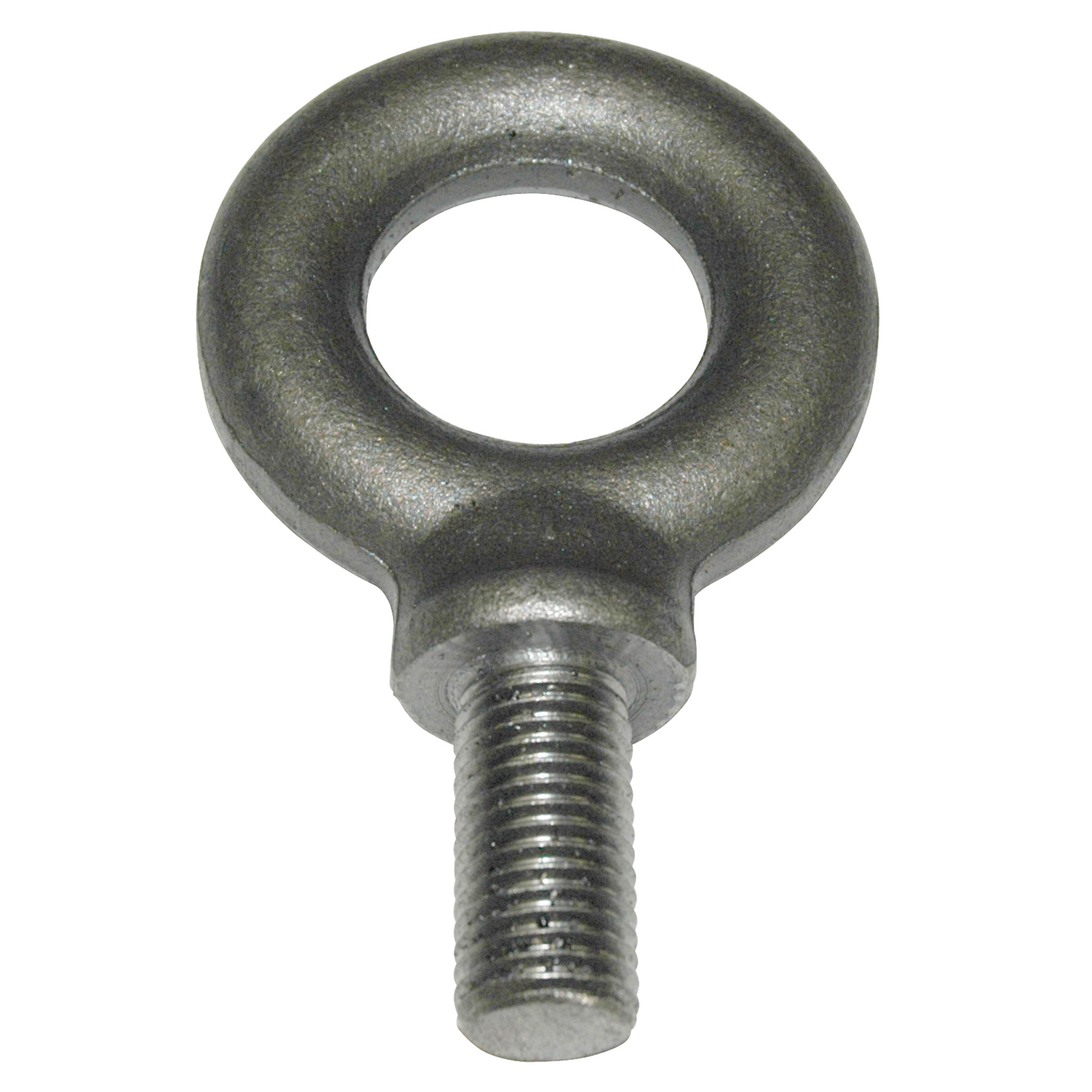

Eyebolt, 2,860 kg (6,306 lb.) Capacity, Metric, Shouldered, Forged Steel, M20 x 2.5 Thread Size.
- 40 mm (1.632") Shank Length
- 41 mm (1.614") Eye Inside Diameter
- 81.0 mm (3.188") Eye OD
- 52.5 mm (2.07") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 2,860 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M20 x 2.5
Item Documents
- Item Catalog Page 27
- Item Catalog Page 27
-
-
$75.00 / EACH -
Eyebolt, 5,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/4″-10 Thread Size
Item # 101419$6.81 / EACH -
Eyebolt, 1,800 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 7/16″-14 Thread Size
Item # 101415$7.50 / EACH -
Eyebolt, 1,300 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/8″-16 Thread Size
Item # 101417$5.00 / EACH -
Eyebolt, 740 kg (1,631 lb.) Capacity, Metric, Shouldered, Forged Steel, M10 X 1.5 Thread Size
Item # 107521$11.20 / EACH -
Eyebolt, 16,400 kg (36,155 lb.) Capacity, Metric, Shouldered, Forged Steel, M48 X 5 Thread Size
Item # 140636$239.00 / EACH -
Eyebolt, 3,200 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 9/16″-12 Thread Size
Item # 142209$8.66 / EACH -
Eyebolt, 4,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 5/8″-11 Thread Size
Item # 101420$7.47 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 107961$29.05 / EACH -
$11.92 / EACH -
Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24 X 3.0 Thread Size
Item # 106718$35.80 / EACH
