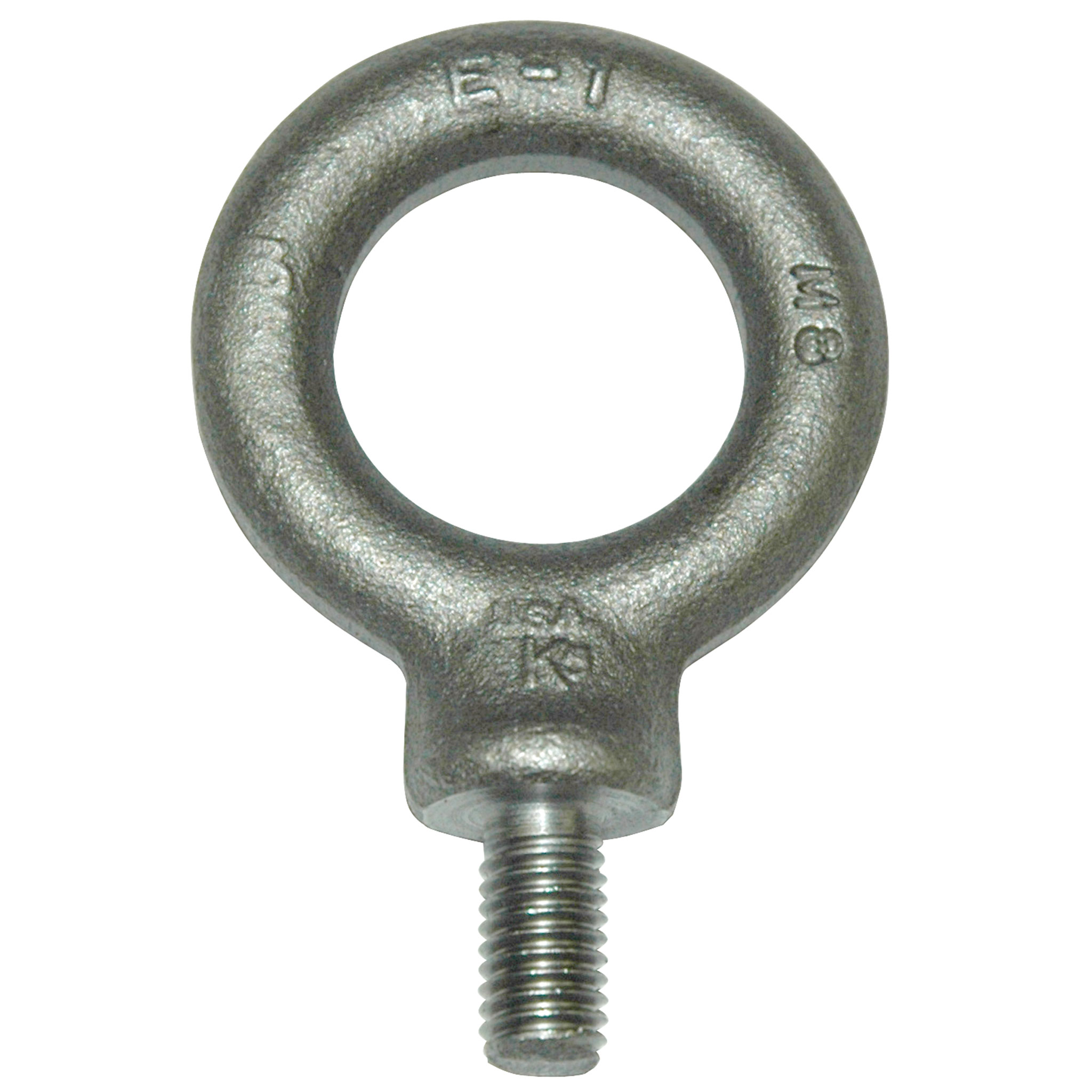

Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8 X 1.25 Thread Size
Part #
107516
$10.20
/ EACH
Product is returnable
Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8 x 1.25 Thread Size.
Product Features
- 16 mm (0.63") Shank Length
- 25 mm (0.984") Eye Inside Diameter
- 43.0 mm (1.693") Eye OD
- 27.8 mm (1.094") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
