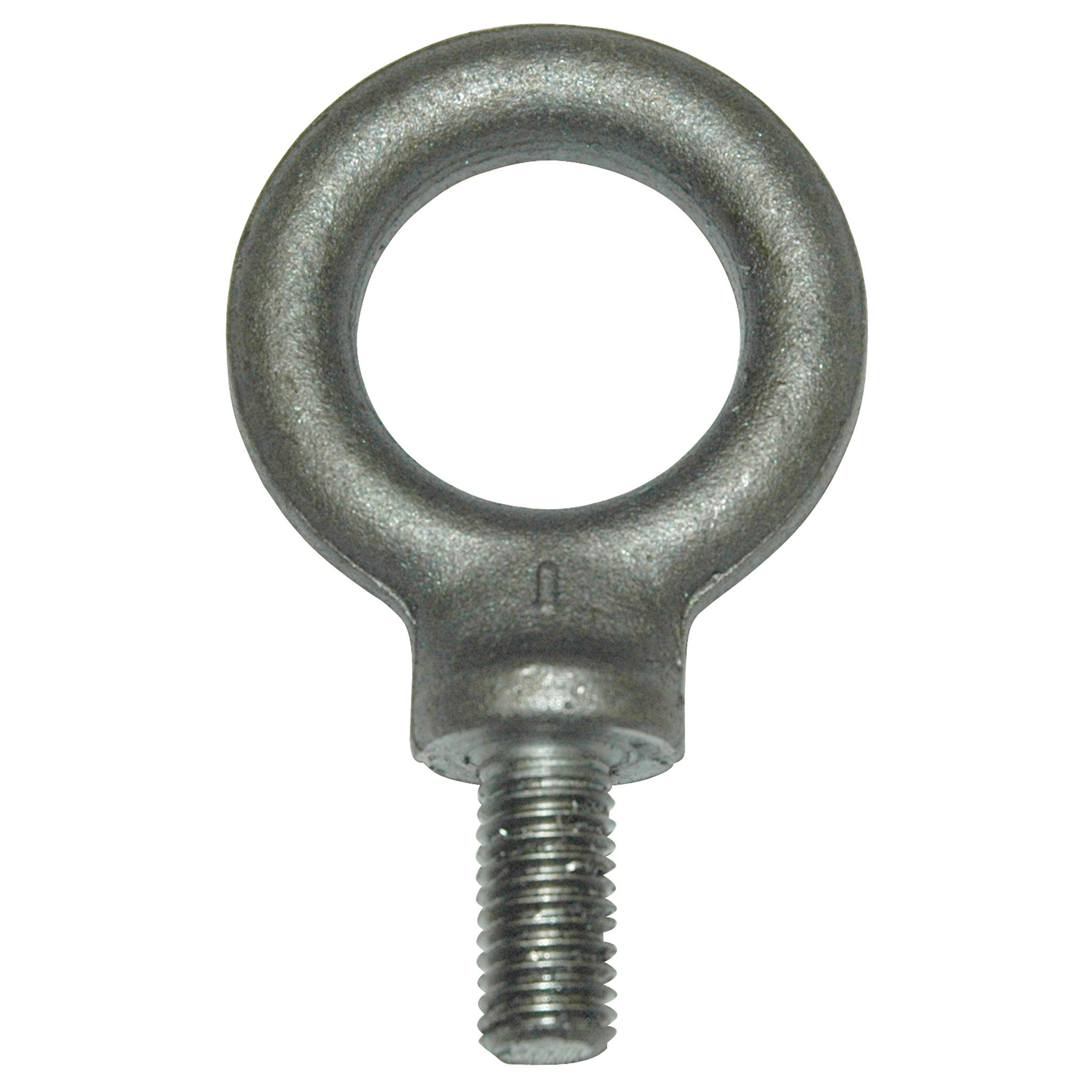

Eyebolt, 740 kg (1,631 lb.) Capacity, Metric, Shouldered, Forged Steel, M10 X 1.5 Thread Size
Part #
107521
$11.20
/ EACH
Product is returnable
Eyebolt, 740 kg (1,631 lb.) Capacity, Metric, Shouldered, Forged Steel, M10 x 1.5 Thread Size.
Product Features
- 20 mm (0.787") Shank Length
- 27 mm (1.063") Eye Inside Diameter
- 46.0 mm (1.811") Eye OD
- 30.9 mm (1.217") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
