Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115932. Bolt/Screw Size 1/2″-13
Item #
118055
$15.61
/ EACH

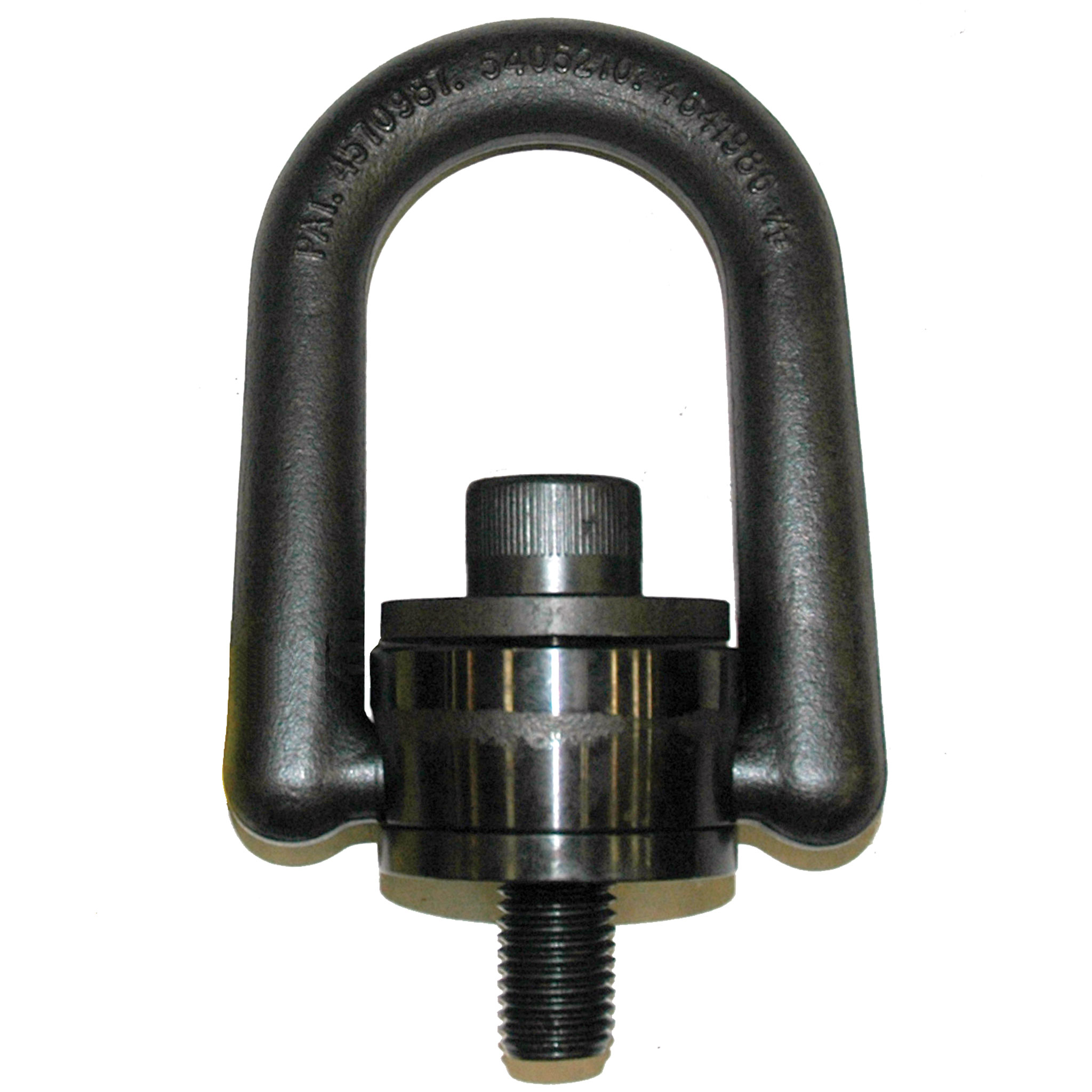

Hoist Ring, Metric Size, Rated Load: 4200 kg. M24 X 3.0 Thread Size, 38mm Thread Length
Item #
115966
Item is returnable
$181.78
/ EACH
Hoist Ring, Metric Size, Rated Load: 4200 kg. M24 x 3.0 Thread Size, 38mm Thread Length. ADB # 34103
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Metric
- Rated Load: 4,200 kg
- Thread Size: M24 x 3.0
- Thread Length: 38mm
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
Hoist Ring, Standard Size, Rated Load: 7000 lb. 3/4″-10 Thread Size, 1.20″ Thread Length
Item # 115941$181.78 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12 X 1-3/4 Thread Size, 32mm Thread Length
Item # 115950$80.38 / EACH -
$323.37 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115953. Bolt/Screw Size 5/8″-11
Item # 122841$17.61 / EACH -
Hoist Ring, Metric Size, Rated Load: 2200 kg. M20 X 2-1/2 Thread Size, 38mm Thread Length
Item # 115957$83.53 / EACH -
Hoist Ring, Standard Size, Rated Load: 30000 lb. 2″-4-1/2 Thd Size, 2.96″ Thd Length, 2″ Shank Dia
Item # 115958$636.59 / EACH -
Hoist Ring, Metric Size, Rated Load: 1900 kg. M16 X 2.0 Thread Size, 25mm Thread Length
Item # 115945$80.38 / EACH -
Hoist Ring, Metric Size, Rated Load: 11000 kg. M36 X 4.0 Thread Size, 67mm Thread Length
Item # 115959$323.37 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115957. Bolt/Screw Size M20X2.5
Item # 122810$34.18 / EACH -
Hoist Ring, Metric Size, Rated Load: 400 kg. M8 X 1.25 Thread Size, 21mm Thread Length. ADB # 34214
Item # 115948$66.33 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115935. Bolt/Screw Size 1″-8
Item # 122761$39.89 / EACH
