Description

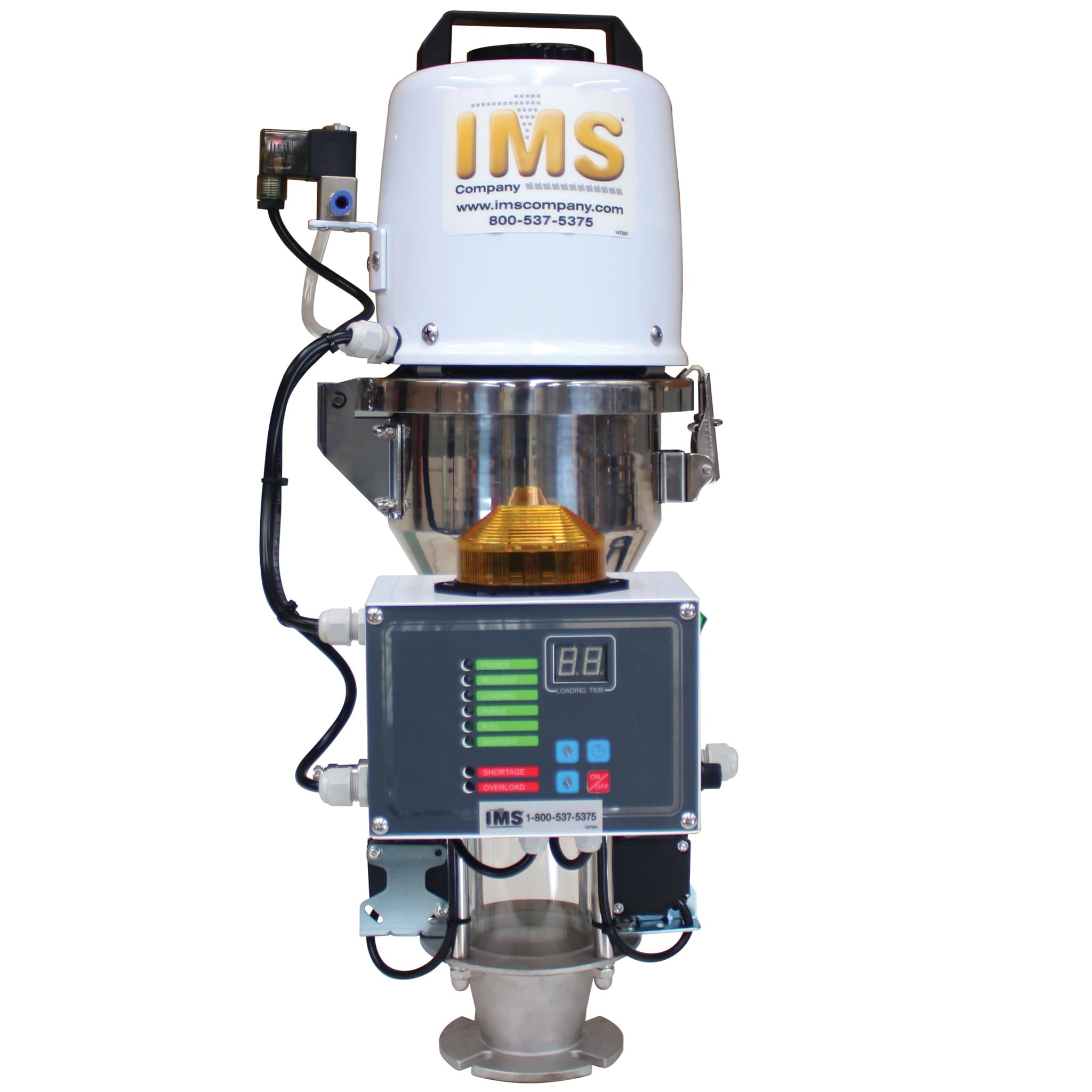

IMS Series Just-In-Time Material Loader, Model 200JT, Electric 1.4 hp Motor, Throat Mount Style With Sight Glass Tube & Photoelectric Level Sensor. 450 lb/hr Conveying Capacity (Material Dependent), Built In Automatic Self-Cleaning Filter With Attached Control Panel.
~Power: 115/60/1 Cord Length: 15ft
~Body/Wand Construction: Stainless Steel
~Hopper Capacity: 6.6 lb (3 Liters)
~Hopper Includes Discharge Flap
~Includes: 10′ Of 1-1/2″ ID GRounded Hose, Vacuum Wand, And (2) Hose Clamps
~Warranty: 2 Years
~Motor hp: 1.4
~Throughput Maximum: 450 lb/hr – 204 kg/hr
~Inlet Diameter: 1.5″
~Bolt Hole Pattern (4 Slots): 3.23″ Dia
~Inner Mounting Diameter: 2.25″ – 57mm
~Outer Mounting Diameter: 4.33″ – 110mm
~Depth: 12.2″ – 312mm
~Overall Height: 24.2″ – 615mm
~Weight: 28.6 lb. – 13kg
~Works With Proportioning Valve # 142842
