Description

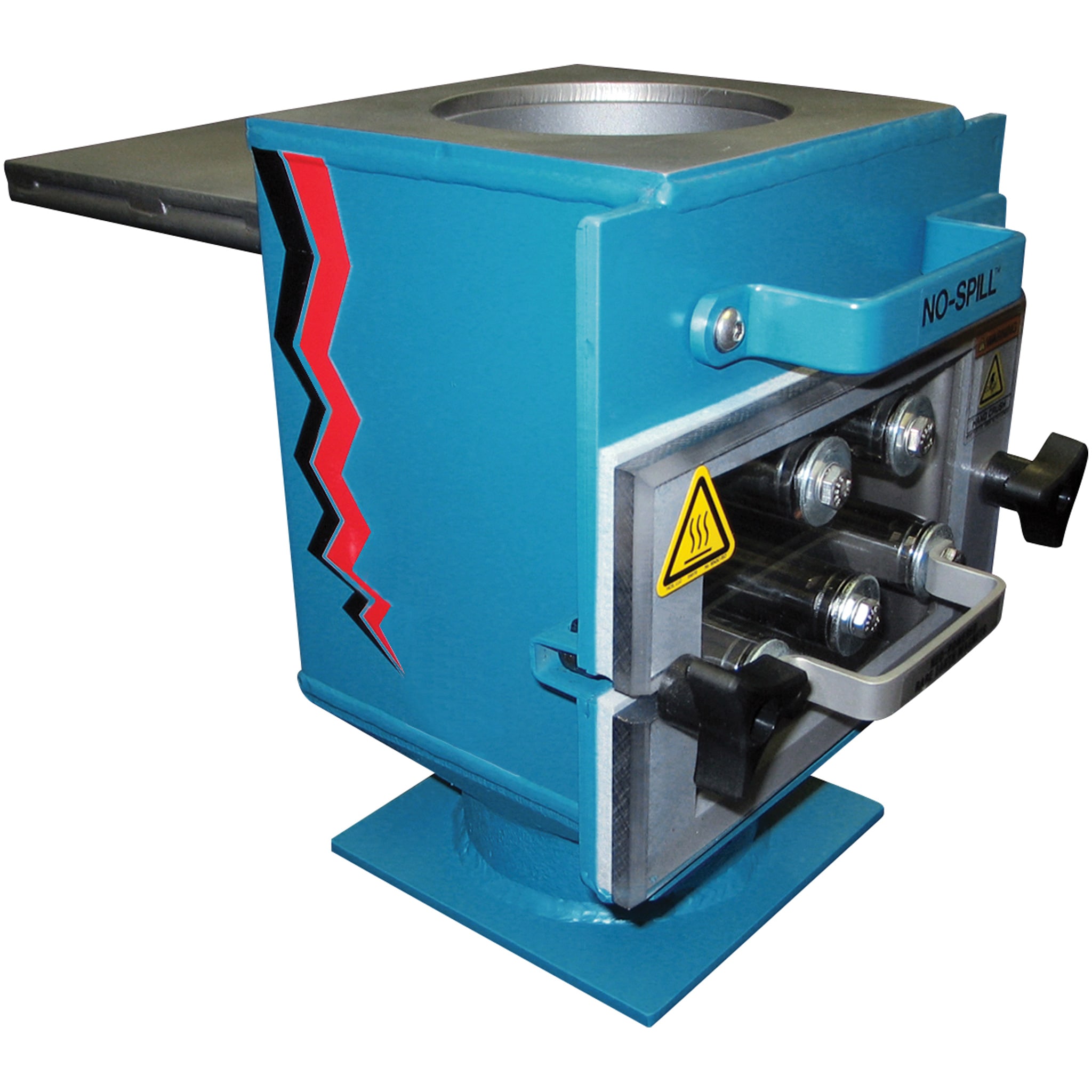

Customized Magnet Housing and Rare Earth Drawer Magnet, 6″ X 6″ Stainless Steel Square Housing with Customer Specified Mild Steel Top and Bottom Mounting Flanges. Includes “No-Spill”(Tm) Slide Gate. For Machines with 2″ to 4″ Feed Throat Openings.
** Requires Flange Form & Custom Part Number **
** Item Is Made To Your Specifications **
~Minimize Downtime: The slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
~180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
~5,000 Gauss Magnetic Strength
~Two rows of 25mm (1″) tubes optimize the magnetic circuit, ensuring free material flow
~6″ x 6″ Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
~Carbon Steel Flanges – 1/4” thickness
~EPDM Drawer Gasket resists heat aging
~Clear Polycarbonate Drawer Front allows easy viewing of materials
~High-torque Nylon Drawer Knobs
~Available Options: Purge Hopper, Rear Dump Tube, Liquid Color Port, 392°F High Temperature Magnets – Inquire
