Drawer Magnet 8″ x 8″ With Made to Order Flanges

Item # 133919

Item is not returnable

$1,343.00 / EACH

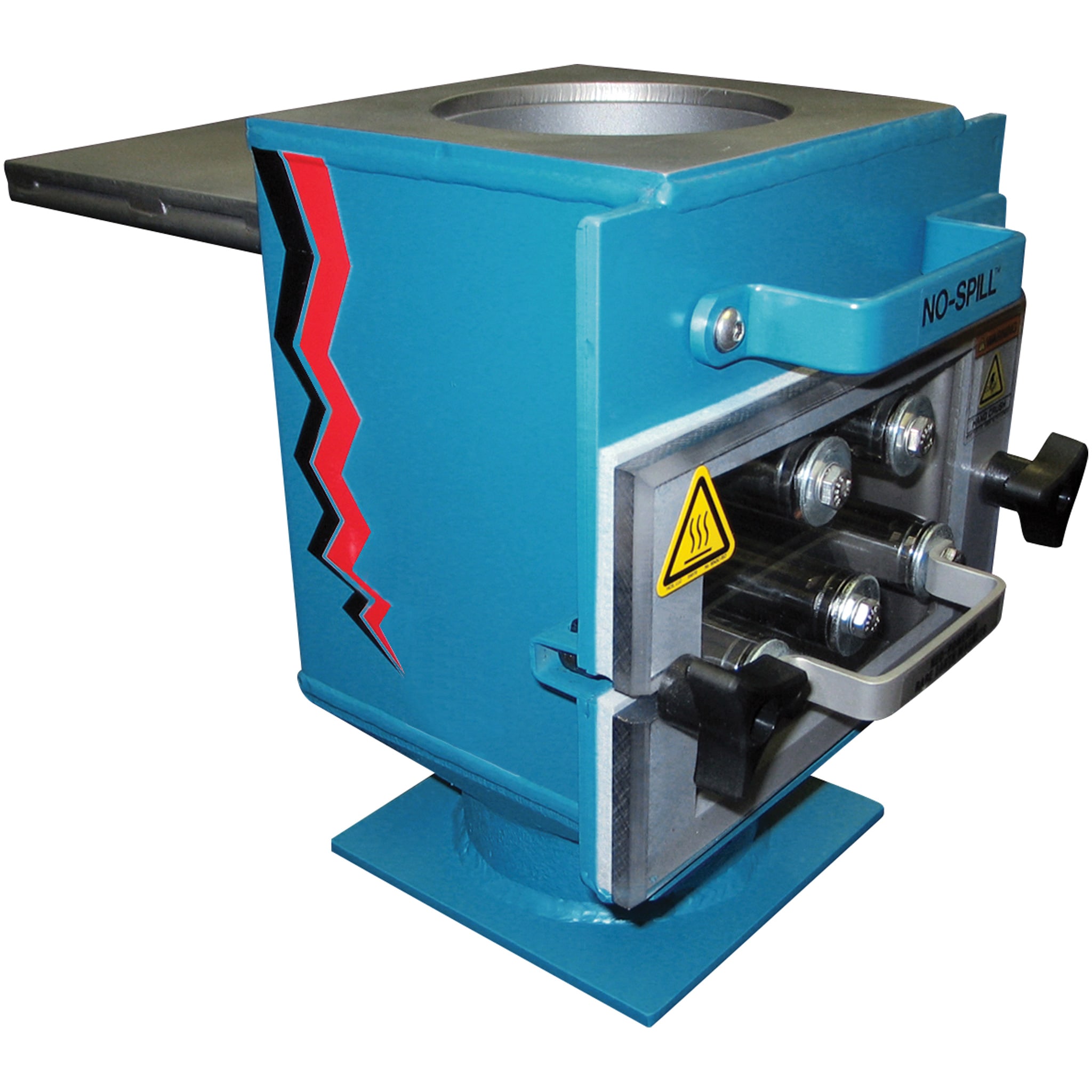

Customized Magnet Housing and Rare Earth Drawer Magnet, 6″ x 6″ Stainless Steel Square Housing with Customer Specified Mild Steel Top and Bottom Mounting Flanges. Includes “No-Spill”(TM) Slide Gate. for Machines with 2″ to 4” Feed Throat Openings.

Item Features

Minimize Downtime: the slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
5,000 Gauss Magnetic Strength
Two rows of 25mm (1") tubes optimize the magnetic circuit, ensuring free material flow
8" x 8" Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
Carbon Steel Flanges – 1/4" thickness
EPDM Drawer Gasket resists heat aging
Clear Polycarbonate Drawer Front allows easy viewing of materials
High-torque Nylon Drawer Knobs
Available Options: Purge Hopper, Rear Dump Tube, Liquid Color Port, 392°F High Temperature Magnets – Inquire
