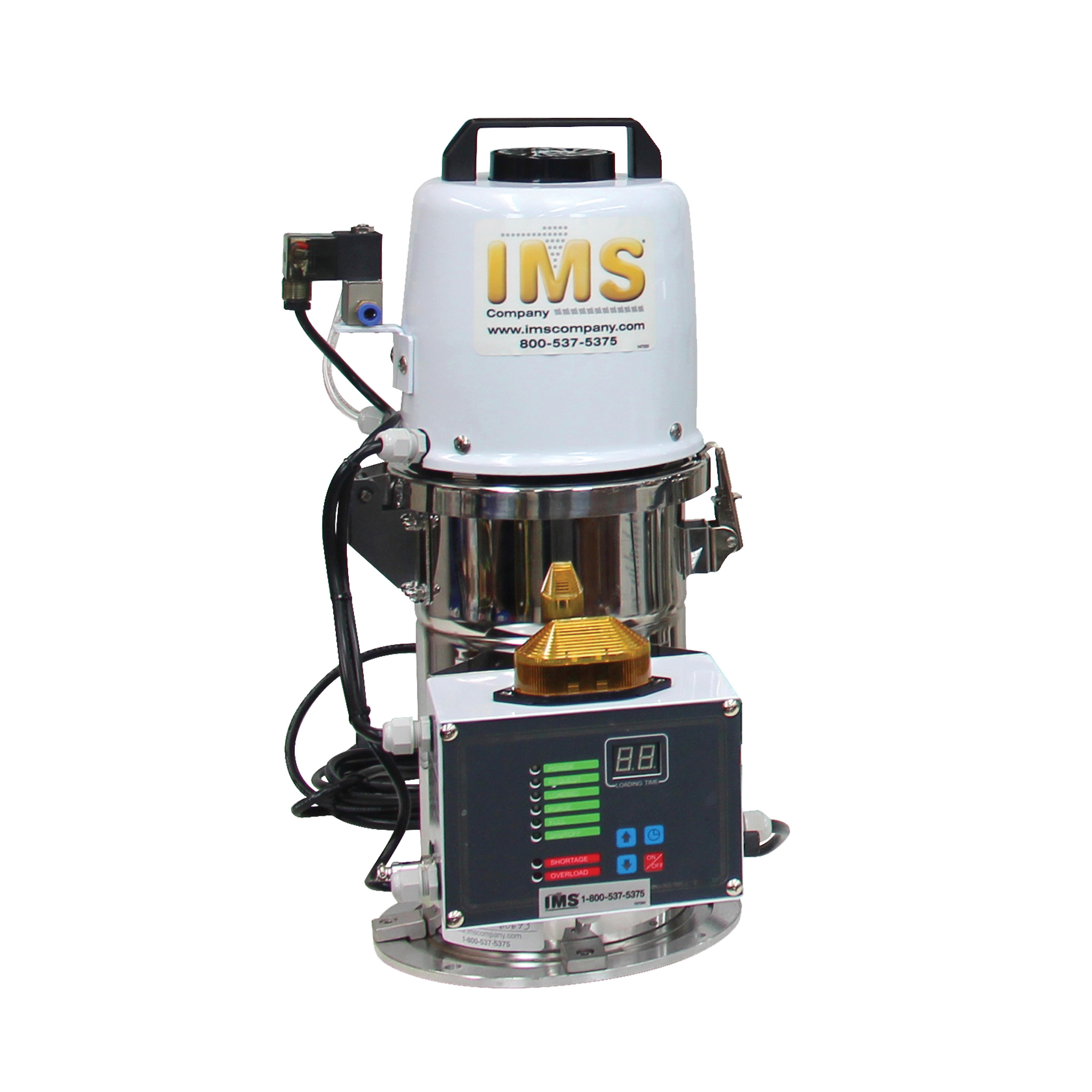

IMS Series Material Loader, Model 200, Electric 1.4 hp Motor, Hopper Mount Style, 450 lb/hr
Part #
137121
$1,005.00
/ EACH
Product is returnable
IMS Series Material Loader, Model 200, Electric 1.4 hp Motor, Hopper Mount Style, 450 lb/hr Conveying Capacity (Material Dependent), Built in Automatic Self-Cleaning Filter with Attached Control Panel.
Product Features
- Power: 115/60/1 Cord Length: 15ft
- Body/Wand Construction: Stainless Steel
- Hopper Capacity: 6.6 lb (3 Liters)
- Includes: 10' of 1-1/2" Inside Diameter Grounded Hose, Vacuum Wand, and (2) Hose Clamps
- Warranty: 2 Years
- Motor hp: 1.4
- Throughput Maximum: 450 lb/hr – 204 kg/hr
- Inlet Diameter: 1.5"
- Bolt Hole Pattern (8 Holes): 8.42" Diameter
- Inner Mounting Diameter: 6.83" – 174mm
- Outer Mounting Diameter: 9.25" – 235mm
- Depth: 13.5" – 334mm
- Overall Height: 19.6" – 500mm
- Weight: 26.45 lb. – 12 kg
- Works with Proportioning Valve # 142842
