Description

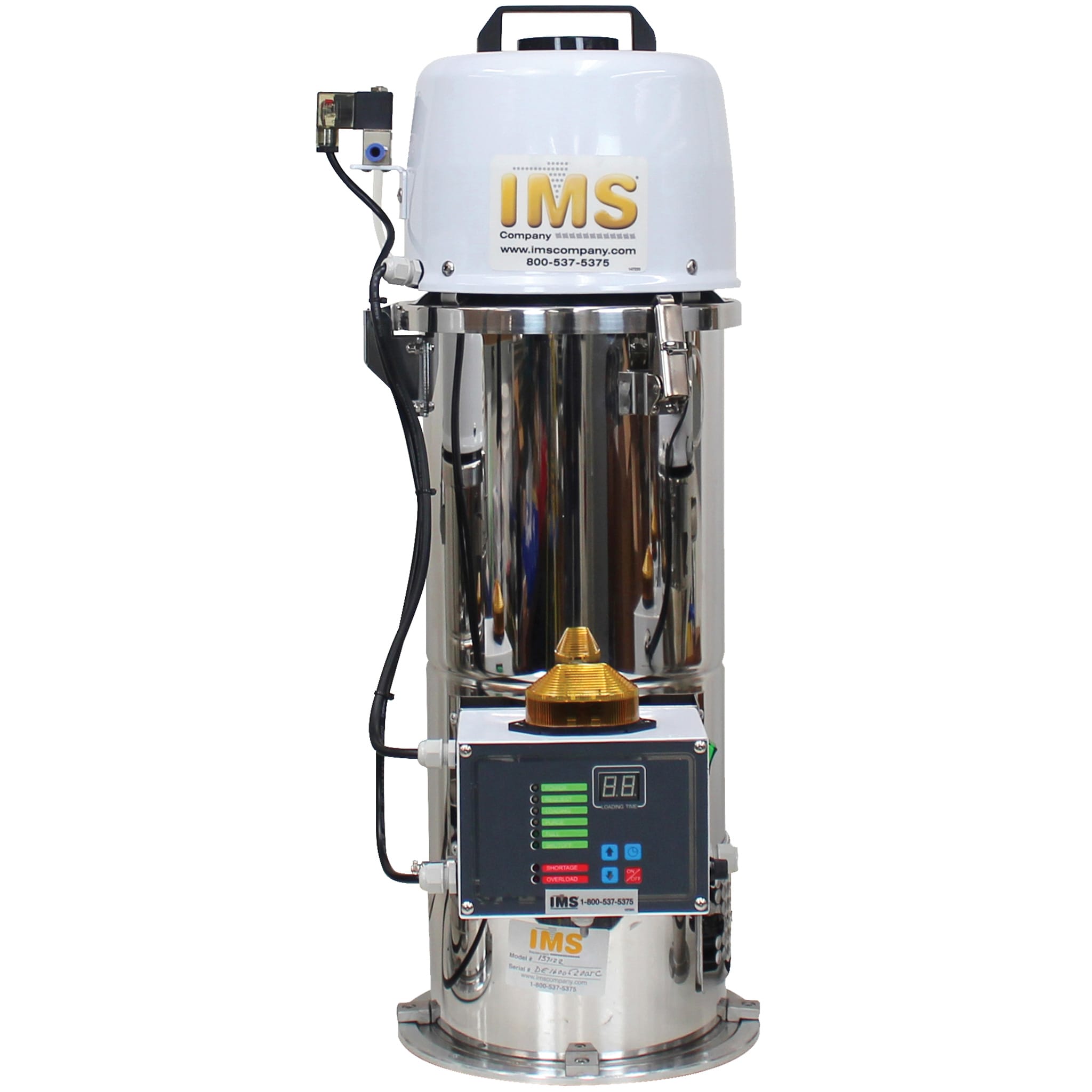

IMS Series Material Loader, Model 800, Electric 1.4 hp Motor, Hopper Mount Style, 900 lb/hr Conveying Capacity (Material Dependant), Built In Automatic Self-Cleaning Filter With Attached Control Panel.
~Power: 115/60/1 Cord Length: 15ft
~Body/Wand Construction: Stainless Steel
~Hopper Capacity: 26.4 lb (12 Liters)
~Includes: 10′ Of 1-1/2″ ID GRounded Hose, Vacuum Wand, And (2) Hose Clamps
~Warranty: 2 Years
~Motor hp: 1.4
~Throughput Maximum: 900 lb/hr – 408 kg/hr
~Inlet Diameter: 1.5″
~Bolt Hole Pattern (8 Holes): 10.43″ Dia
~Inner Mounting Diameter: 9.19″ – 233mm
~Outer Mounting Diameter: 11.22″ – 285mm
~Depth: 13.6″ – 347mm
~Overall Height: 29.7″ – 755mm
~Weight: 33.0 lb. – 15kg
~Works With Proportioning Valve # 142842
