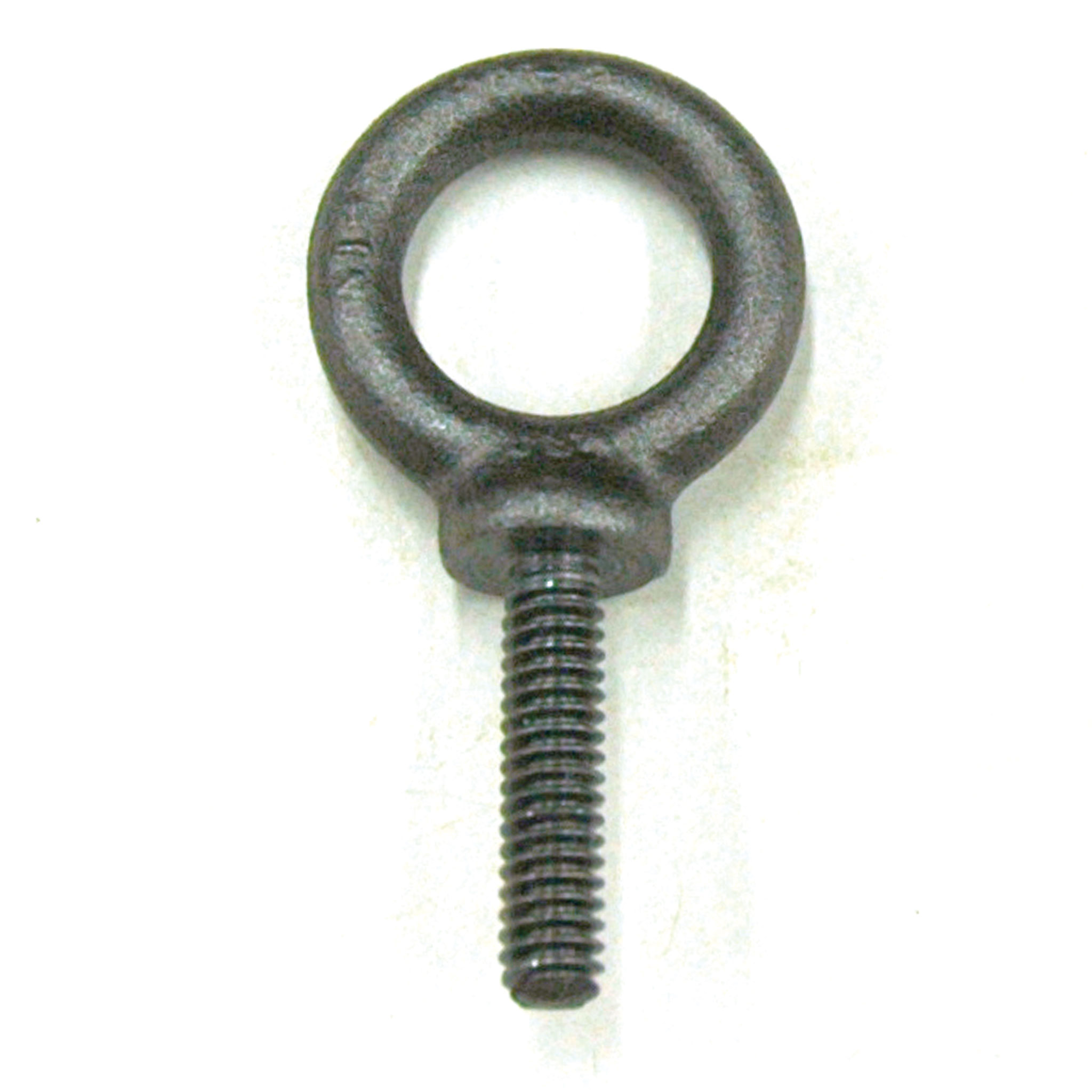

Eyebolt, 500 lb. Capacity, Standard, Shouldered, Forged Steel, 1/4″-20 Thread Size
Part #
142214
$2.69
/ EACH
Product is returnable
Eyebolt, 500 lb. Capacity, Standard, Shouldered, Forged Steel, 1/4″-20 Thread Size.
Product Features
- 1" Shank Length
- 3/4" Eye Inside Diameter
- 1-3/16" Eye OD
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
