Battery, 3.6 Volt for Tracer Electronic Flowmeters
Item #
143577
$32.00
/ EACH

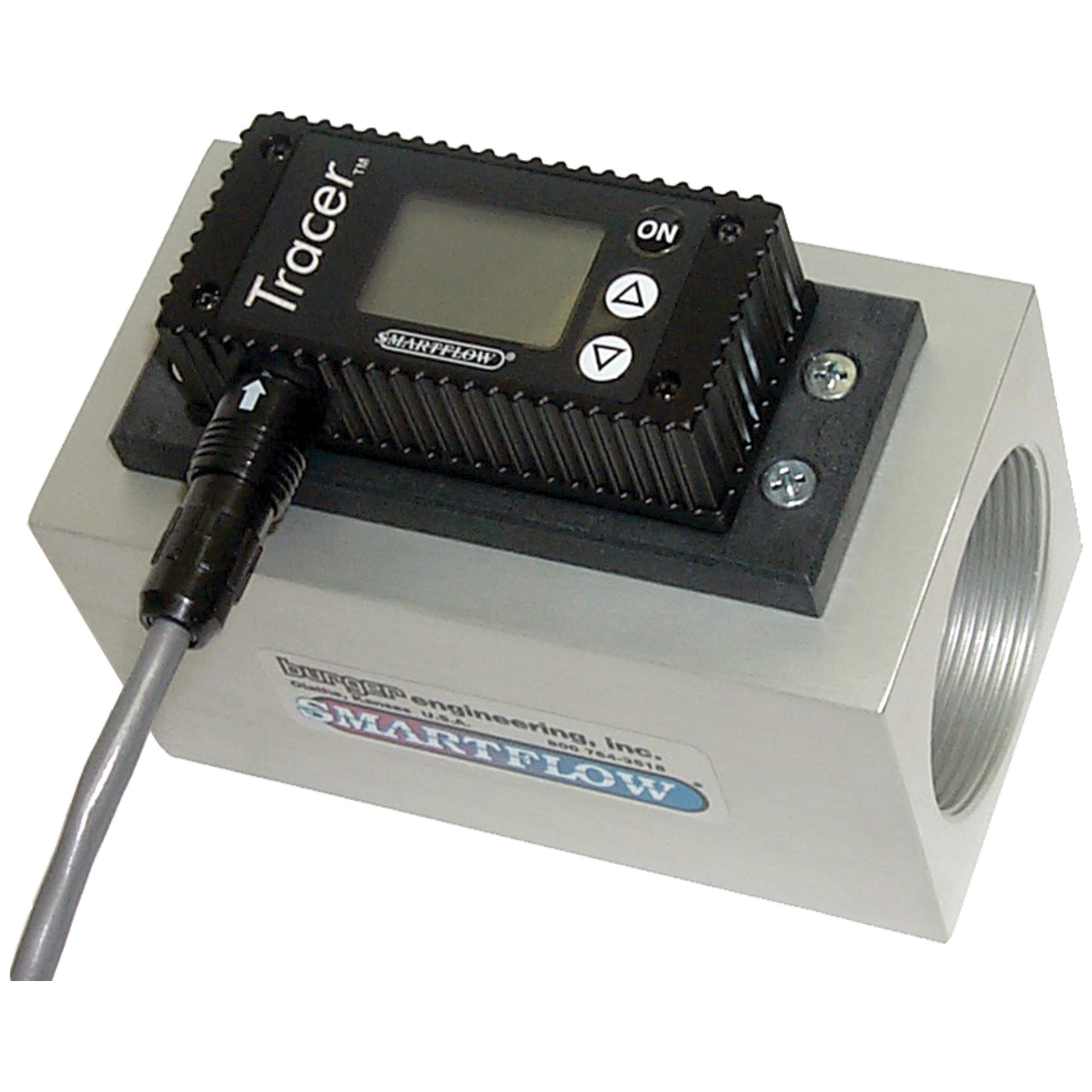

Flowmeter, Electronic Switching Tracer 2″ NPT, 10 to 110 gpm Range.
Item #
143548
Item is returnable
$1,053.00
/ EACH
Flowmeter, Electronic Switching Tracer 2″ NPT, Meter Measures Flow, Temperature, Btu, & Turbulent Flow, 10 to 110 gpm Range, Includes 16′ Long 9-Pin Cord.
SMARTFLOW DDS-16B
Item Features
- Temp Range: 32 to 180 F
- Temp Accuracy: +/- 2%
- Flow Range: 10 to 110 gpm
- Flow Accuracy: +/- 5%
- Max Pressure: 100 psi
- Signal Output: 0-5 or 0-10 V
- Material Body: Clear Anodized Aluminum
- Display: Tenths of Degree (F or C)
- Control: Sealed Push Buttons
- Power Source: 8 to 28 VDC
- Dimensions: 5.50"L x 4.65"H x 3.00" W
Item Documents
- Item Catalog Page 351
-
-
Sticker Overlay for Tracer Flowmeters
Item # 161386Request Quote/Call for Price -
$15.00 / EACH -
$838.00 / EACH -
Flowmeter, Tracer Electronic, 3/8″ NPT, 0.5 to 8 gpm, Nickel Plated Brass Body, with QD’s
Item # 143544$675.00 / EACH -
Cable Assembly Only, for Tracer VM Electroni
Item # 168631$125.00 / EACH -
$1,053.00 / EACH -
$658.00 / EACH
