Mold Temperature Regulator, 80-120 Deg F, Inlet with 3/8″ QD Socket, Outlet with 1/4″ QD Plug
Item #
143574
$505.00
/ EACH

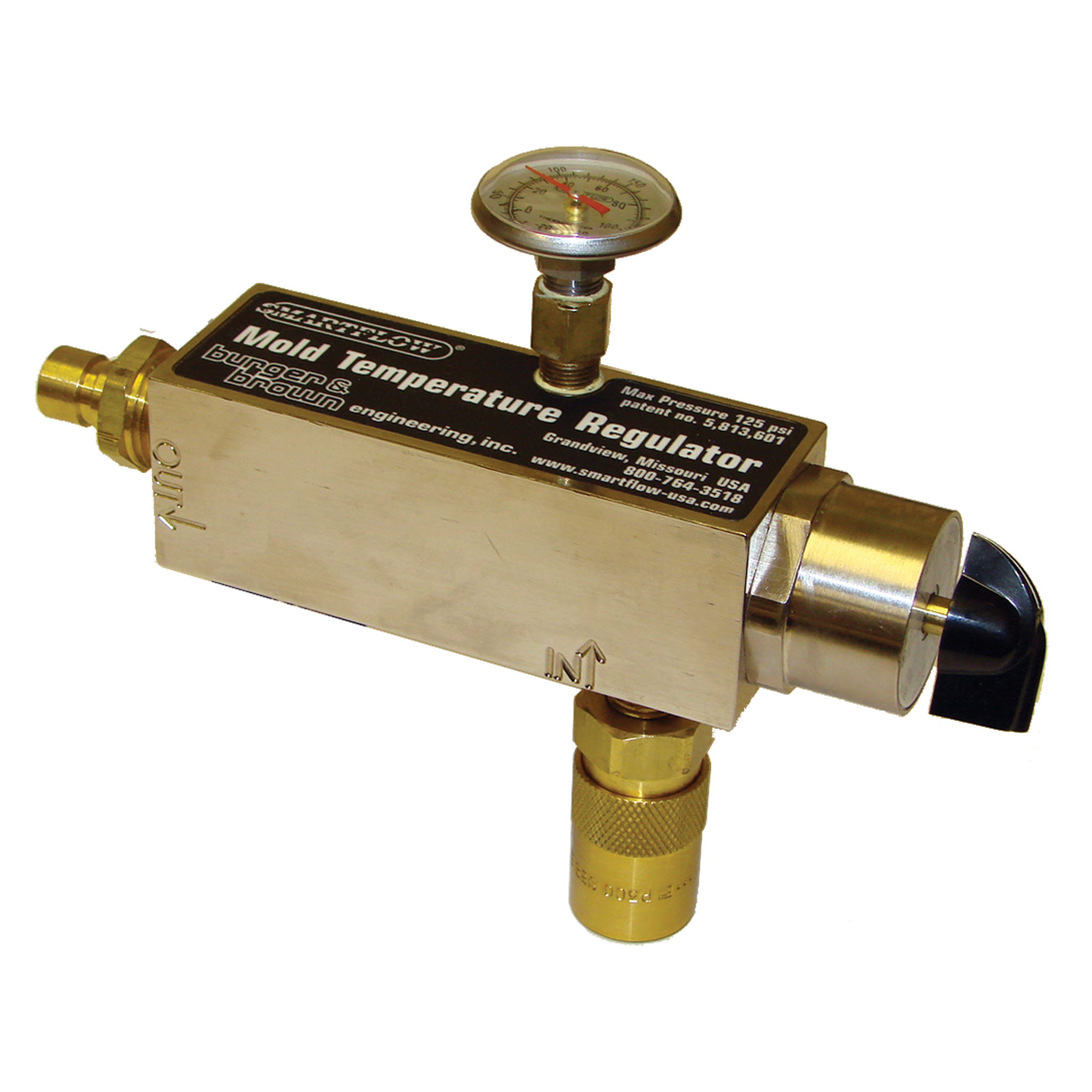

Mold Temperature Regulator, 80-120 Deg F, Inlet with 1/4″ QD Socket, Outlet with 1/4″ QD Plug
Item #
143573
Item is returnable
$505.00
/ EACH
Mold Temperature Regulator, 80-120 Degree F, Inlet with 1/4″ Quick Disconnect Socket, Outlet with 1/4″ Quick Disconnect Plug.
Works on Principles of Thermal Expansion
SMARTFLOW WDT2-S2-P2
Item Features
- US Patent No#: 5,813,601
- Max Temperature: 240 F
- Max Pressure: 125 psi
- Cooling Water Set Point: 80 to 120 F
- Cooling Set Point Accuracy: +/- 1%
- Dial Thermometer: 0 to 250 F
- Dial Accuracy: +/- 2% Full Scale
- Material: Nickle Plated Brass, 303 Stainless
- Material O-Rings: Buna-N
- Dimensions: 6.00" L x 1.50" W x 2.95" H
- Weight: 3 lb
- Fewer Working Parts Means Longer Life
- No Electricity Means Energy Savings
- Better Temp Control Means Better Product
Item Documents
- Item Catalog Page 333
-
-
$178.00 / EACH -
$178.00 / EACH
-
Flow Regulator, Brass, 3/8″ NPT Inlet, 3/8″ NPT Outlet, 2.5 gpm, with Temperature Gauge.
Item # 143965$211.00 / EACH -
Flow Regulator, Brass, 1/2″ NPT Inlet, 3/8″ NPT Outlet, 8.0 gpm, with Temperature Gauge
Item # 143969$211.00 / EACH -
$178.00 / EACH
-
Flow Regulator, Brass, 1/4″ NPT Inlet, 3/8″ NPT Outlet, 30 lpm, with Temperature Gauge
Item # 143973$211.00 / EACH -
$185.00 / EACH
-
$185.00 / EACH
-
Mold Temperature Regulator, 80-120 Deg F, 1/4″ NPT Inlet and 1/2″ NPT Outlet, with Manifold
Item # 143575$602.00 / EACH -
$178.00 / EACH
-
Flow Regulator, Brass, 3/8″ NPT Inlet, 3/8″ NPT Outlet, 30 lpm, with Temperature Gauge
Item # 143974$211.00 / EACH
