$113.00
/ EACH

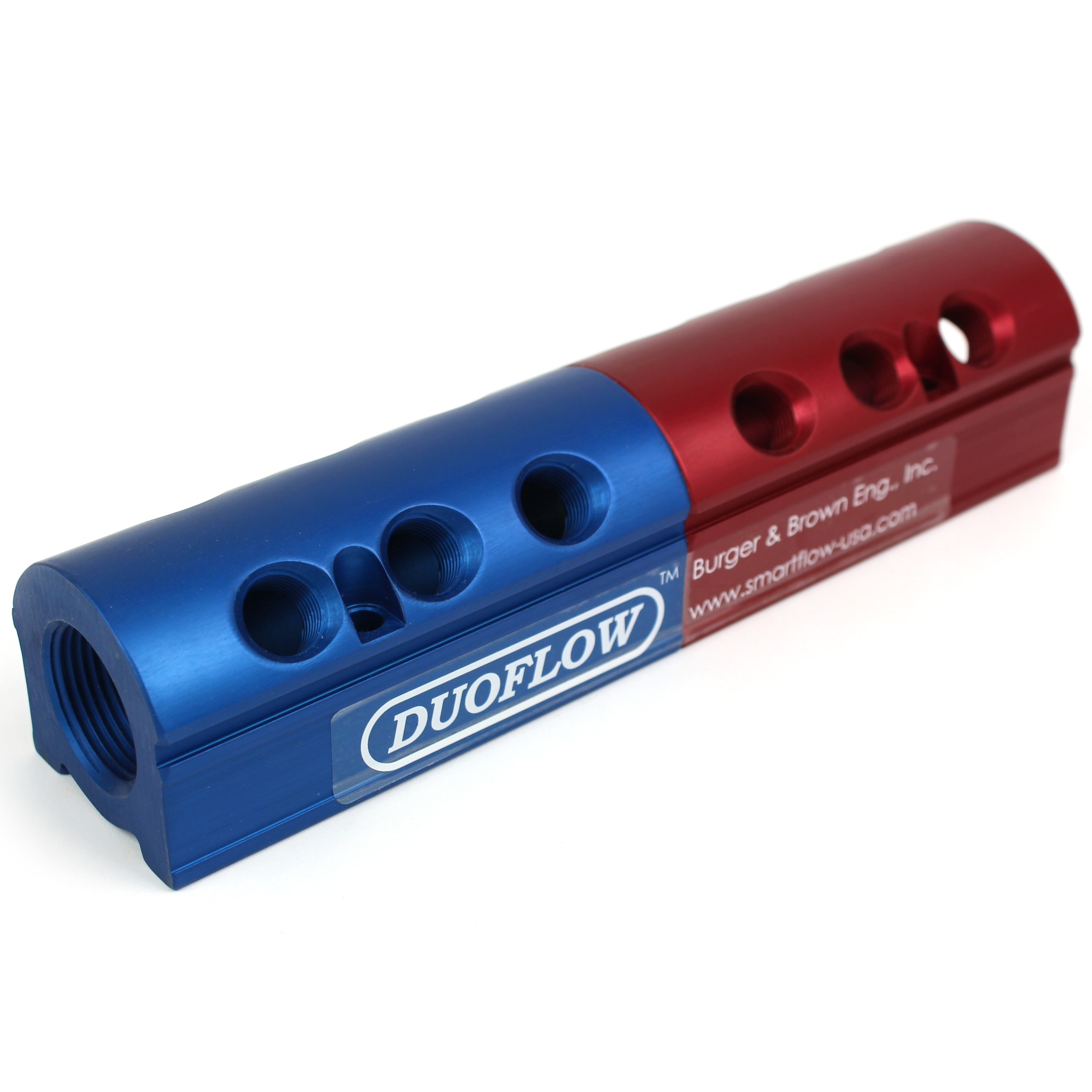

Manifold, Aluminum, Duoflow, (2) 1″ Inlets and (12) 3/8″ Ports
Item #
149540
Item is returnable
$175.00
/ EACH
Manifold, Aluminum, Duoflow, (2) 1″ Inlets and (12) 3/8″ Ports, 6 Ports Blue to Denote Supply End and 6 Ports Red for Return End, Divided Internally, Split Bulkhead Design.
SMARTFLOW 8SDA-12-3-13-AYZ
- Max Temp: 210 F
- Max Pressure: 150 psi
- Material: Anodized Aluminum
- Overall Length: 9-3/4" (248mm)
- Divider: Stainless Steel
- O-Ring: EPDM
- Mold-Mount to Speed Mold Changes
- Not recommended with ball valves due to narrow port spacing
- Style: Split (Bulkhead)
- Inlet Size NPT: 1"
- Number of Ports: 6 in / 6 out
- Port Size NPT: 3/8"
- Material: Anodized Aluminum, Red and Blue
Item Documents
- Item Catalog Page 359
-
-
$113.00 / EACH -
$186.00 / EACH -
$94.00 / EACH -
Manifold, Water, Steel, ST Series (2) 3/4″ NPT Inlet/Outlet, (4) 1/2″ NPT Ports, 11-1/2″ OAL
Item # 120716$138.41 / EACH -
Manifold, Water, Steel, ST Series (2) 3/4″ NPT Inlet/Outlet, (8) 1/2″ NPT Ports, 21-1/4″ OAL
Item # 120751Request Quote/Call for Price -
Manifold, Water, Stainless Steel, ST Series (2) 3/4″ Inlet/Outlet, (6) 1/2″ NPT Ports 19-1/4″ OAL
Item # 105416$247.99 / EACH -
$181.00 / EACH -
$237.00 / EACH -
Manifold, Water, Stainless Steel, ST Series (2) 1-1/4″ Inlet/Outlet, (8) 1/2″ NPT Ports 24″ Body Length
Item # 160224$315.61 / EACH -
Manifold Riser Kit, for Tandem Mount
Item # 101210$33.30 / EACH -
Manifold, Water, Stainless Steel, ST Series (2) 3/4″ Inlet/Outlet, (4) 1/2″ NPT Ports 13-1/4″ OAL
Item # 105529$218.44 / EACH
