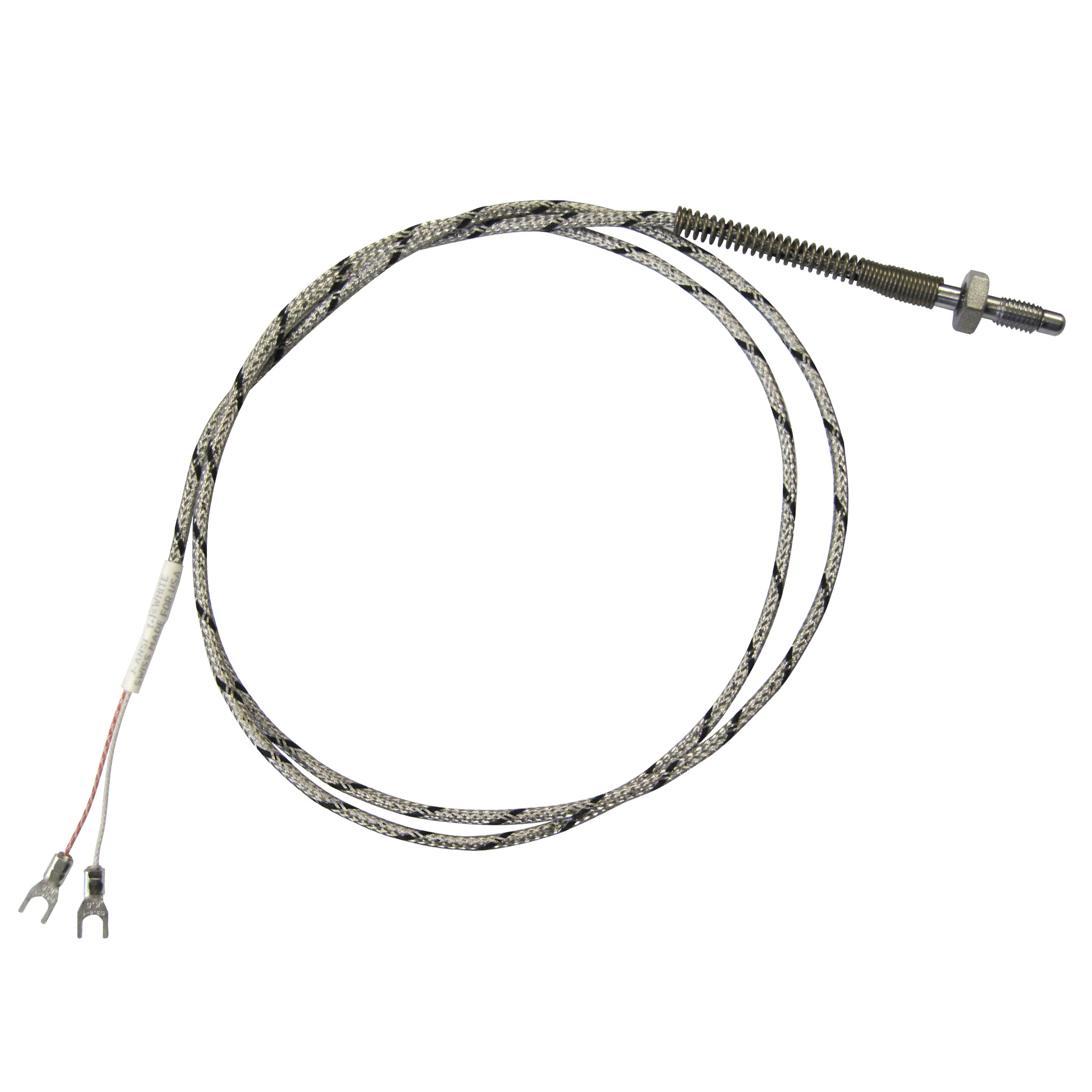

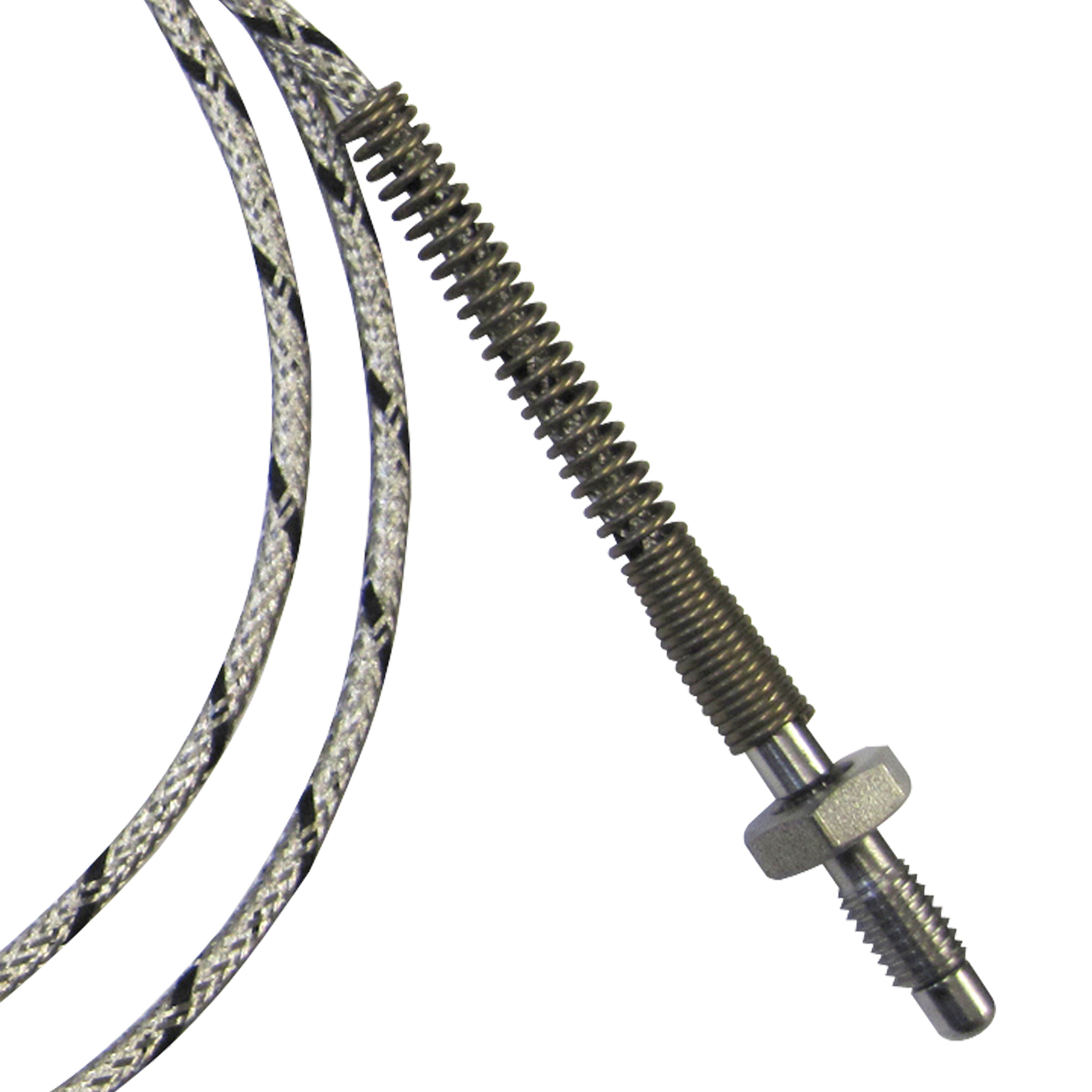

Thermocouple, Ungrounded, Fixed Depth,Type K

Item # 159862

Item is returnable

$43.70 / EACH

Thermocouple, Nozzle/Bolt Type, Type K, Ungrounded, 1/4″-28 UNF Thread, 3/16″ Tip OD, 96″ Stainless Steel Braided Reinforced Flex Leads with Spade Lugs, Heavy Duty Strain Relief, 7/16″ Hex Fitting, Stranded Wire.

Thermocouple Tolerance Accy: EN60584/IEC584 Class 1
Max. Operating Temp: 842F (450C)
Required Hole Depth: Minimum 1/4"
Lead Wire: Kapton Coated Fiberglass with Stainless Steel Overbraid
Optimized Tip Shape for Max Heat Transfer
Made in Switzerland

Item Documents

Item Catalog Page 217
