Metal Separator, 70mm OD Feed Opening
Part #
161776
$7,275.00
/ EACH
Product is not returnable

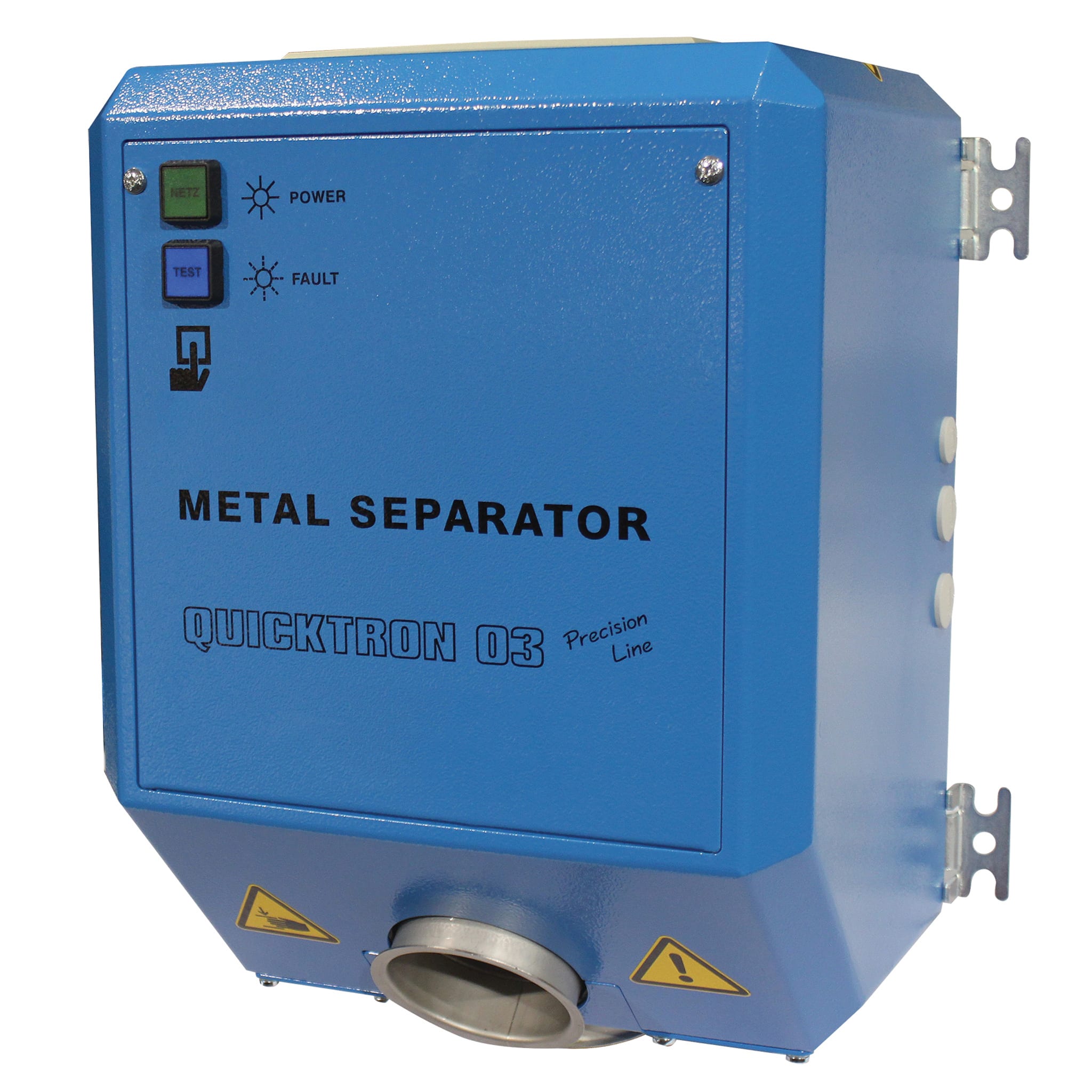

Metal Separator, Frame Mounted 2-3/4″ (70mm) OD Feed Opening, 3-1/8″ (80mm) Reject Port Diameter Anti-Static Sensing Tube, Self Monitoring Detection Unit with Auto-Test Button Standard 100 – 240V AC, 50/60 Hz
Product Features
- Powder Coated Housing
- Flap Position Monitor
- Air Pressure Monitor
- Sensitivity: 0.6mm
- Throughput: 6,000 lb/hr
- Reject Duration: 0.14 to 19 Seconds
- Dimensions: 16-1/2"H x 13"W x 9-7/8"D
- Weight: 44lb
