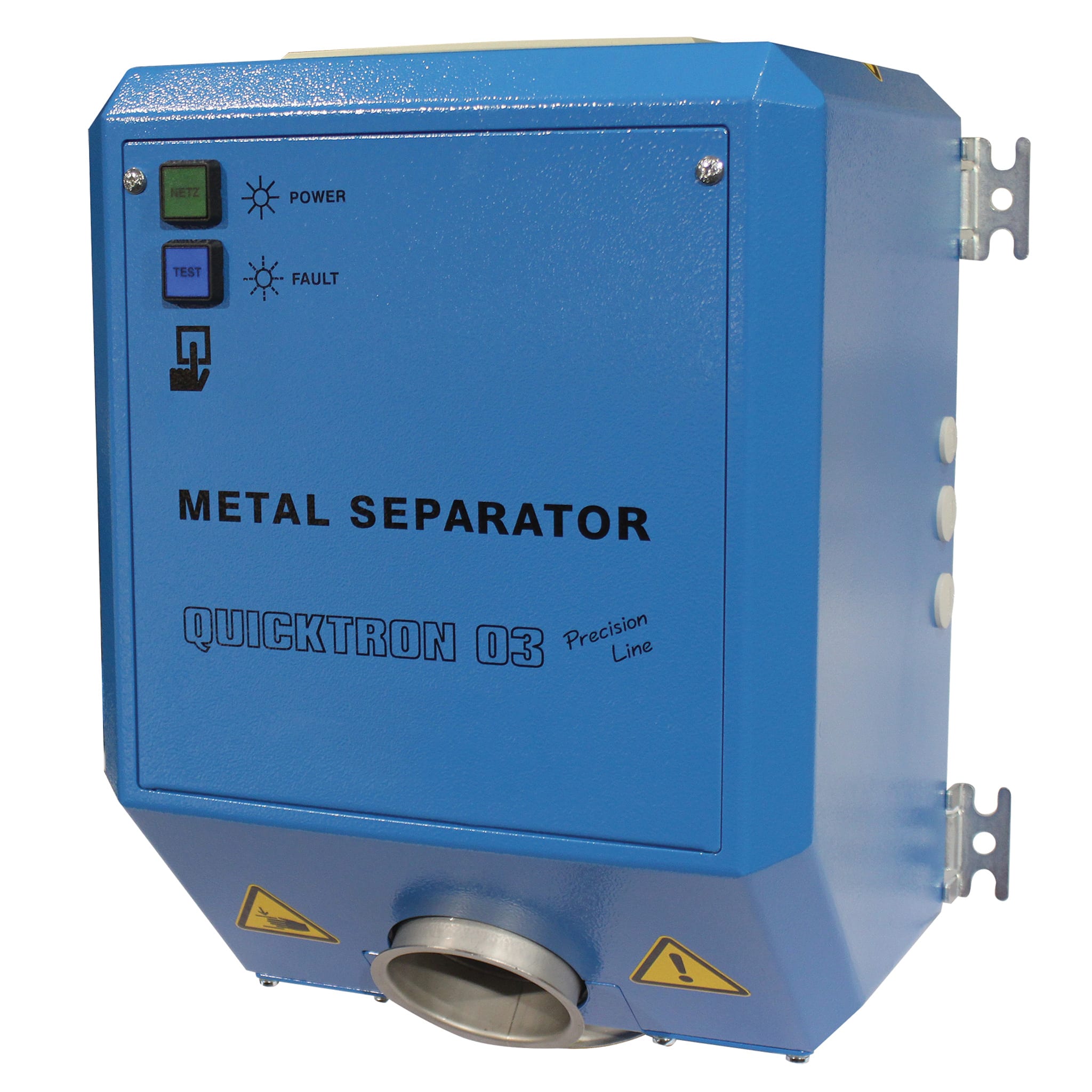

Metal Separator, 80mm OD Feed Opening
Part #
161777
$8,755.00
/ EACH
Product is not returnable
Metal Separator, Frame Mounted 3-1/8″ (80mm) OD Feed Opening, 3-1/8″ (80mm) Reject Port Diameter Anti-Static Sensing Tube, Self Monitoring Detection Unit with Auto-Test Button Standard 100 – 240V AC, 50/60 Hz
Product Features
- Powder Coated Housing
- Flap Position Monitor
- Air Pressure Monitor
- Sensitivity: 0.7mm
- Throughput: 7,500 lb/hr
- Reject Duration: 0.14 to 19 Seconds
- Dimensions: 22-3/4"H x 16-7/8"W x 13"D
- Weight: 70lb
