$6,415.00
/ EACH

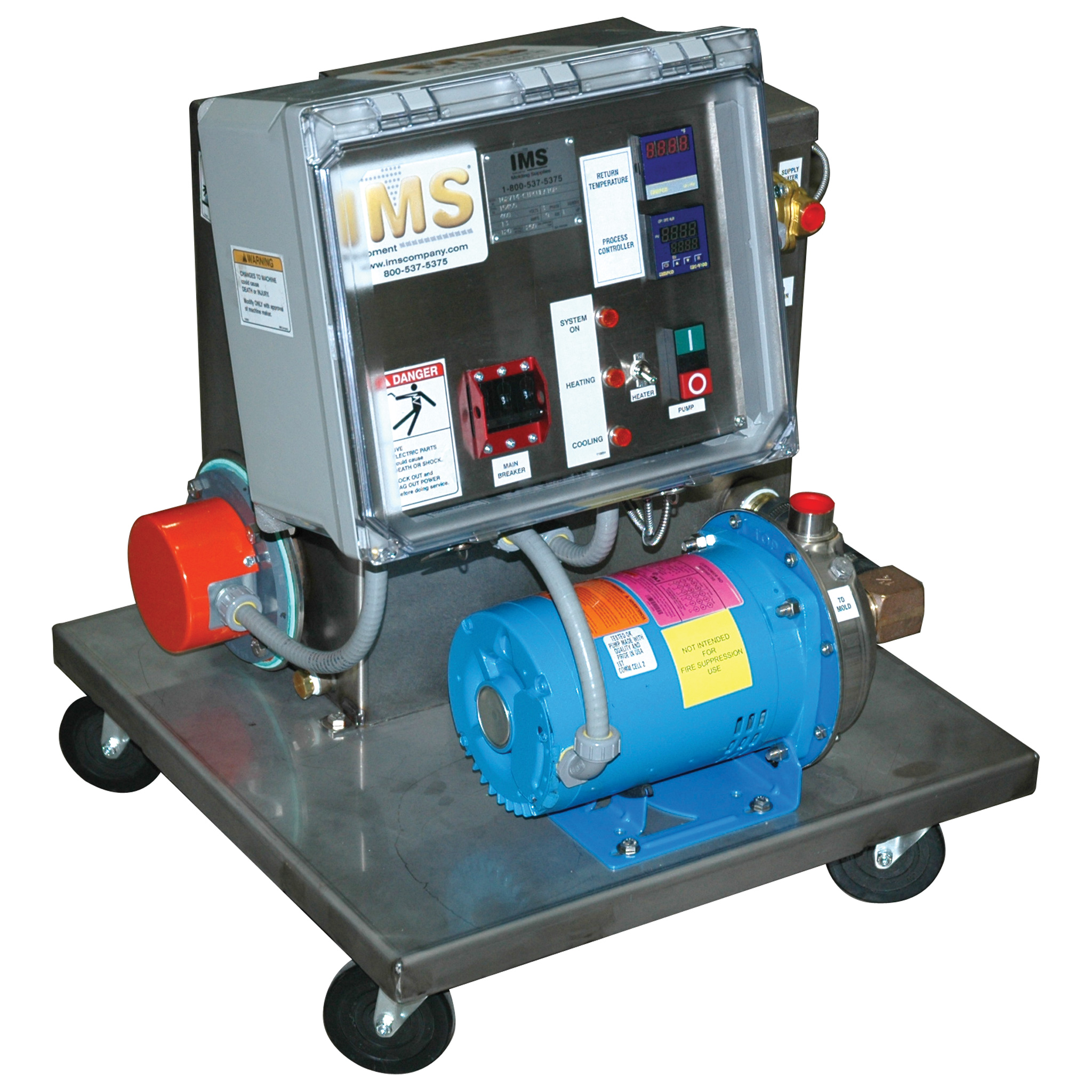

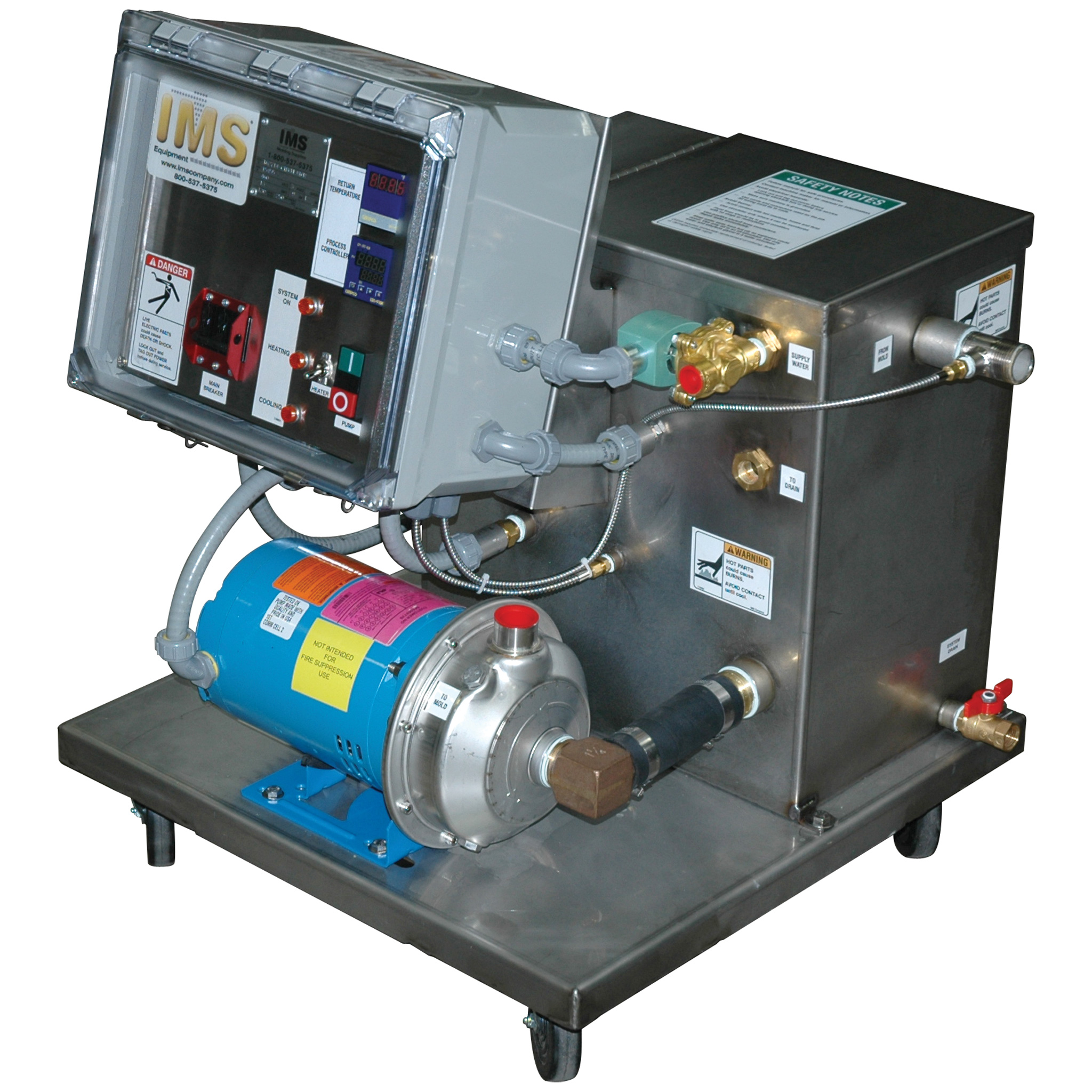

Circulator, Water, Hydra MC90WC, 9kW, 230/60/3
Item #
162713
Item is not returnable
Request Quote/Call for Price
Mold Circulator, Water Cooled, Hydra Model MC90WC, 230/60/3 Volt, 250 Degree F Max, 1 hp Stainless Steel Pump, Stainless Steel Tank, Liquid Level Low Fluid Electrical Shut Off Switch.
- 21.7 Full Load Amps
- Range +/- 10 Degrees Ambient Air to 250 F
- Accuracy +/- 1 Degree F
- 30 gpm at 38 psi
- 9 kW Flanged Heater
- 14 Gallon Tank Capacity
- 1" NPT Output to Mold
- 1" NPT Return from Mold
- Size: 24" L x 24" W x 28-1/2" H
- Shipping Weight: 161 lb
- Circulator Type: Water Circulating
- Style: Tank Style, Closed Loop, Water Cooled
- Max Temp (Deg F): 250°
- Voltage: 230/60/3
- Pump hp: 1
- Flow Rate (GPM): 30
Item Documents
- Item Catalog Page 737
- Item Manual
-
-
