Melt Pressure Transmitter, 4-20 mA, 6” Stem with 18” Flex Hose, 0-3,000 psi, Type J Thermocouple
Item #
174925
$1,080.00
/ EACH

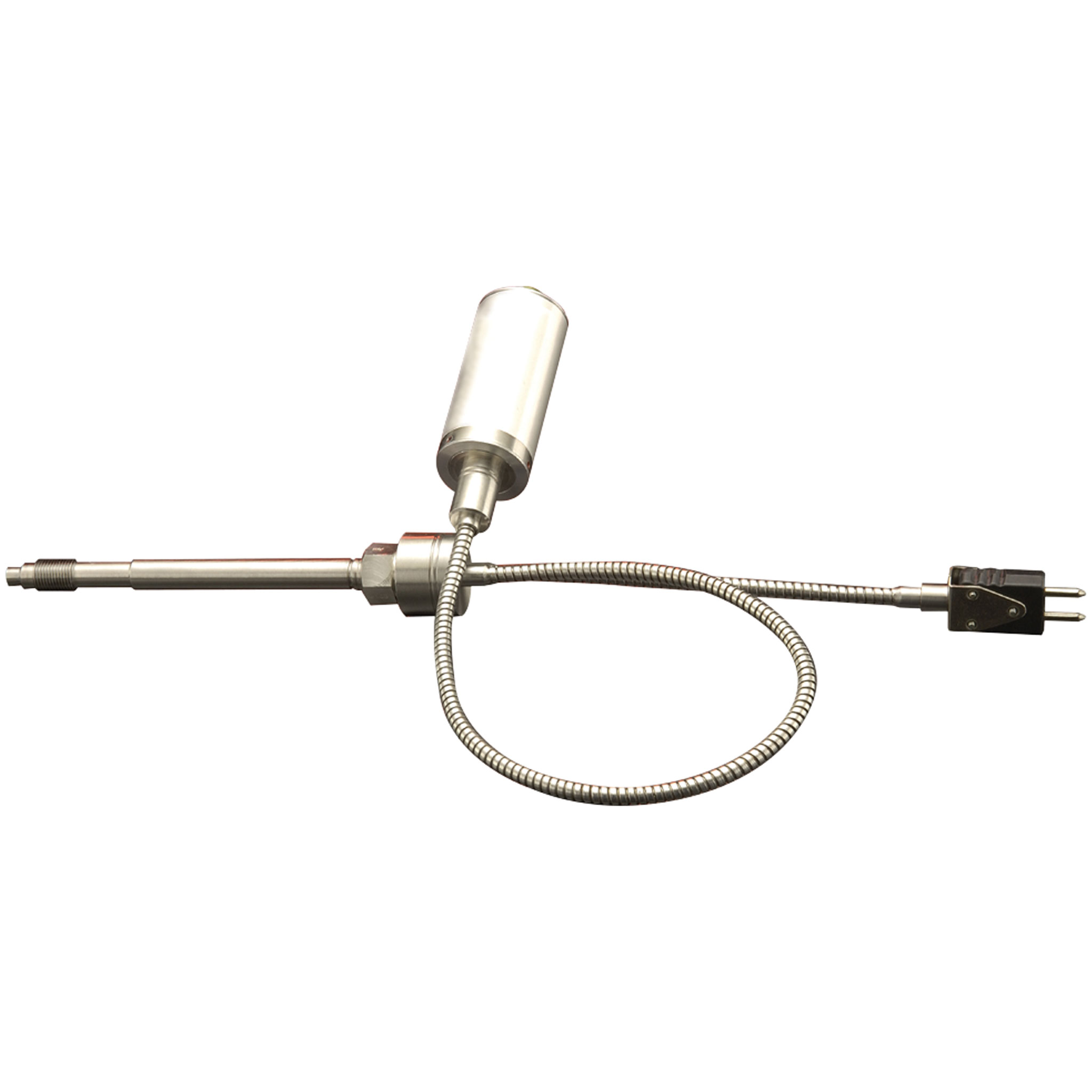

Melt Pressure Transmitter, 4-20 mA, 6” Stem with 18” Flex Hose, 0-10,000 psi, Type J Thermocouple
Item #
174928
Item is returnable
$1,030.00
/ EACH
Melt Pressure Transmitter, 4-20 mA, Classic Style, 6” Stem with 18” Flex Hose Capillary, Pressure Range: 0-10,000 psi, Type J Thermocouple, NaK Filled Capillary (Mercury Free) for High Temperature Stability.
- Mounting: 1/2"-20 UNF Thread
- Diaphragm Material: Inconel
- Max Temp: Diaphragm 1000 F, Electronics 250 F
- Max Error: 1% of Full Scale
- Repeatability: +/- 0.2%
- Accuracy: 0.5%
- Calibration: 80% of Full Scale Output
- Overload Capacity: 2 Times Full Scale Output
- Measuring Sensor: 350 ohm Wheatstone Bridge
- Connector: 6 Pin Bayonet Connector
- Mounting Torque: 150 – 500 Inch Pounds
- Style: Classic
- Rigid Stem Length: 6" Stem + 18" Flex Hose
- Output Type: 4-20 mA
- Pressure Range, psi: 0-10,000
- Thermocouple: Type J
Item Documents
- Item Catalog Page 109
-
-
$970.00 / EACH -
$850.00 / EACH -
$900.00 / EACH -
$790.00 / EACH
-
25′ Extension Cable with Mating Connector
Item # 132027$95.00 / EACH -
Melt Pressure Transmitter, 4-20 mA, 6” Stem with 18” Flex Hose, 0-5,000 psi, Type J Thermocouple
Item # 174926$1,030.00 / EACH -
$740.00 / EACH -
Melt Pressure Transmitter, 4-20 mA, 6” Stem with 18” Flex Hose, 0-7,500 psi, Type J Thermocouple
Item # 174927$1,030.00 / EACH -
$740.00 / EACH
-
$970.00 / EACH
-
$740.00 / EACH
