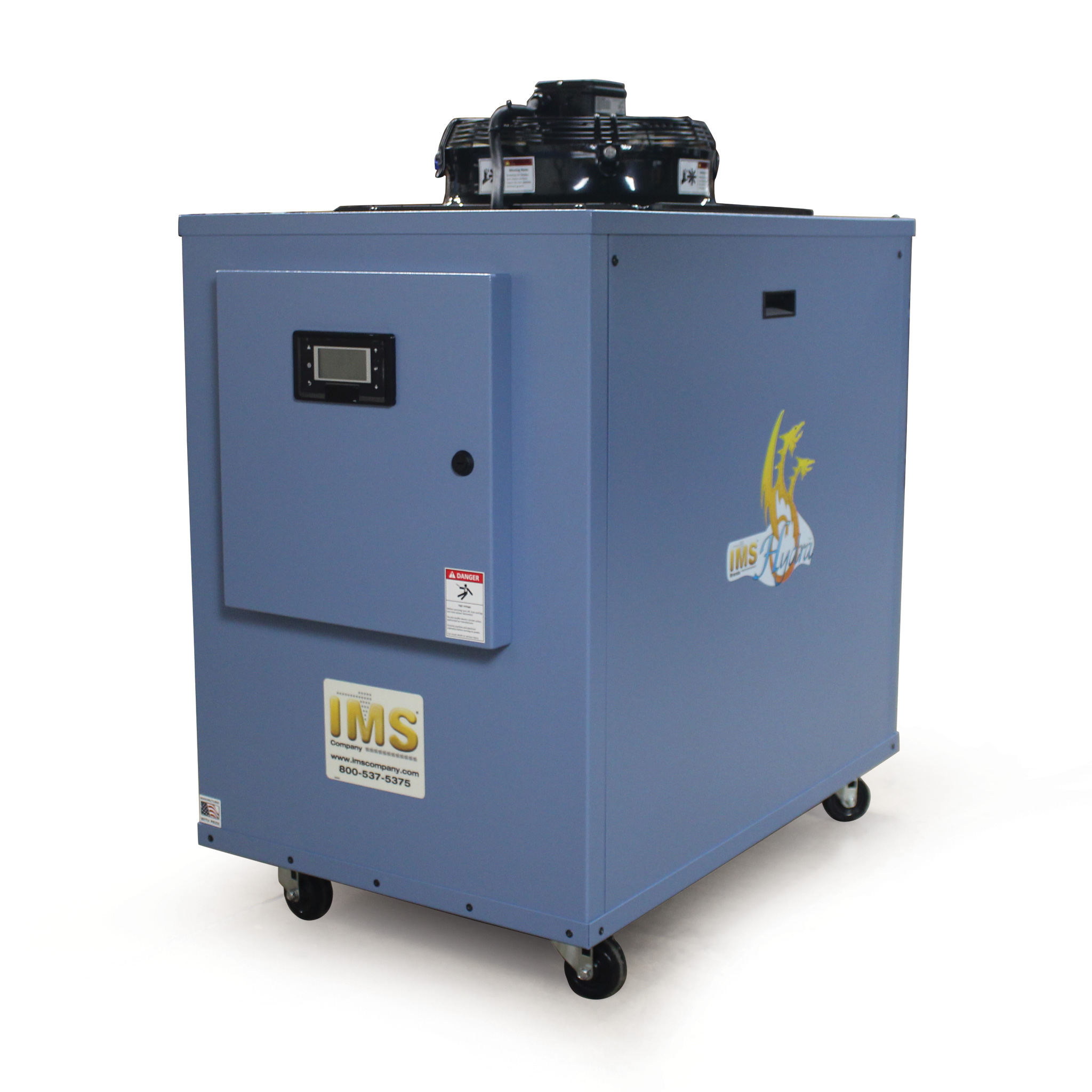

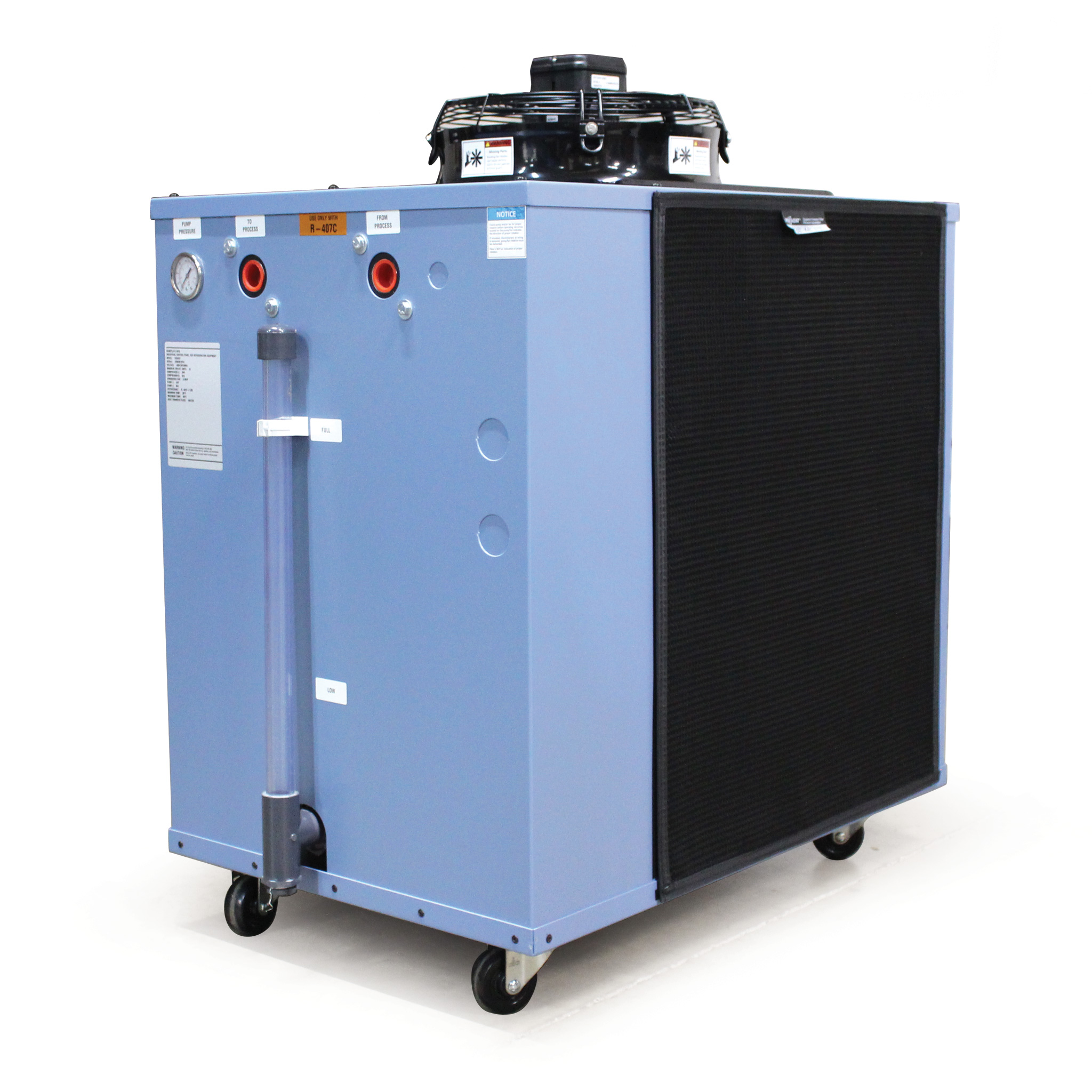

Chiller, Air Cooled, Hydra NQ Series, 5 Ton, 230/60/3
Part #
175407
$16,550.00
/ EACH
Product is returnable
Chiller, 5 Ton, Air Cooled, Hydra NQ Series, 5.1 Tons Actual (61, 200 BTU’s) at 50F Leaving Fluid Temperature and 95F Ambient. 230/60/3 Volt. Set Point Range 20F-80F. C-UL508A Controls, 7” Color Touch Screen PLC, Alarm Horn, Electronic Hot Gas Bypass, Stainless Steel Brazed Plate Evaporator, Internal Valved Bypass Line Protects the Pump and Evaporator. Y-Strainer Protects Evaporator from Contamination. Includes Casters.
Product Features
- Pump: 2 hp, 12 gpm at 41 psi
- 33 Minimum Circuit Amps at 230/60/3
- Fluid Connection Size: 1-1/2" Female NPT
- Refrigerant: R454b, Environmentally Compliant 2024
- Single Danfoss Scroll Compressor
- Nonferrous Water Circuit Construction
- Insulated Polyethylene Reservoir
- C-UL508A and PLC Controls
- Control Includes Operation, Monitoring, Diagnostics and Trending Data
- Single Point Main Power Block
- Alarm Horn
- Heavy Gauge Painted Steel Cabinet
- Dimensions: 61"H, 34"W, 48"L
- Weight: 720 lb Crated
- Tested Under "Full Load" Conditions
- Warranty: 18 Months Parts, 12 Months Labor
