Description

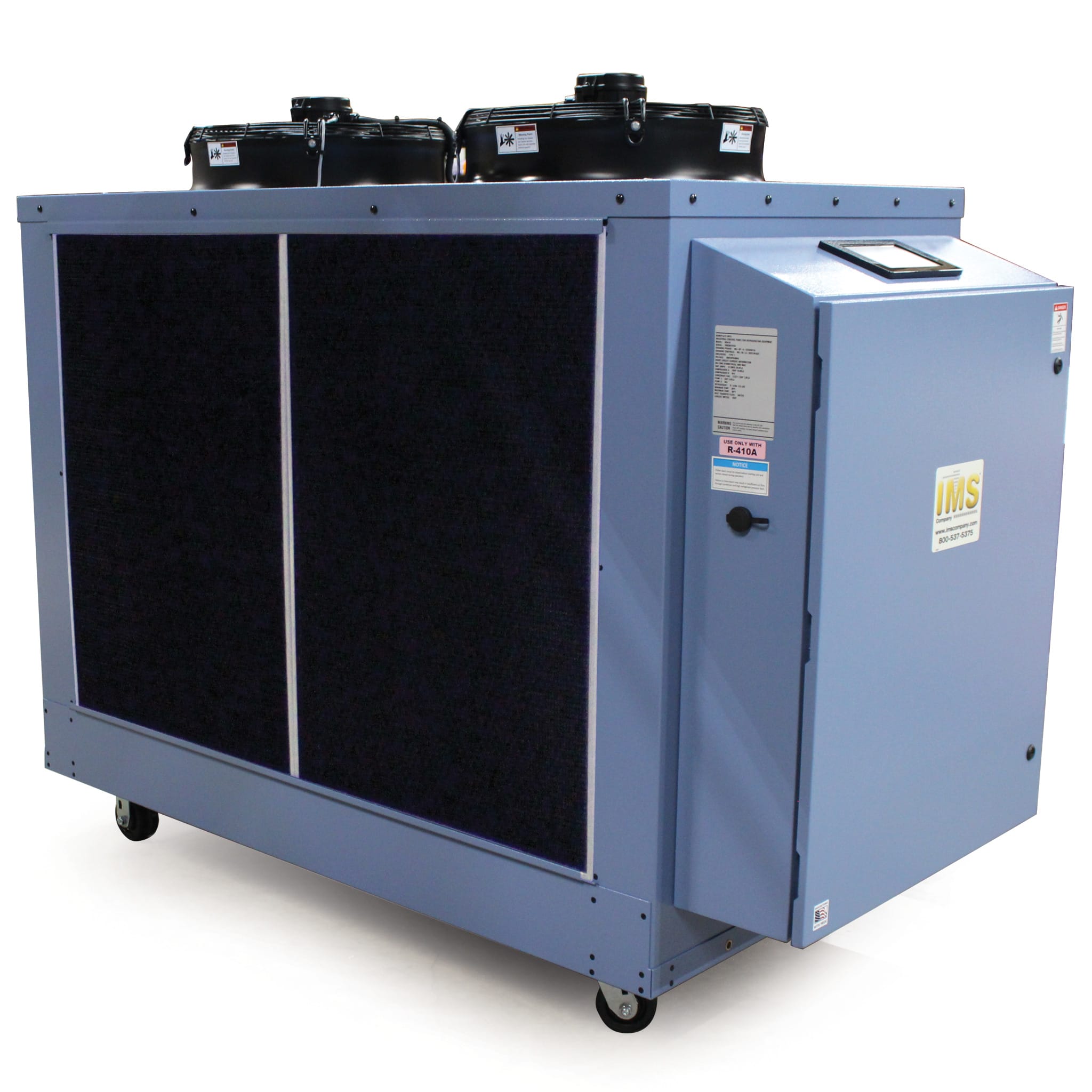

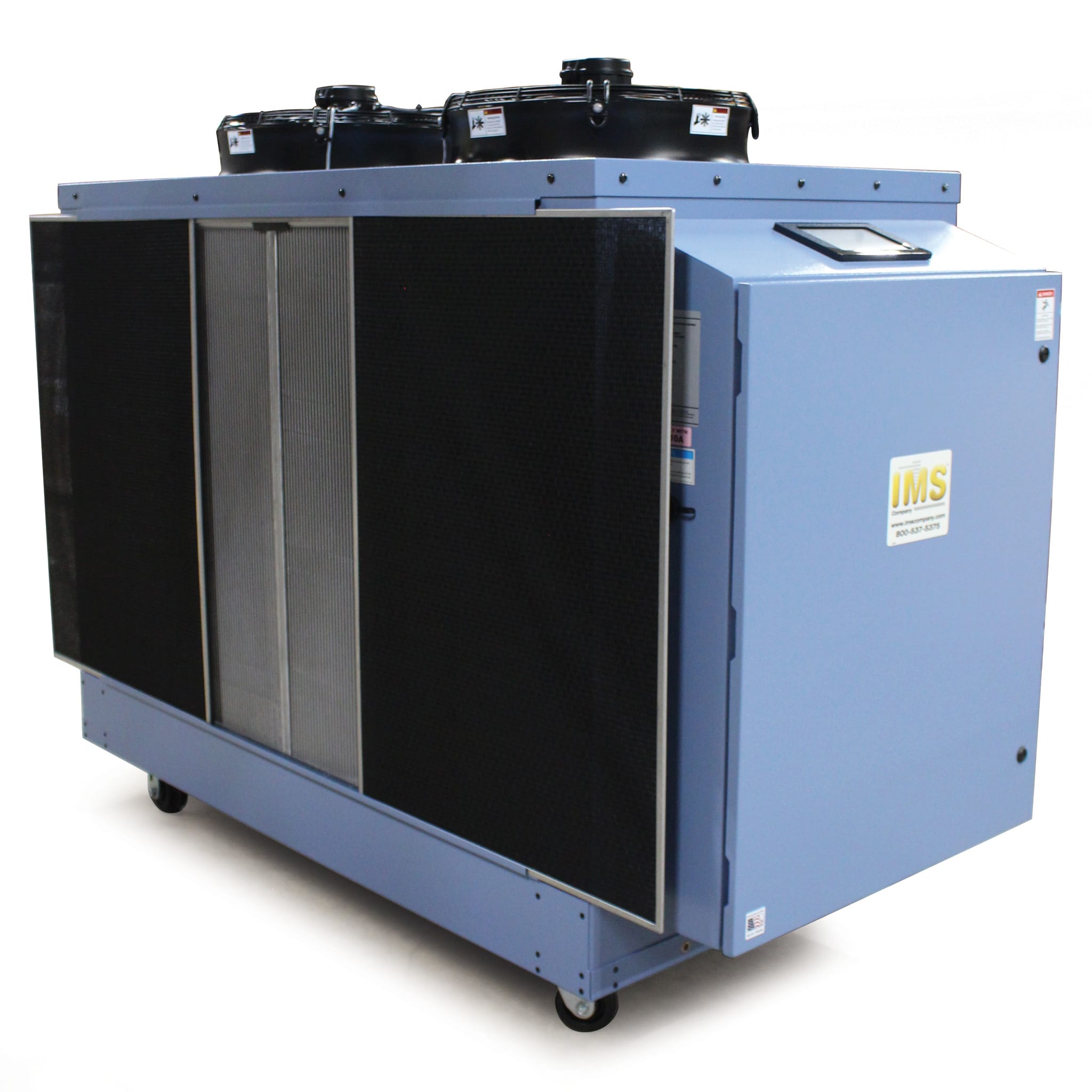

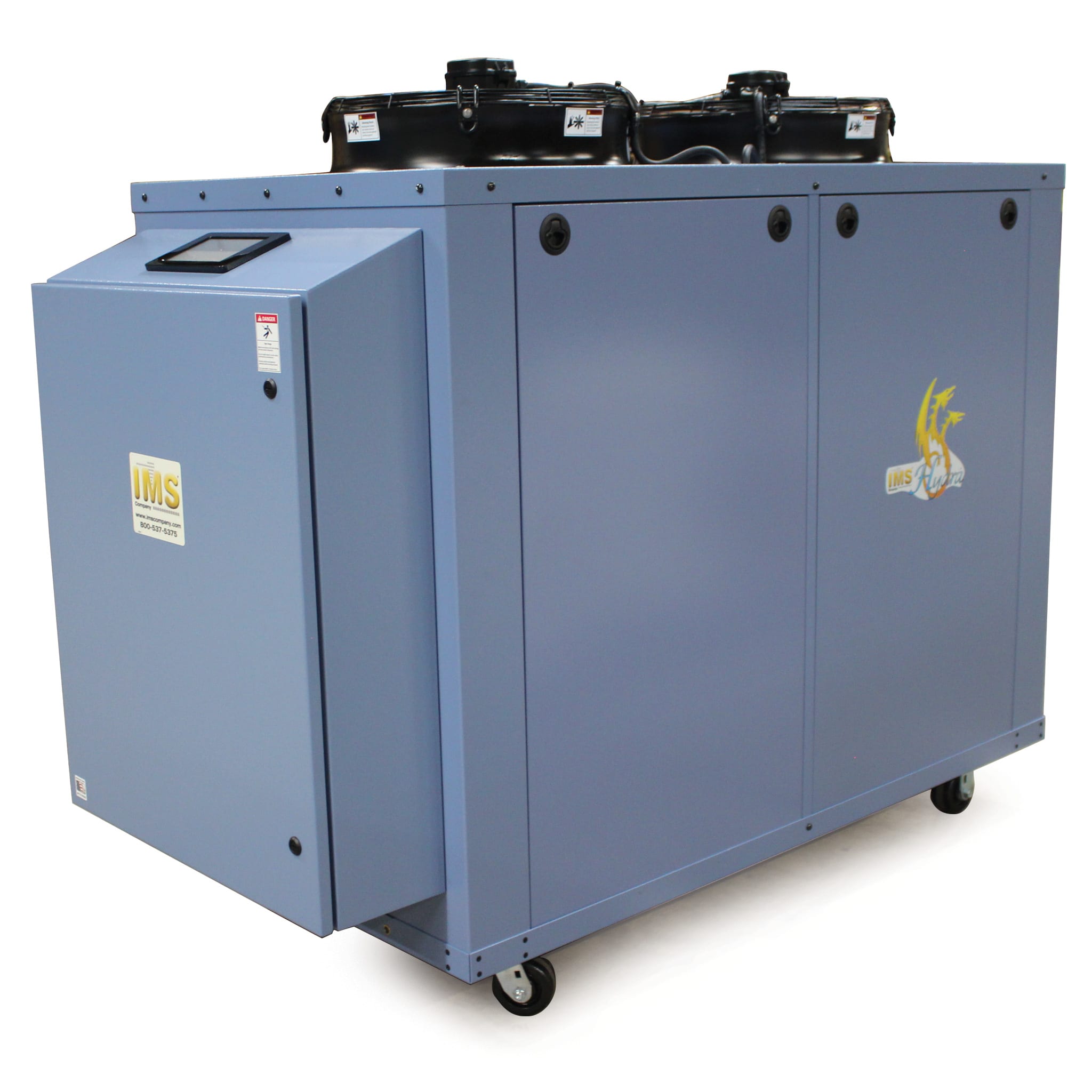

Chiller, 13 Ton, Air Cooled, Hydra NQ Series, 12.5 Tons Actual (150,000 BTU’s) at 50F Leaving Fluid Temperature and 95F Ambient. 460/60/3 Volt. Set Point Range 20F-80F. C-UL508A Controls, 7” Color Touch Screen PLC, Alarm Horn, Electronic Hot Gas Bypass, Stainless Steel Brazed Plate Evaporator, Internal Valved Bypass Line Protects the Pump and Evaporator. Y-Strainer Protects Evaporator from Contamination. Includes Casters.
~Pump: 3 hp, 30 gpm at 46 psi
~37 Minimum Circuit Amps at 460/60/3
~Fluid Connection Size: 1-1/2″ Female NPT
~Refrigerant: R454b, Environmentally Compliant 2024
~Single Danfoss Scroll Compressor
~Nonferrous Water Circuit Construction
~Insulated Polyethylene Reservoir
~C-UL508A and PLC Controls
~Control Includes Operation, Monitoring, Diagnostics and Trending Data
~Single Point Main Power Block
~Alarm Horn
~Heavy Gauge Painted Steel Cabinet
~Dimensions: 61″H, 34″W, 75″L
~Weight: 1,215 lb Crated
~Tested Under “Full Load” Conditions
~Warranty: 18 Months Parts, 12 Months Labor
