Product Documents
- Product Catalog Page 721
Drawer Magnet, 6″ x 6″, with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange
Part #
175701
$686.40
/ EACH
Product is returnable

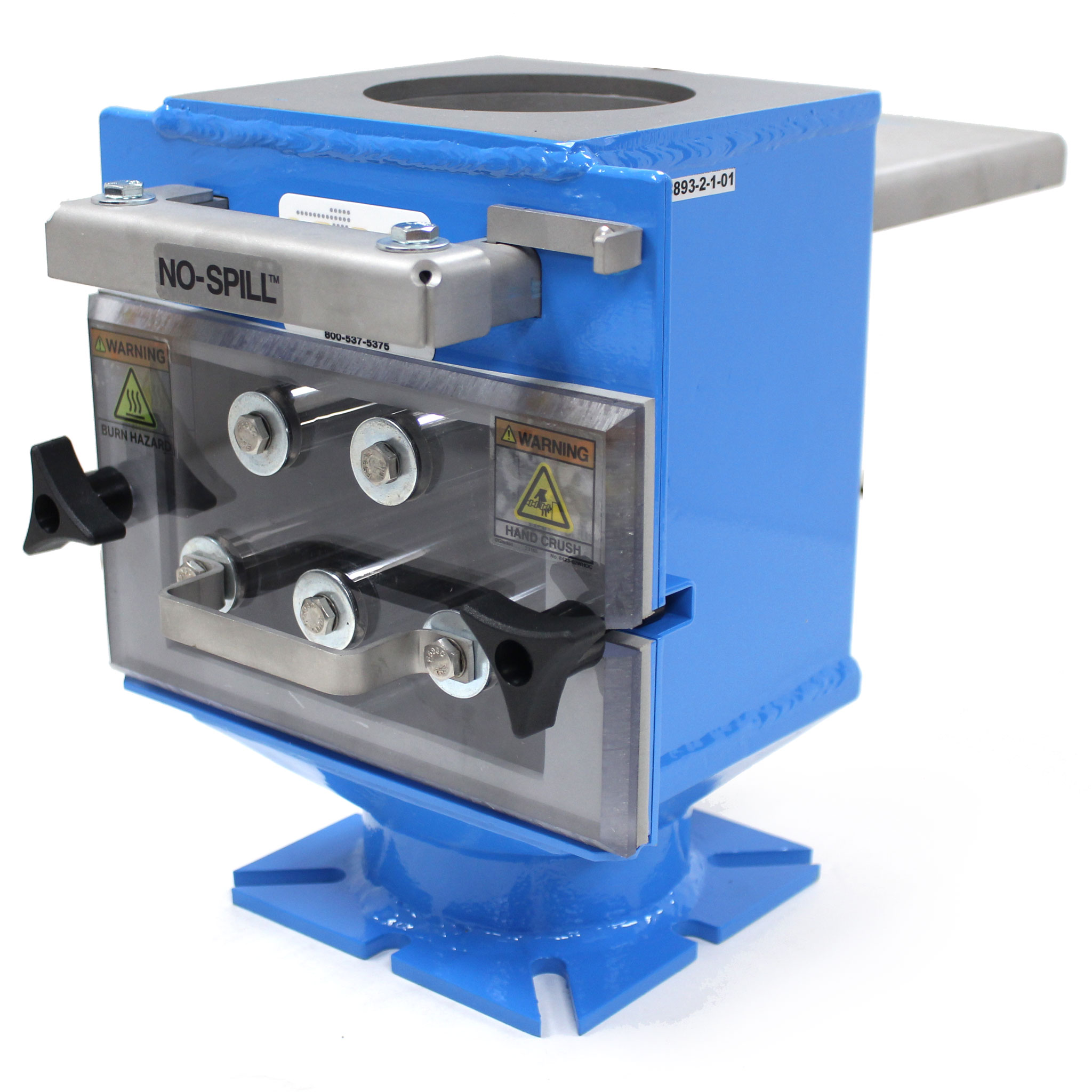

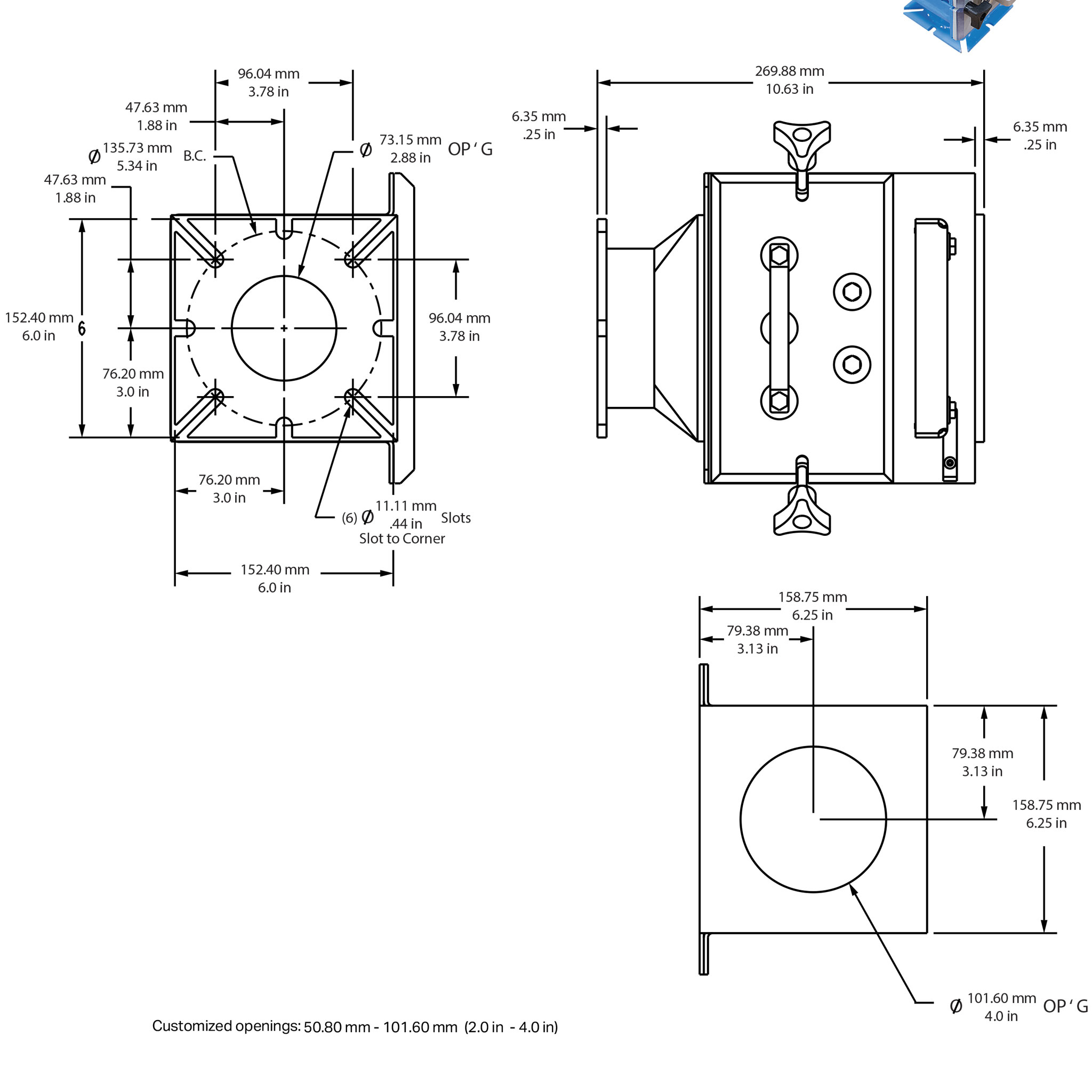

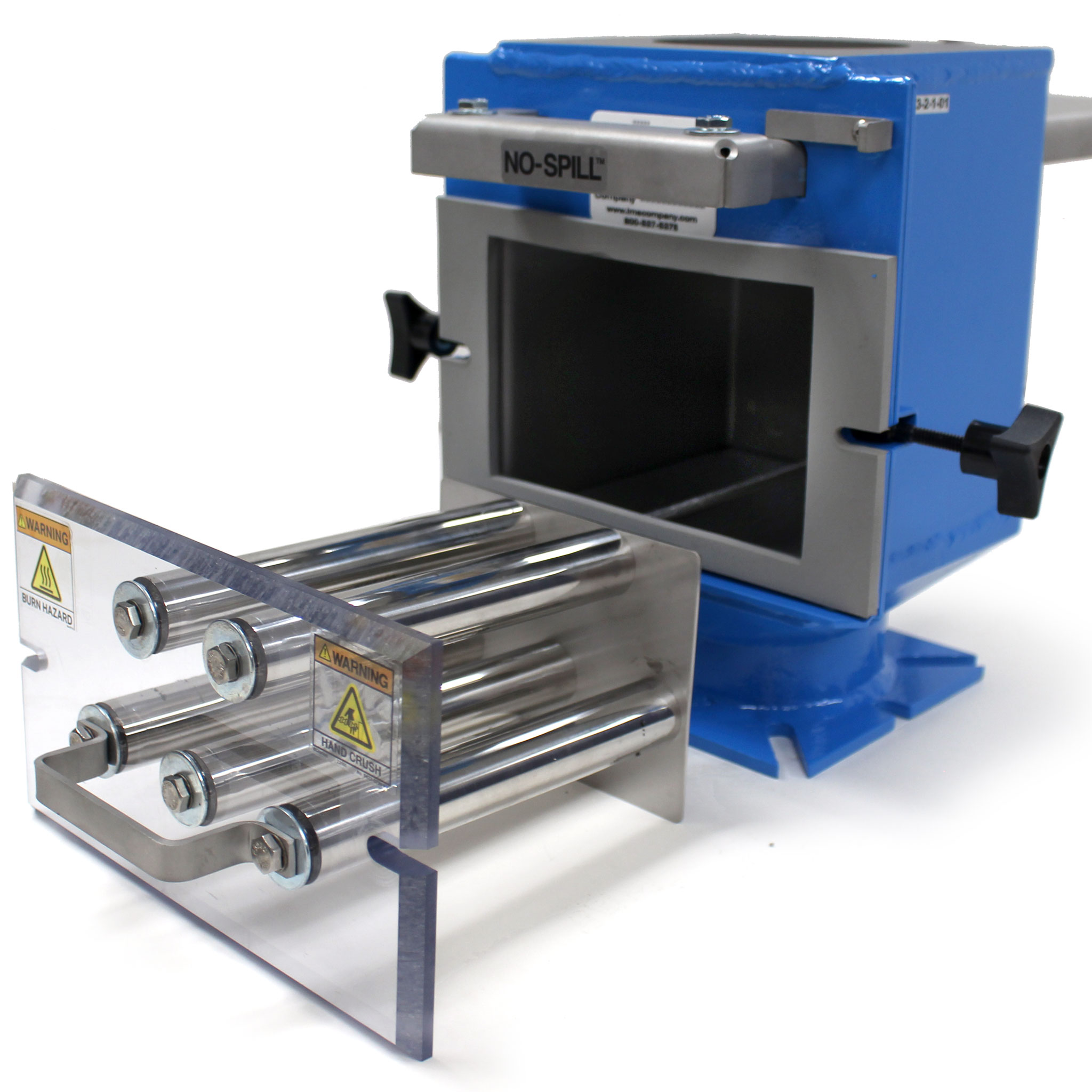

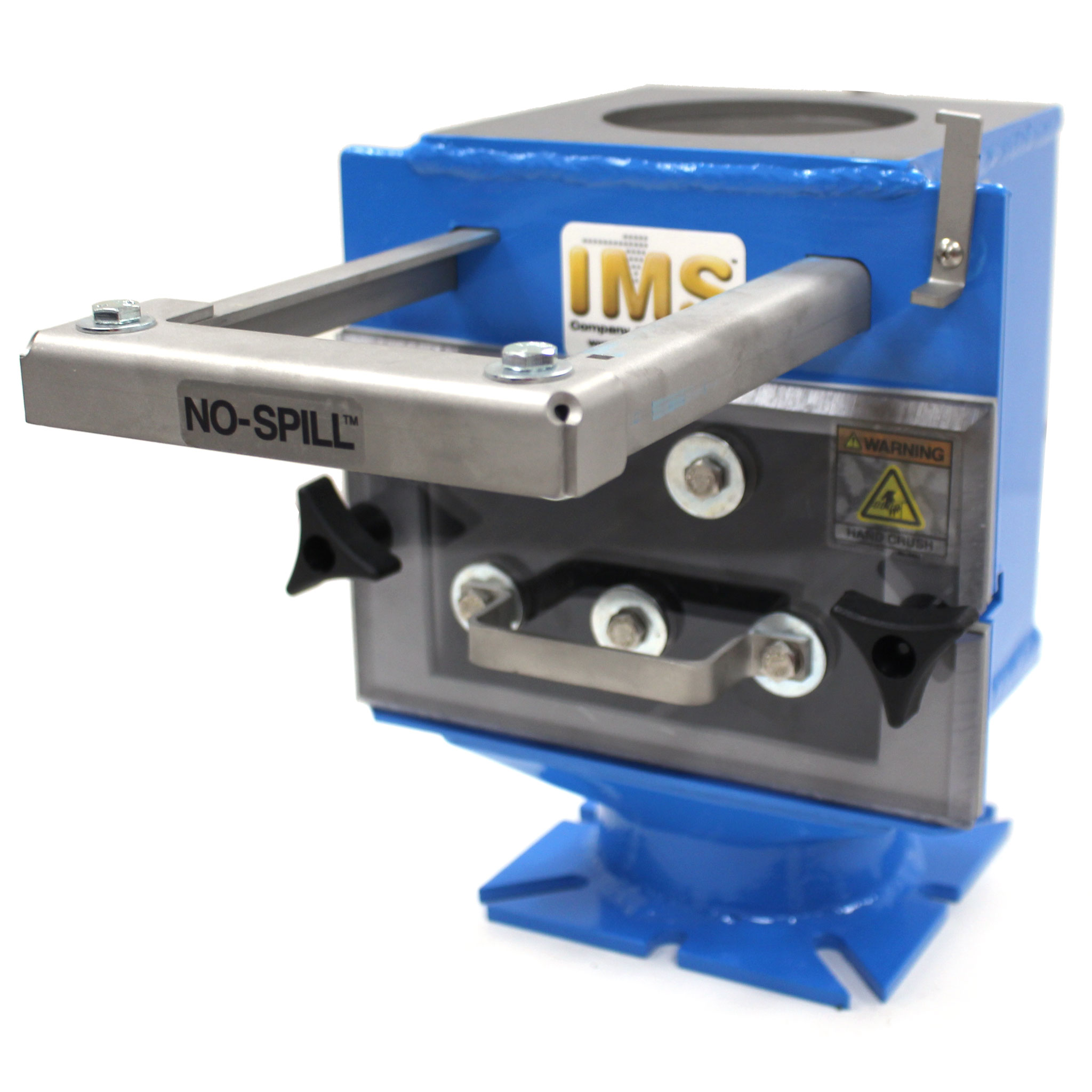

Drawer Magnet, 6″ x 6″ with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange, Includes Slide Gate, 180°F Rare Earth Magnet, 6″ x 6″ Stainless Steel Housing with Carbon Steel 6-1/4″ x 6-1/4″ Top Flange and 6″ x 6″ Slotted Bottom Flange, Top Feed Opening 4″, Bottom Feed Opening 2-7/8″.
Efficiently captures and retains ferrous metal contaminants, ensuring tramp metals don’t enter and damage your processing equipment.
Product Features
- Minimize Downtime: the slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
- 180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
- 5,000 Gauss Magnetic Strength
- Two rows of 25mm (1") tubes optimize the magnetic circuit, ensuring free material flow
- 6" x 6" Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
- Carbon Steel Flanges – 1/4" thickness
- EPDM Drawer Gasket resists heat aging
- Clear Polycarbonate Drawer Front allows easy viewing of materials
- High-torque Nylon Drawer Knobs
- Customizable options available – Inquire
