Drawer Magnet, 8″ x 8″, with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange
Part #
175702
$891.60
/ EACH
Product is returnable

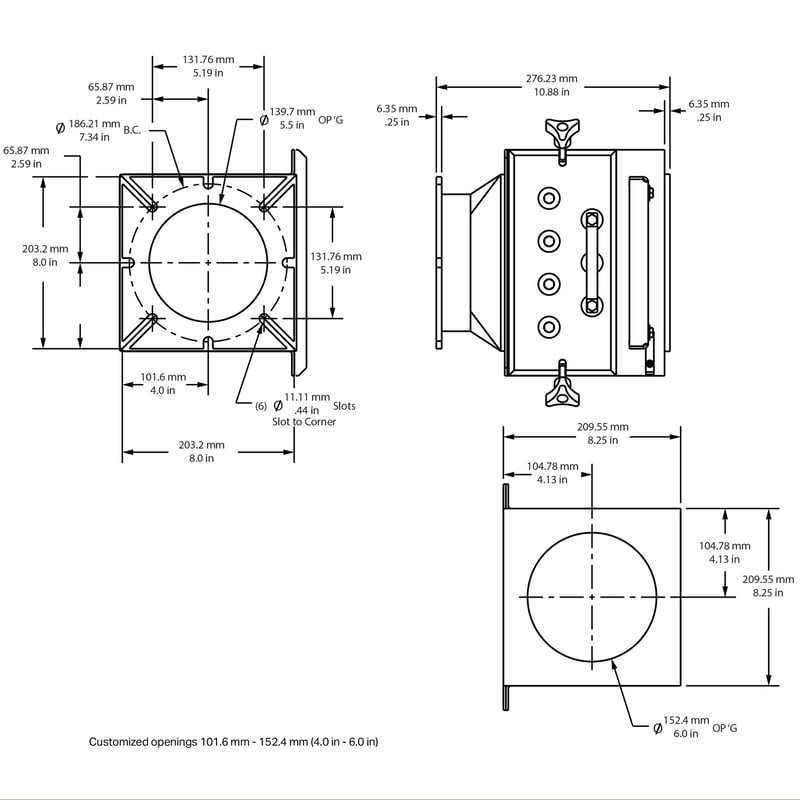

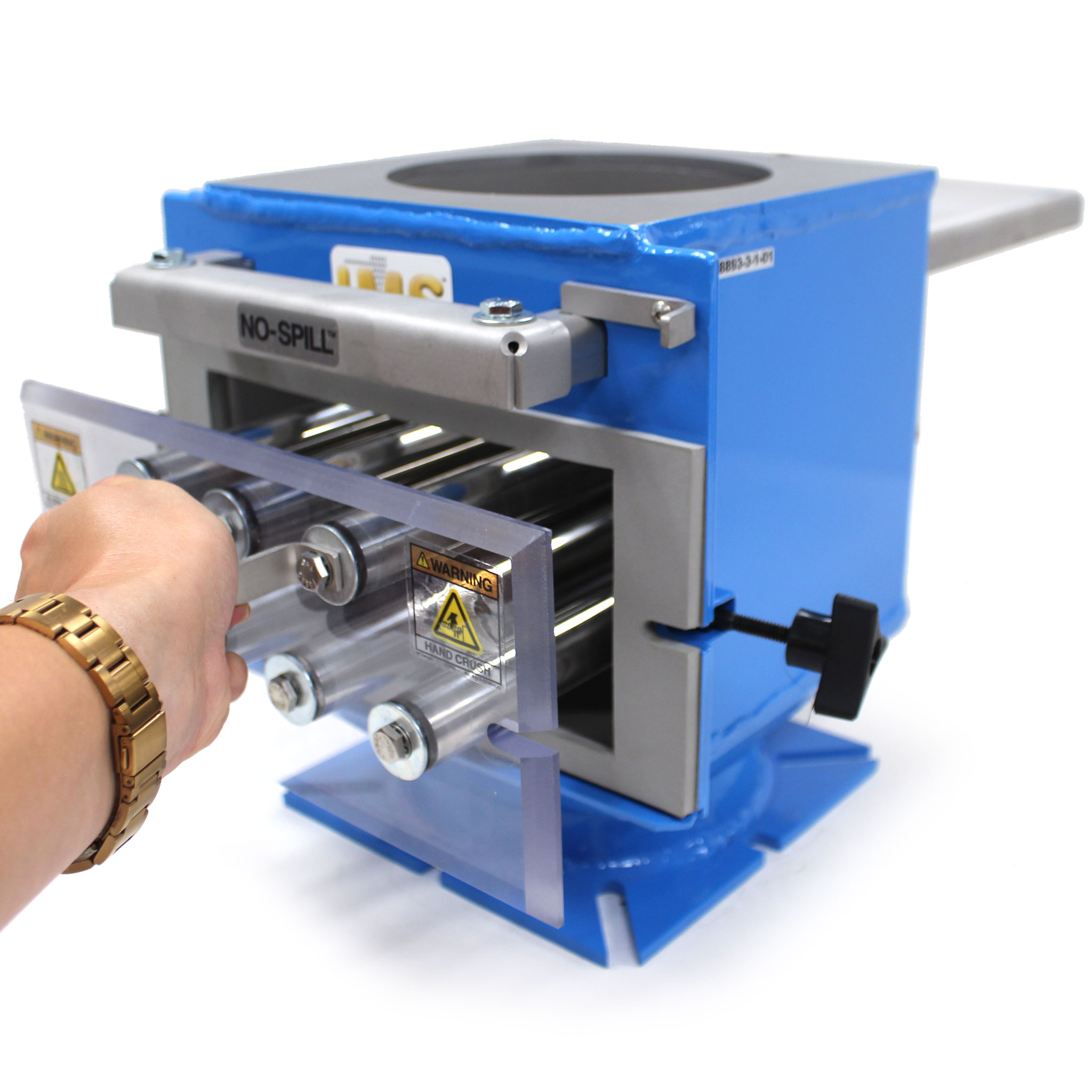

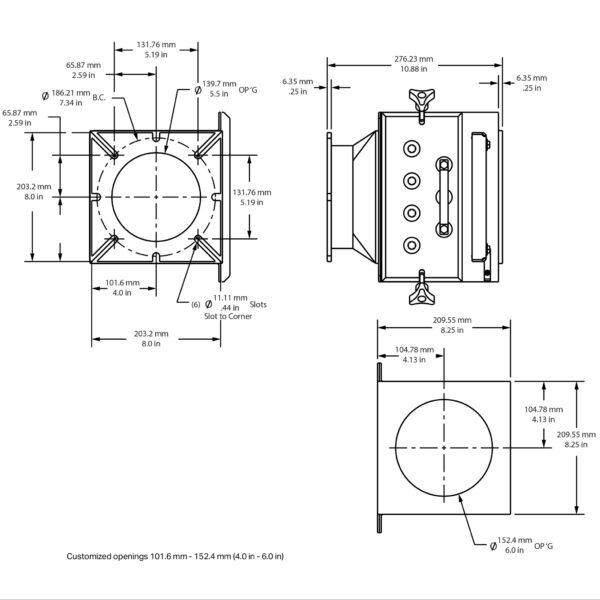

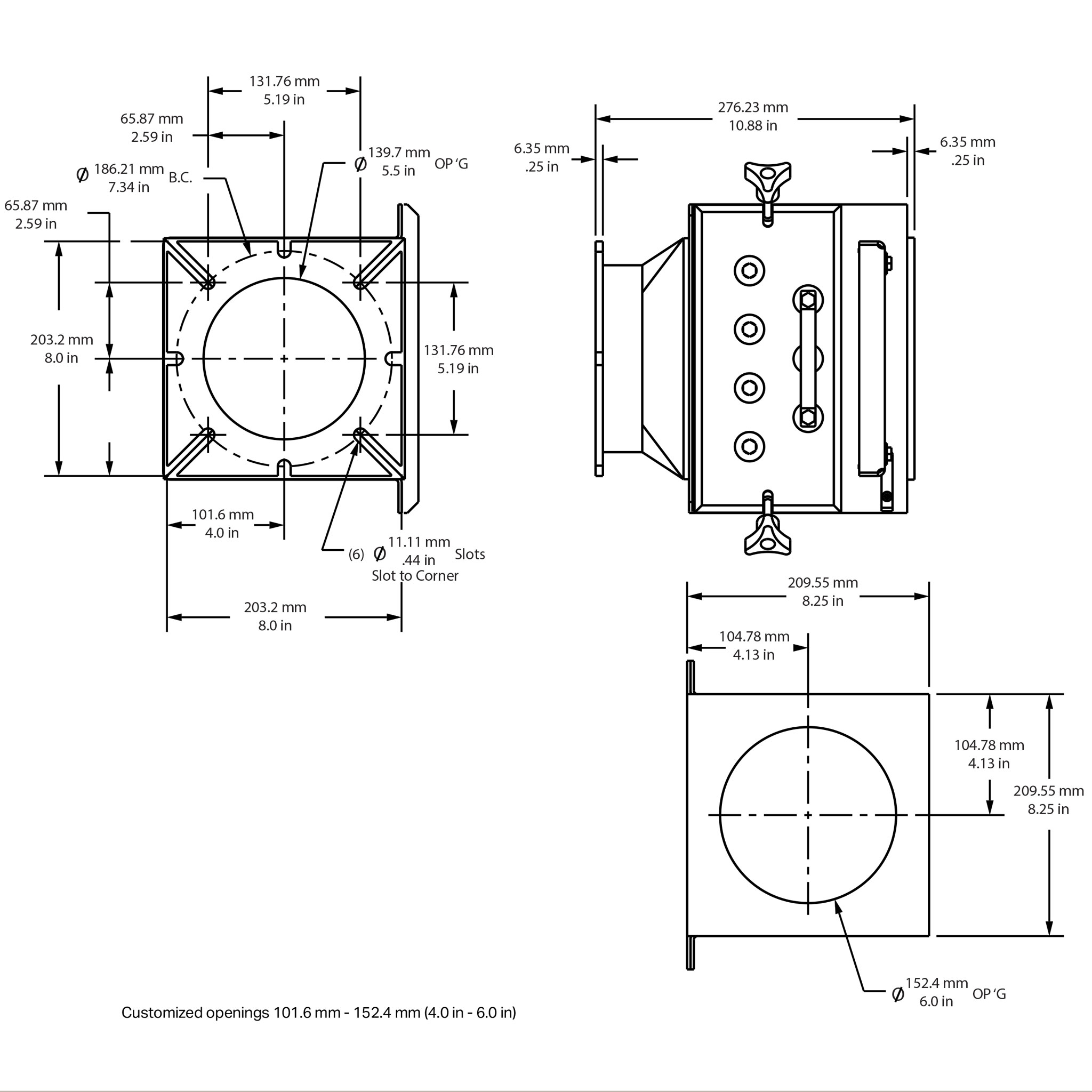

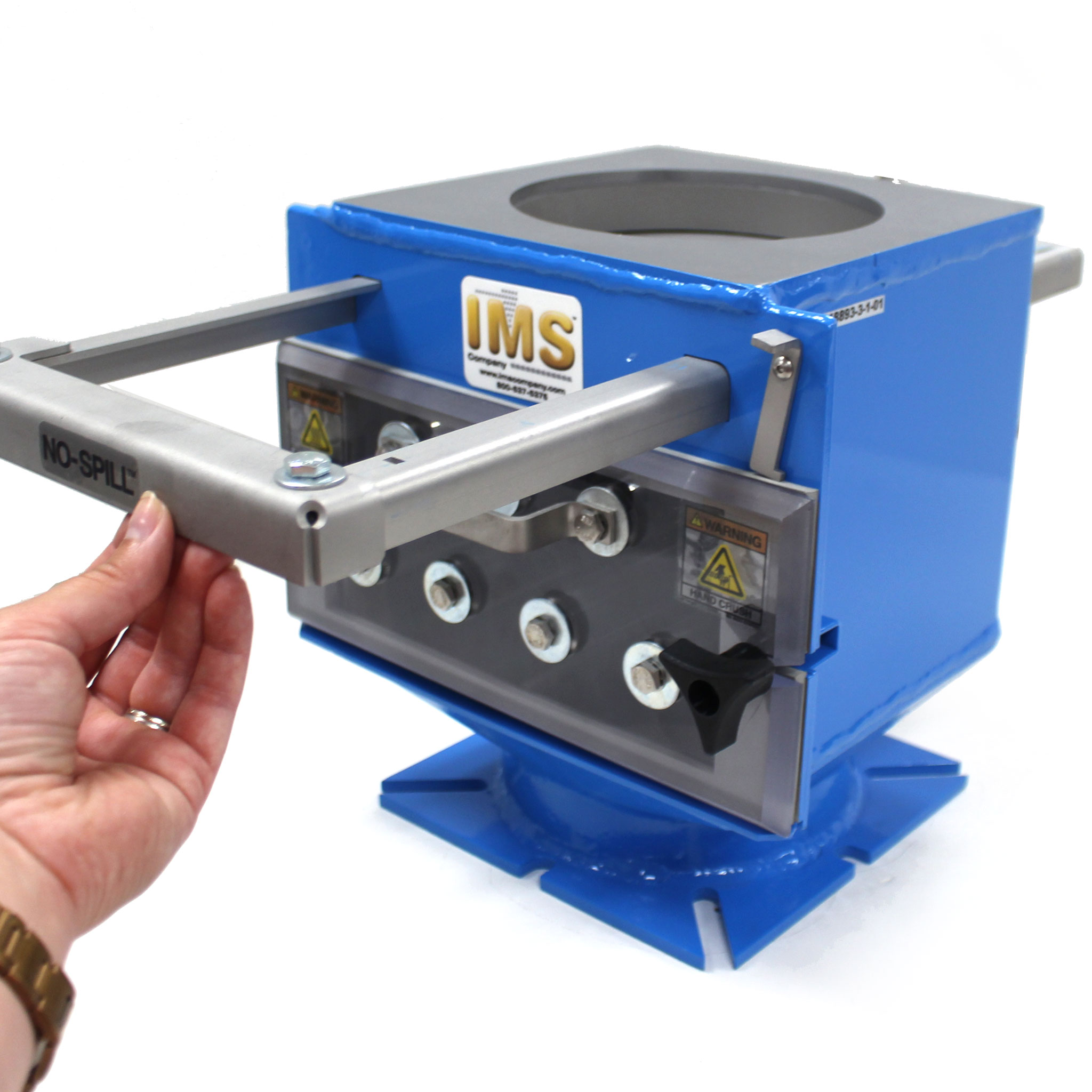

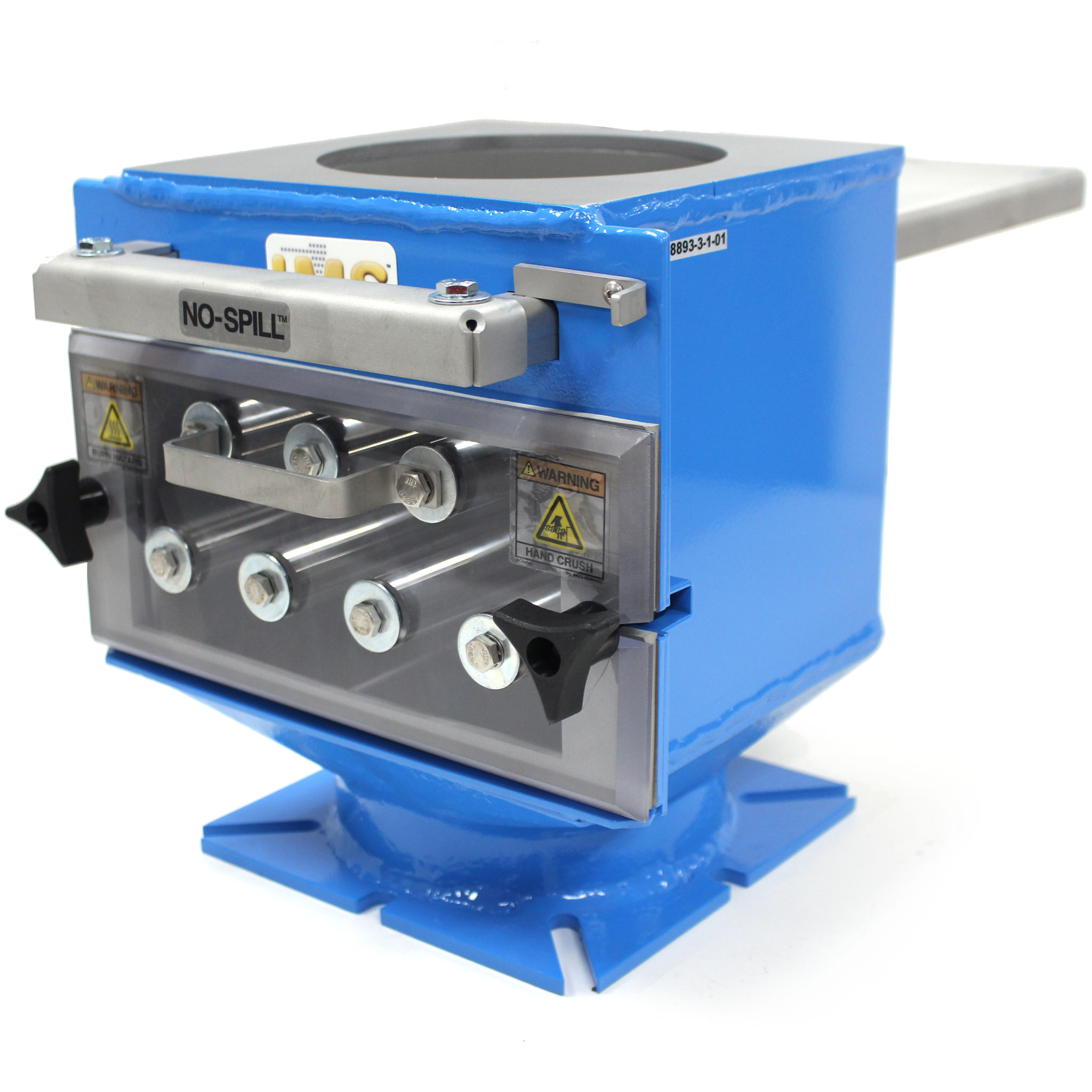

Drawer Magnet, 8″ x 8″ with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange, Includes Slide Gate, 180°F Rare Earth Magnet, 8″ x 8″ Stainless Steel Housing with Carbon Steel 8-1/4″ x 8-1/4″ Top Flange and 8″ x 8″ Slotted Bottom Flange, Top Feed Opening 6″, Bottom Feed Opening 5-1/2″.
Efficiently captures and retains ferrous metal contaminants, ensuring tramp metals don’t enter and damage your processing equipment.
Product Features
- Minimize Downtime: the slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
- 180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
- 5,000 Gauss Magnetic Strength
- Two rows of 25mm (1") tubes optimize the magnetic circuit, ensuring free material flow
- 8" x 8" Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
- Carbon Steel Flanges – 1/4" thickness
- EPDM Drawer Gasket resists heat aging
- Clear Polycarbonate Drawer Front allows easy viewing of materials
- High-torque Nylon Drawer Knobs
- Customizable options available – Inquire
