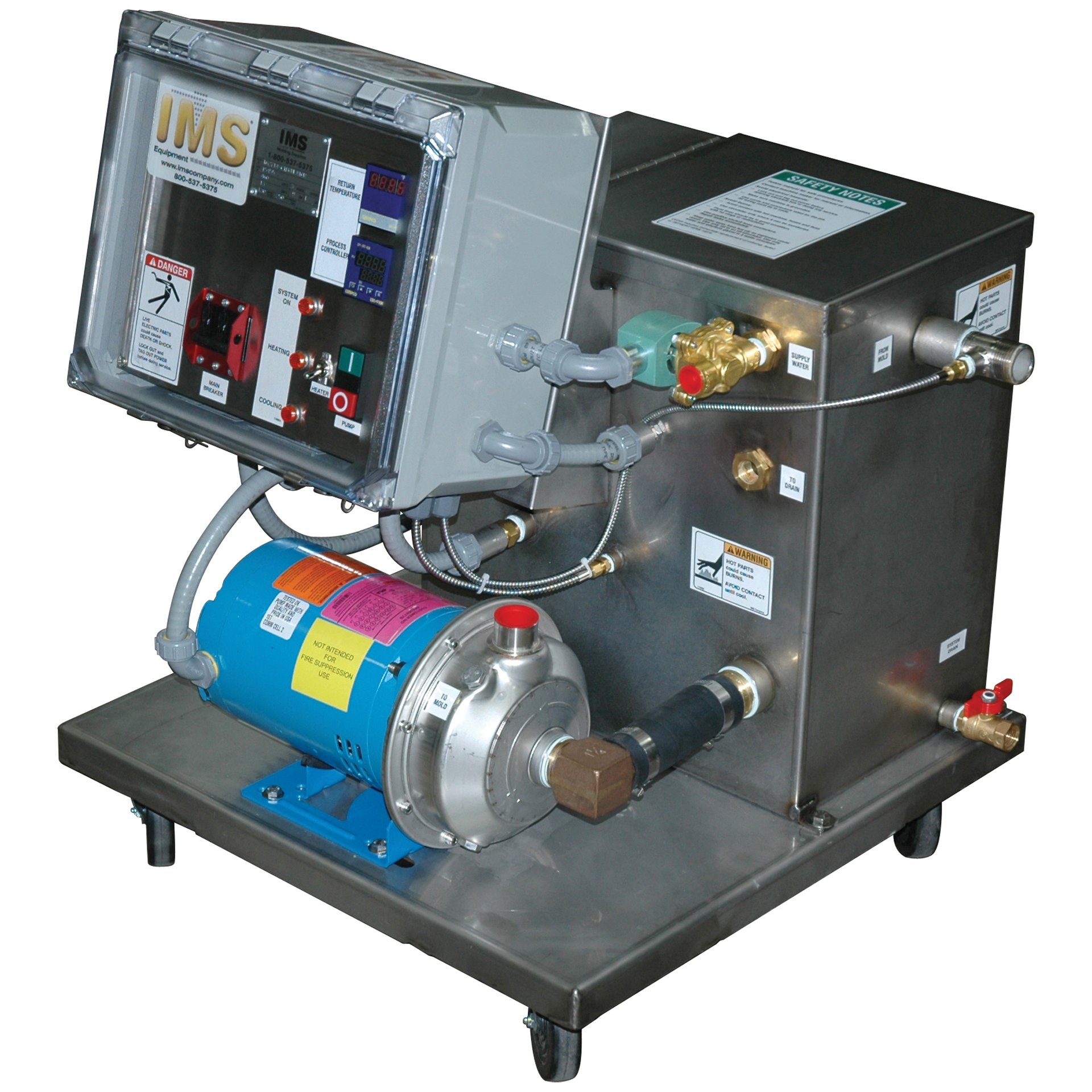

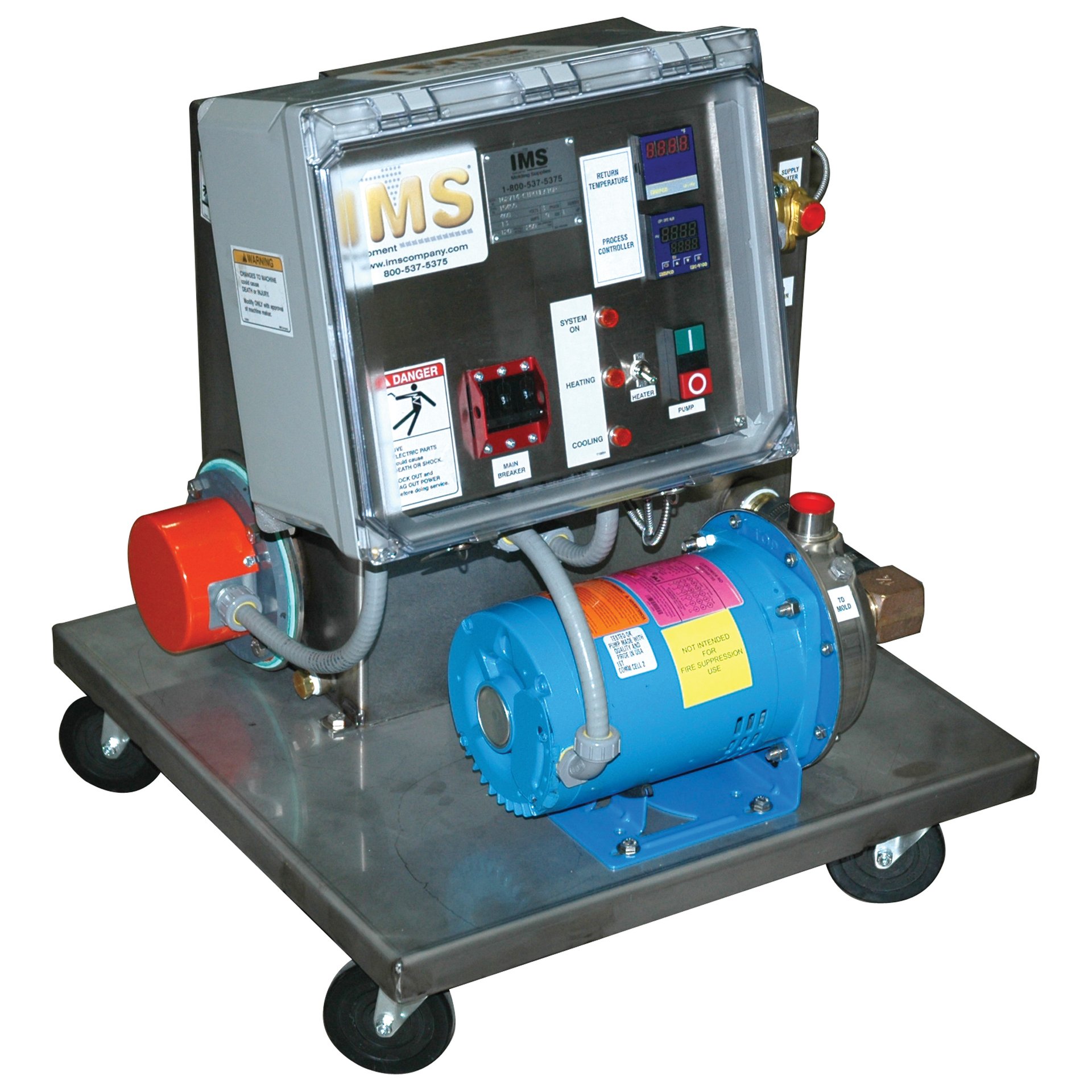

Circulator, Water, Hydra MC90WC, 9kW, 230/60/3, 25Amp Breaker
Part #
176154
$7,200.00
/ EACH
Product is not returnable
Mold Circulator, Water Cooled, Hydra Model MC90WC, 230/60/3 Volt, 250 Degree F Max, 1 hp Stainless Steel Pump, Stainless Steel Tank, Liquid Level Low Fluid Electrical Shut Off Switch. 25 Amp Breaker per BAE Systems, Endicott, NY location
Product Features
- 25.1 Full Load Amps
- Includes 25 Amp Breaker
- Range +/- 10 Degrees Ambient Air to 250 F
- Accuracy +/- 1 Degree F
- 30 gpm at 38 psi
- 9 kW Flanged Heater
- 14 Gallon Tank Capacity
- 1" NPT Output to Mold
- 1" NPT Return from Mold
- Size: 24" L x 24" W x 28-1/2" H
- Shipping Weight: 161 lb
