Eyebolt, 2,400 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1/2″-13 Thread Size
Item #
101423
$4.71
/ EACH

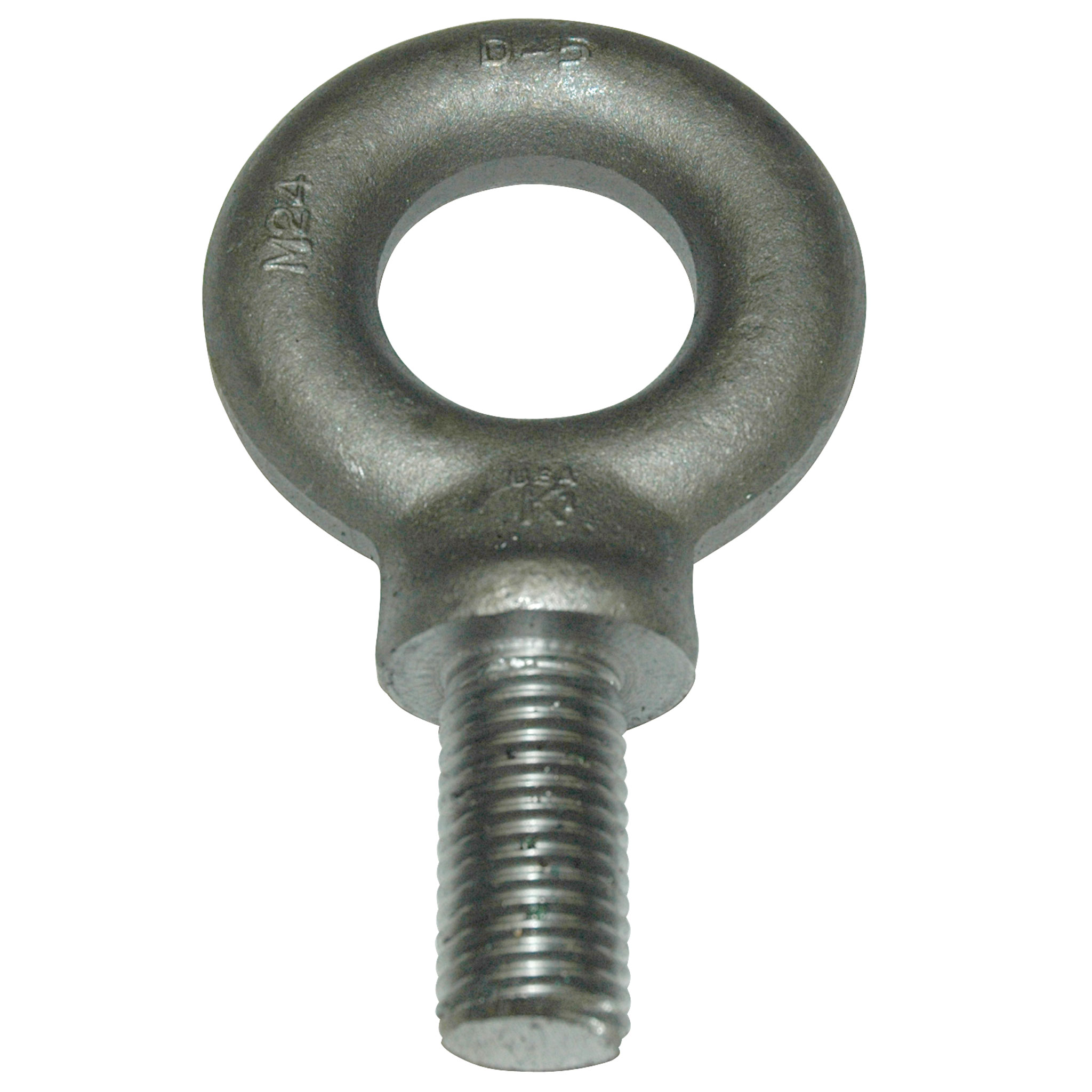

Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24 X 3.0 Thread Size
Item #
106718
Item is returnable
$35.80
/ EACH
Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24 x 3.0 Thread Size.
- 48 mm (1.959") Shank Length
- 45 mm (1.836") Eye Inside Diameter
- 90.4 mm (3.559") Eye OD
- 57.1 mm (2.25") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 3,850 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M24 x 3.0
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 21,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 138829$48.70 / EACH -
$75.00 / EACH -
$5.20 / EACH -
Eyebolt, 6,400 kg (14,080 lb.) Capacity, Metric, Shouldered, Forged Steel, M30 X 3.5 Thread Size
Item # 108500$63.30 / EACH -
Eyebolt, 4,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 5/8″-11 Thread Size
Item # 101420$7.47 / EACH -
Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12 X 1.75 Thread Size
Item # 107520$11.40 / EACH -
Eyebolt, 2,860 kg (6,306 lb.) Capacity, Metric, Shouldered, Forged Steel, M20 X 2.5 Thread Size
Item # 106720$27.40 / EACH -
Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8 X 1.25 Thread Size
Item # 107516$10.20 / EACH -
$100.96 / EACH -
Eyebolt, 16,400 kg (36,155 lb.) Capacity, Metric, Shouldered, Forged Steel, M48 X 5 Thread Size
Item # 140636$239.00 / EACH -
Eyebolt, 1,800 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 7/16″-14 Thread Size
Item # 101415$7.50 / EACH
