Eyebolt, 1,800 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 7/16″-14 Thread Size
Item #
101415
$7.50
/ EACH

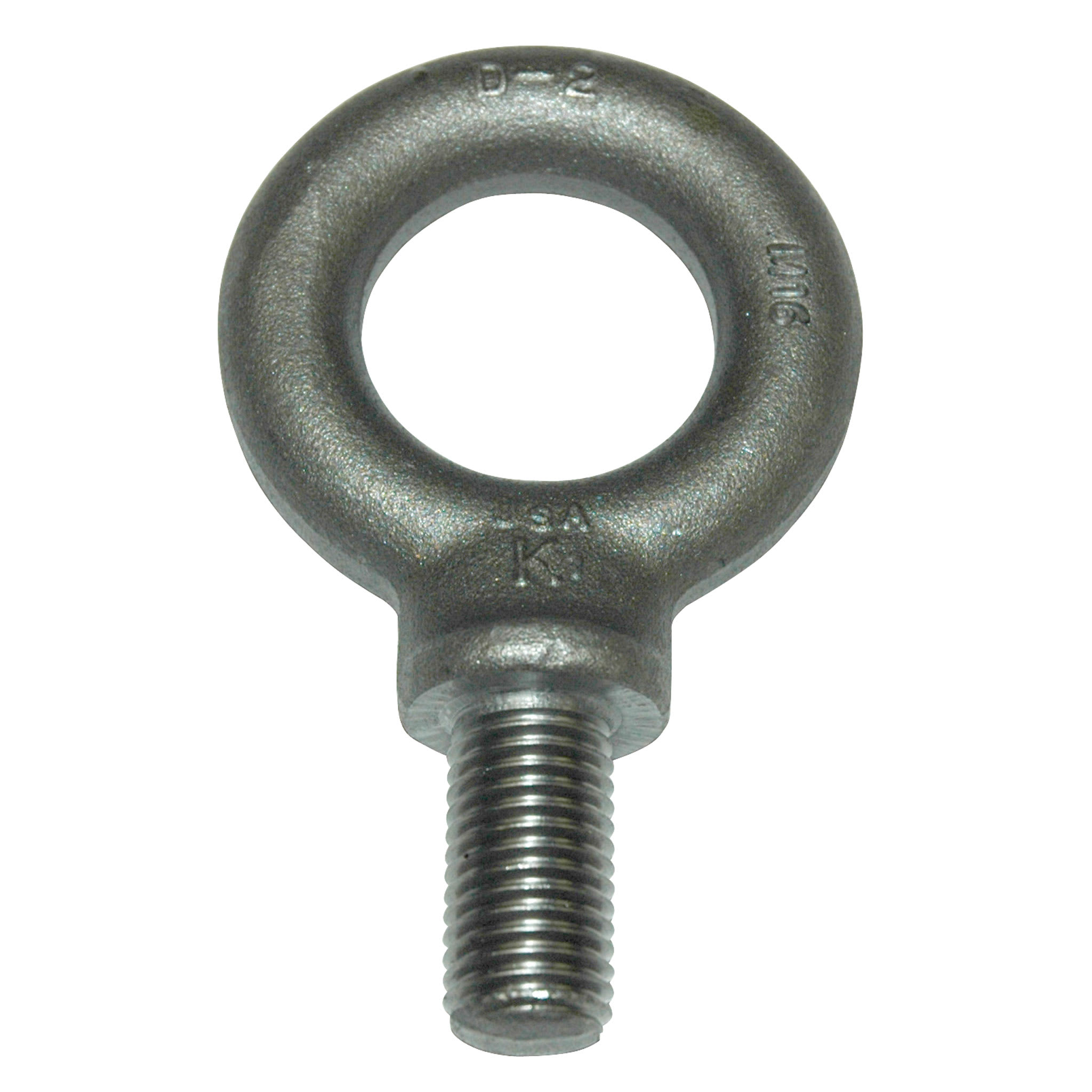

Eyebolt, 1,600 kg (3,527 lb.) Capacity, Metric, Shouldered, Forged Steel, M16 X 2.0 Thread Size
Item #
106724
Item is returnable
$17.20
/ EACH
Eyebolt, 1,600 kg (3,527 lb) Capacity, Metric, Shouldered, Forged Steel, M16 x 2.0 Thread Size.
- 32 mm (1.26") Shank Length
- 35 mm (1.378") Eye Inside Diameter
- 65.0 mm (2.559") Eye OD
- 40.9 mm (1.61") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 1,600 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M16 x 2.0
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 2,140 kg (4,718 lb.) Capacity, Metric, Shouldered, Forged Steel, M18 X 2.5 Thread Size
Item # 106723$19.00 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 107961$29.05 / EACH -
Eyebolt, 4,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 5/8″-11 Thread Size
Item # 101420$7.47 / EACH -
$100.96 / EACH -
Eyebolt, 1,300 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/8″-16 Thread Size
Item # 101417$5.00 / EACH -
Eyebolt, 2,400 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1/2″-13 Thread Size
Item # 101423$4.71 / EACH -
Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24 X 3.0 Thread Size
Item # 106718$35.80 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 137974$35.00 / EACH -
Eyebolt, 16,400 kg (36,155 lb.) Capacity, Metric, Shouldered, Forged Steel, M48 X 5 Thread Size
Item # 140636$239.00 / EACH -
Eyebolt, 21,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 138829$48.70 / EACH -
$5.20 / EACH
