Hoist Ring, Metric Size, Rated Load: 1050 kg. M12 X 1-3/4 Thread Size, 32mm Thread Length
Item #
115950
$80.38
/ EACH

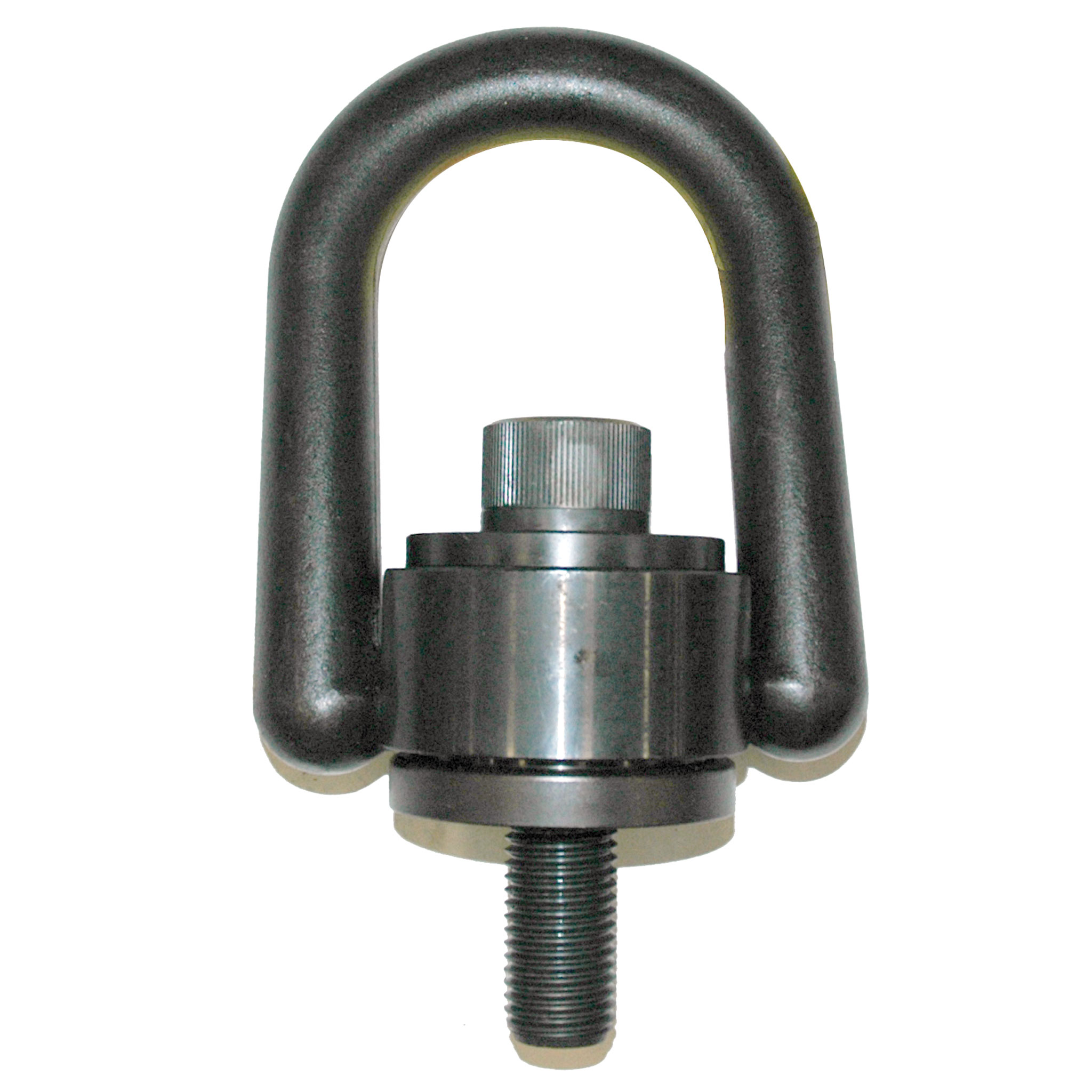

Hoist Ring, Standard Size, Rated Load: 15000 lb. 1-1/4″-7 Thread Size, 2.63″ Thread Length
Item #
115944
Item is returnable
$280.72
/ EACH
Hoist Ring, Standard Size, Rated Load: 15000 lb. 1-1/4″-7 Thread Size, 2.63″ Thread Length. ADB # 33401
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish Former Item# Mai1-Hr401
- Thread Type: Standard
- Rated Load: 15,000 lb
- Thread Size: 1-1/4"-7
- Thread Length: 2.63"
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115950. Bolt/Screw Size M12X1.75
Item # 122861$18.34 / EACH -
Hoist Ring, Metric Size, Rated Load: 400 kg. M8 X 1.25 Thread Size, 21mm Thread Length. ADB # 34214
Item # 115948$66.33 / EACH -
Hoist Ring, Metric Size, Rated Load: 11000 kg. M36 X 4.0 Thread Size, 67mm Thread Length
Item # 115959$323.37 / EACH -
Hoist Ring, Metric Size, Rated Load: 4500 kg. M30 X 3-1/2 Thread Size, 48mm Thread Length
Item # 115956$188.62 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115957. Bolt/Screw Size M20X2.5
Item # 122810$34.18 / EACH -
Hoist Ring, Standard Size, Rated Load: 10000 lb. 1″-8 Thread Size, 1.20″ Thread Length
Item # 115963$188.62 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115963. Bolt/Screw Size 1″-8
Item # 121745$39.89 / EACH -
Hoist Ring, Standard Size, Rated Load: 4000 lb. 5/8″-11 Thread Size, 1.25″ Thread Length
Item # 115953$80.38 / EACH -
Hoist Ring, Metric Size, Rated Load: 4200 kg. M24 X 3.0 Thread Size, 38mm Thread Length
Item # 115966$181.78 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12 X 1.75 Thread Size, 25mm Thread Length.
Item # 115955$80.38 / EACH -
Hoist Ring, Metric Size, Rated Load: 2200 kg. M20 X 2-1/2 Thread Size, 25mm Thread Length
Item # 115962$83.53 / EACH
