$24,748.00
/ EACH
Surge Bin, IMS Heavy Duty 30 Cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 60 Degree Slope
Item #
144002
Item is returnable
$3,232.00
/ EACH

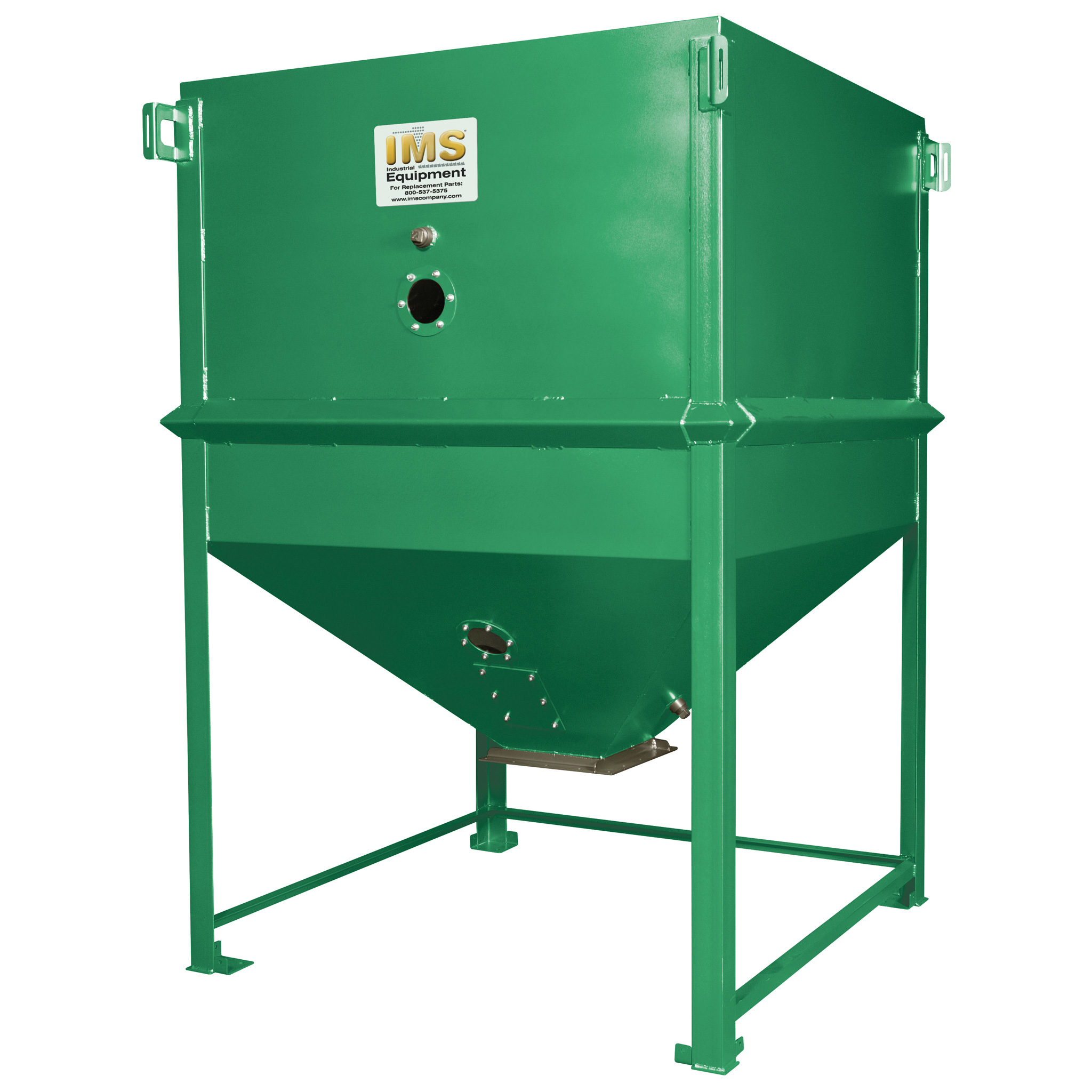

Surge Bin, IMS Heavy Duty 30 Cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 60 Degree Slope and Lid with Access Door and Loader Pattern. **** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
- Dimensions: 54" x 54" x 64.5"
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Weight: 475 lb
- Option: 304 Stainess and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
- Capacity: 30 cu ft (1008 lb)
- Hopper Slope Angle: 60°
Item Documents
- Item Catalog Page 626
-
-
Surge Bin, IMS Heavy Duty 257 Cu ft, 7196 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144017$11,132.00 / EACH -
Surge Bin, IMS Heavy Duty 114 Cu ft, 3192 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144007$5,777.00 / EACH -
Surge Bin, IMS Heavy Duty 69 Cu ft, 2408 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144005$5,004.00 / EACH -
$5,872.00 / EACH -
$12,311.00 / EACH -
$23,046.00 / EACH -
Surge Bin, IMS Heavy Duty 286 Cu ft, 8008 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144019$12,371.00 / EACH -
Surge Bin, IMS Heavy Duty 145 Cu ft, 4060 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144009$6,868.00 / EACH -
Surge Bin, IMS Heavy Duty 58 cu ft,
Item # 142709$3,905.00 / EACH -
Surge Bin, IMS Heavy Duty 172 Cu ft, 4816 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144011$8,539.00 / EACH -
$9,318.00 / EACH
