Vacuum/Air Take Off Box with Four 1.5″ Ports
Item #
142712
$395.65
/ EACH

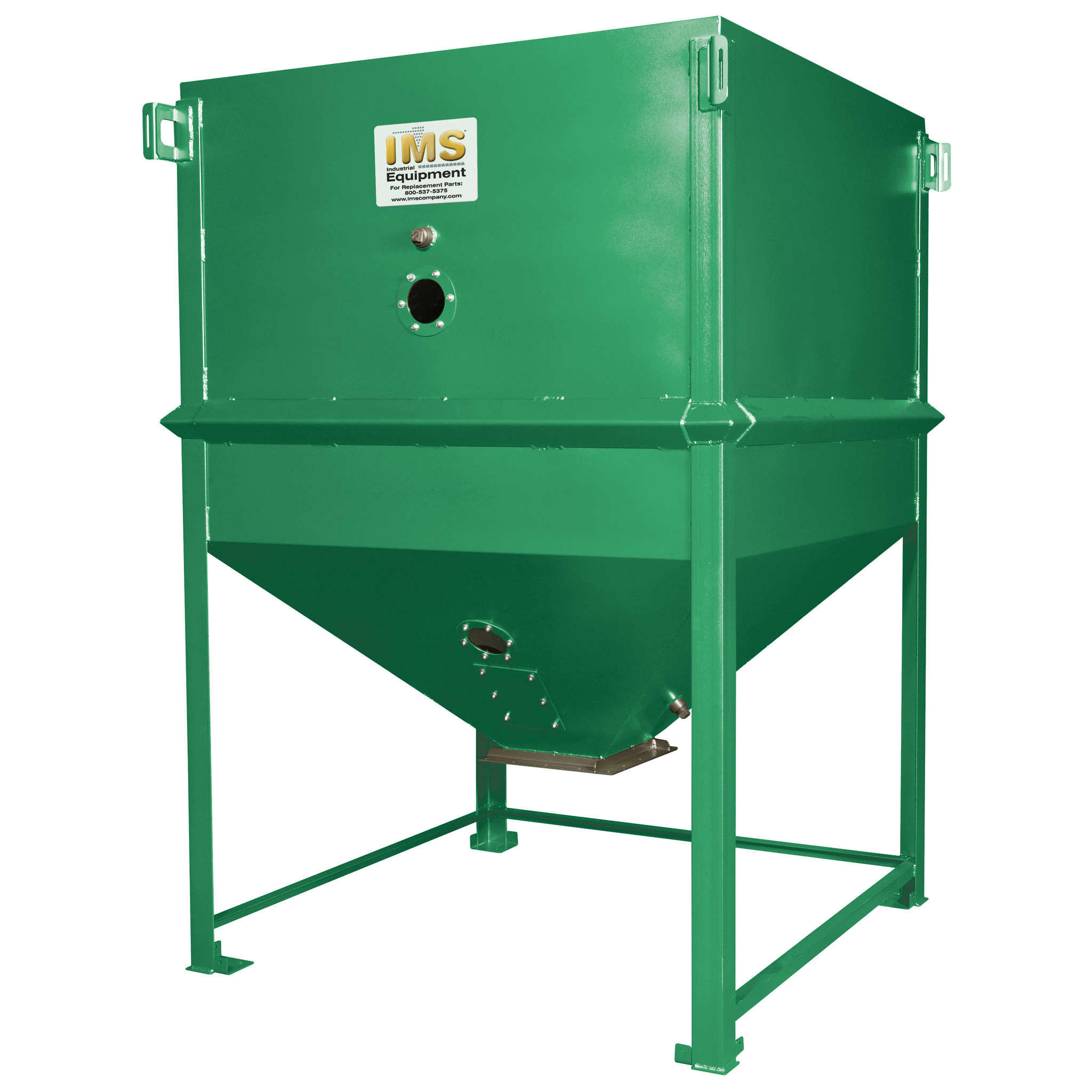

Surge Bin, IMS Heavy Duty 145 Cu ft, 4060 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item #
144009
Item is returnable
$6,868.00
/ EACH
Surge Bin, IMS Heavy Duty 145 Cu ft, 4060 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope and Lid with Access Door and Loader Pattern. ***** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
- Dimensions: 60" x 60" x 118.5"
- Weight: 1,100 lb
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
- Capacity: 145 cu ft (4060 lb)
- Hopper Slope Angle: 60°
Item Documents
- Item Catalog Page 626
-
-
$15,122.00 / EACH -
$6,780.00 / EACH -
$17,075.00 / EACH -
Surge Bin, IMS Heavy Duty 286 Cu ft, 8008 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144019$12,371.00 / EACH -
Surge Bin, IMS Heavy Duty 114 Cu ft, 3192 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144007$5,777.00 / EACH -
Surge Bin, IMS Heavy Duty 58 Cu ft, 1624 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144003$3,966.00 / EACH -
Indicator Panel for IMS Heavy Duty Surge Bin
Item # 142711$879.00 / EACH -
$8,391.00 / EACH -
Surge Bin, IMS Heavy Duty 172 Cu ft, 4816 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144011$8,539.00 / EACH -
Surge Bin, IMS Heavy Duty 201 Cu ft, 5328 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144013$9,512.00 / EACH -
$13,856.00 / EACH
