$13,856.00
/ EACH

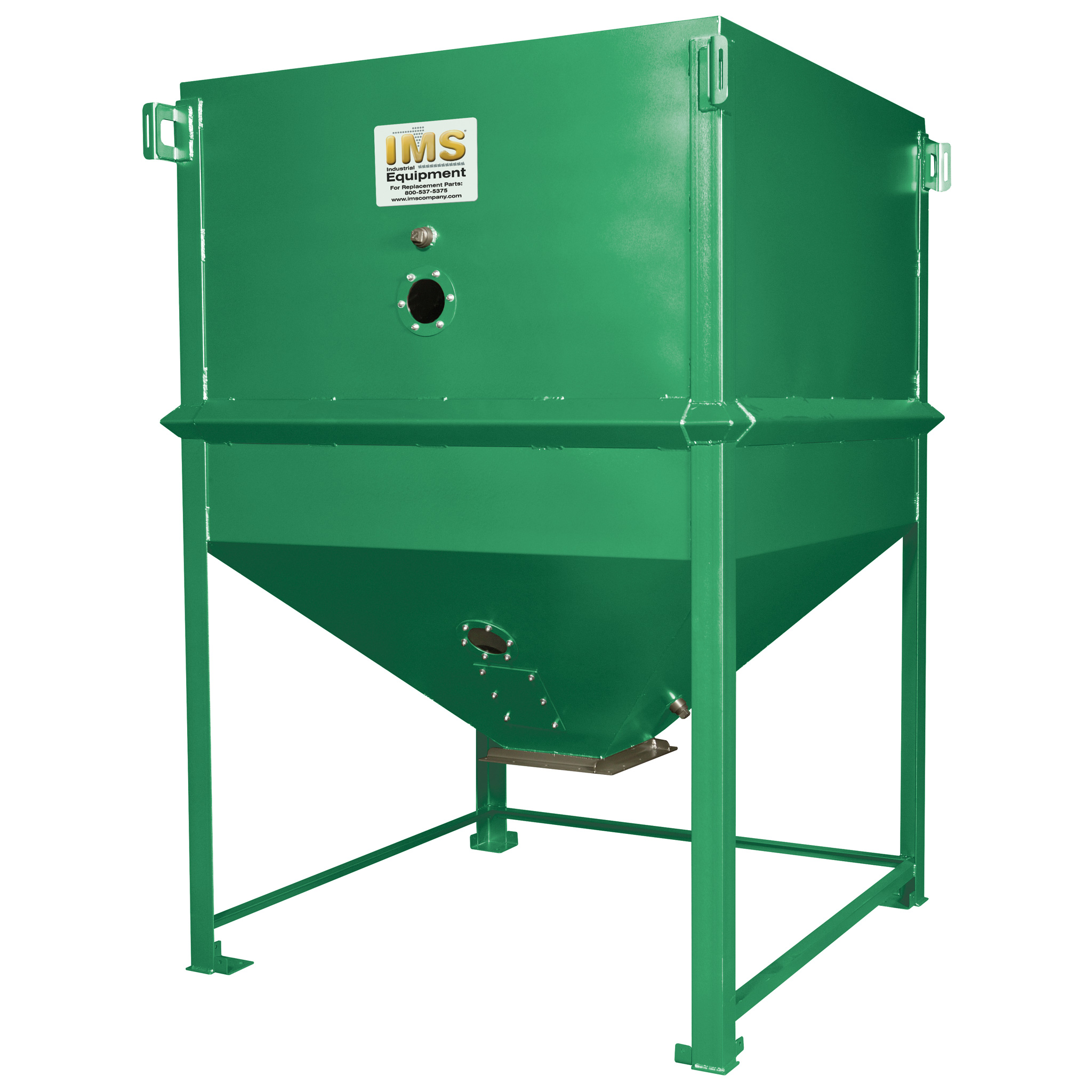

Surge Bin, IMS Heavy Duty 457 cu ft, 12, 796 lb 80% @ 35lb/cu ft with 45 Degree Slope
Item #
144024
Item is returnable
$17,075.00
/ EACH
Surge Bin, IMS Heavy Duty 457 cu ft, 12, 796 lb 80% @ 35lb/cu ft with 45 Degree Slope, and Lid with Access Door and Loader Pattern. ***** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
Item Features
- Dimensions: 84" x 84" x 158" Tall
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Weight: 2,950 lb
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
Item Documents
- Item Catalog Page 626
-
-
Surge Bin, IMS Heavy Duty 286 Cu ft, 8008 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144019$12,371.00 / EACH -
Surge Bin, IMS Heavy Duty 69 Cu ft, 2408 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144005$5,004.00 / EACH -
Indicator Panel for IMS Heavy Duty Surge Bin
Item # 142711$879.00 / EACH -
Surge Bin, IMS Heavy Duty 400 Cu ft, 11200 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144023$15,156.00 / EACH -
Surge Bin, IMS Heavy Duty 201 Cu ft, 5328 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144013$9,512.00 / EACH -
$9,931.00 / EACH -
Surge Bin, IMS Heavy Duty 145 Cu ft, 4060 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144009$6,868.00 / EACH -
$12,311.00 / EACH -
Heavy Duty Surge Bin Cover Option, 1/3 and 2/3 Split Top
Item # 143879$552.00 / EACH -
Surge Bin, IMS Heavy Duty 457 Cu ft, 12796 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144025$17,173.00 / EACH -
$10,857.00 / EACH
