Surge Bin, IMS Heavy Duty 172 Cu ft, 4816 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item #
144011
$8,539.00
/ EACH

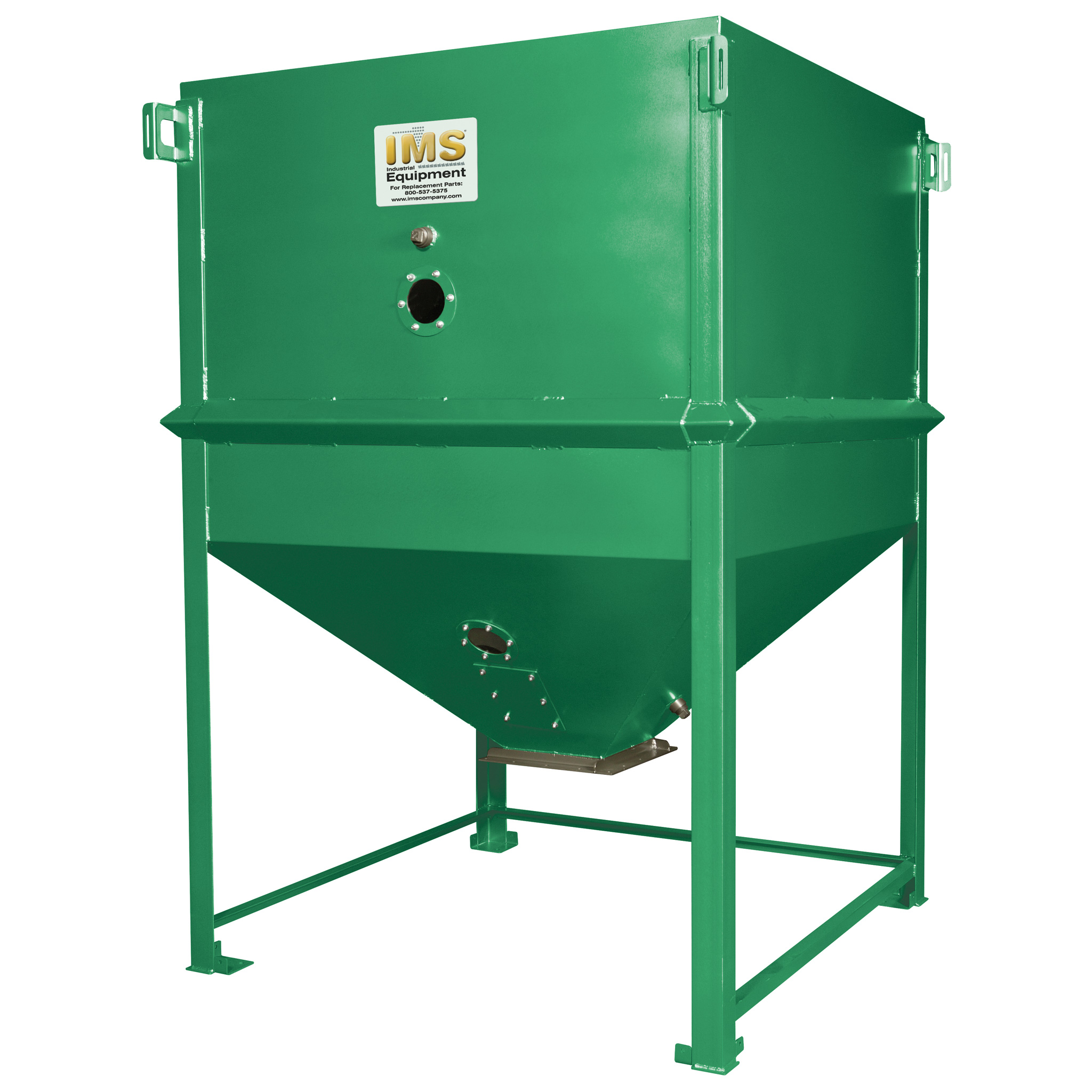

Surge Bin, IMS Heavy Duty 343 cu ft, 9604 lb 80% @ 35lb/cu ft with 45 Degree Slope
Item #
144020
Item is returnable
$13,856.00
/ EACH
Surge Bin, IMS Heavy Duty 343 cu ft, 9604 lb 80% @ 35lb/cu ft with 45 Degree Slope, and Lid with Access Door and Loader Pattern. ***** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details **** ~Dimensions: 84″ x 84″ x 130″ Tall
Item Features
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Weight: 2,420 lb
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
Item Documents
- Item Catalog Page 626
-
-
$10,857.00 / EACH -
Surge Bin, IMS Heavy Duty 514 Cu ft, 14392 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144027$23,489.00 / EACH -
Surge Bin, IMS Heavy Duty 400 Cu ft, 11200 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144023$15,156.00 / EACH -
Vacuum/Air Take Off Box with Four 1.5″ Ports
Item # 142712$395.65 / EACH -
$17,075.00 / EACH -
Indicator Panel for IMS Heavy Duty Surge Bin
Item # 142711$879.00 / EACH -
Surge Bin, IMS Heavy Duty 457 Cu ft, 12796 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144025$17,173.00 / EACH -
Surge Bin, IMS Heavy Duty 286 Cu ft, 8008 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144019$12,371.00 / EACH -
Surge Bin, IMS Heavy Duty 30 Cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 60 Degree Slope
Item # 144002$3,232.00 / EACH -
Surge Bin, IMS Heavy Duty 114 Cu ft, 3192 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144007$5,777.00 / EACH -
Surge Bin, IMS Heavy Duty 343 Cu ft, 9604 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144021$14,020.00 / EACH
