Circulator, Water, Hydra RQT0908, 9kW, 460/60/3

Item # 174729

Item is returnable

$3,555.00 / EACH

Circulator, Mold Temperature Controller, Pressurized, Hydra Model RQT0908, 460/60/3 Volts, 3/4 hp Pump, 9 kW Heating Element, Advanced Controller, 1/2″ Modulating Cooling Valve.

Operating Range 50-250 F
Water Flow 50 gpm at 20 psi
Modulating Cooling Valve, 1/2", CVS=2.9
Supply and Return Temperature Display
Supply and Return Pressure Display
Digital Flow Meter Displays Estimated Fluid Flow and Monitors Flow to the Mold
Leak-Proof Twin Tube Cast Pump Assembly
Silicon Carbide Pump Seal with Seal Flush Internal Bypass Line for Low Flow
Adjustable Inlet Cooling Water Safety Switch
Microprocessor Controller
13 Full Load Amps
3 Year Limited Parts and Labor Warranty
Lifetime Pump/Heater Casting
Lifetime Standard Pump Seal

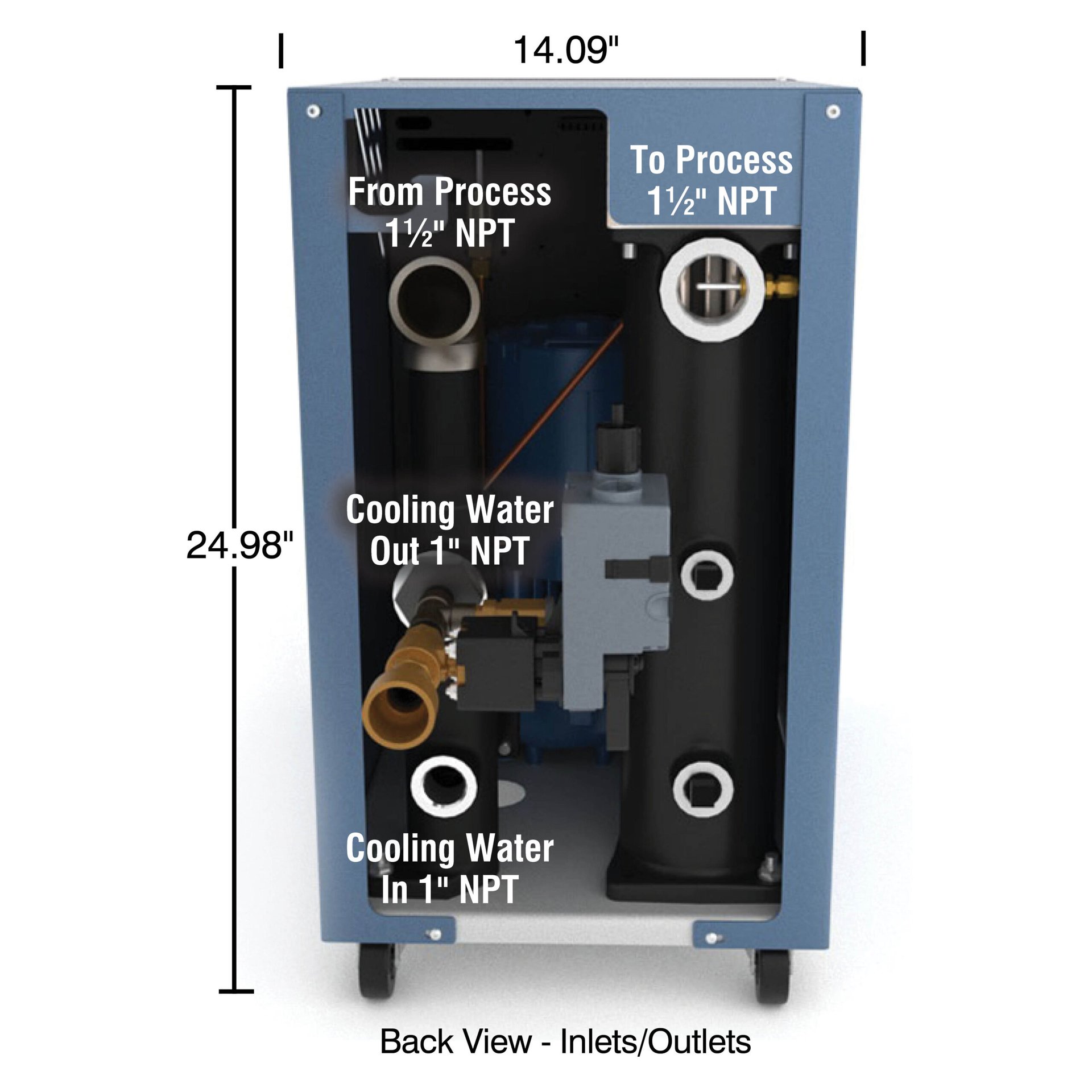

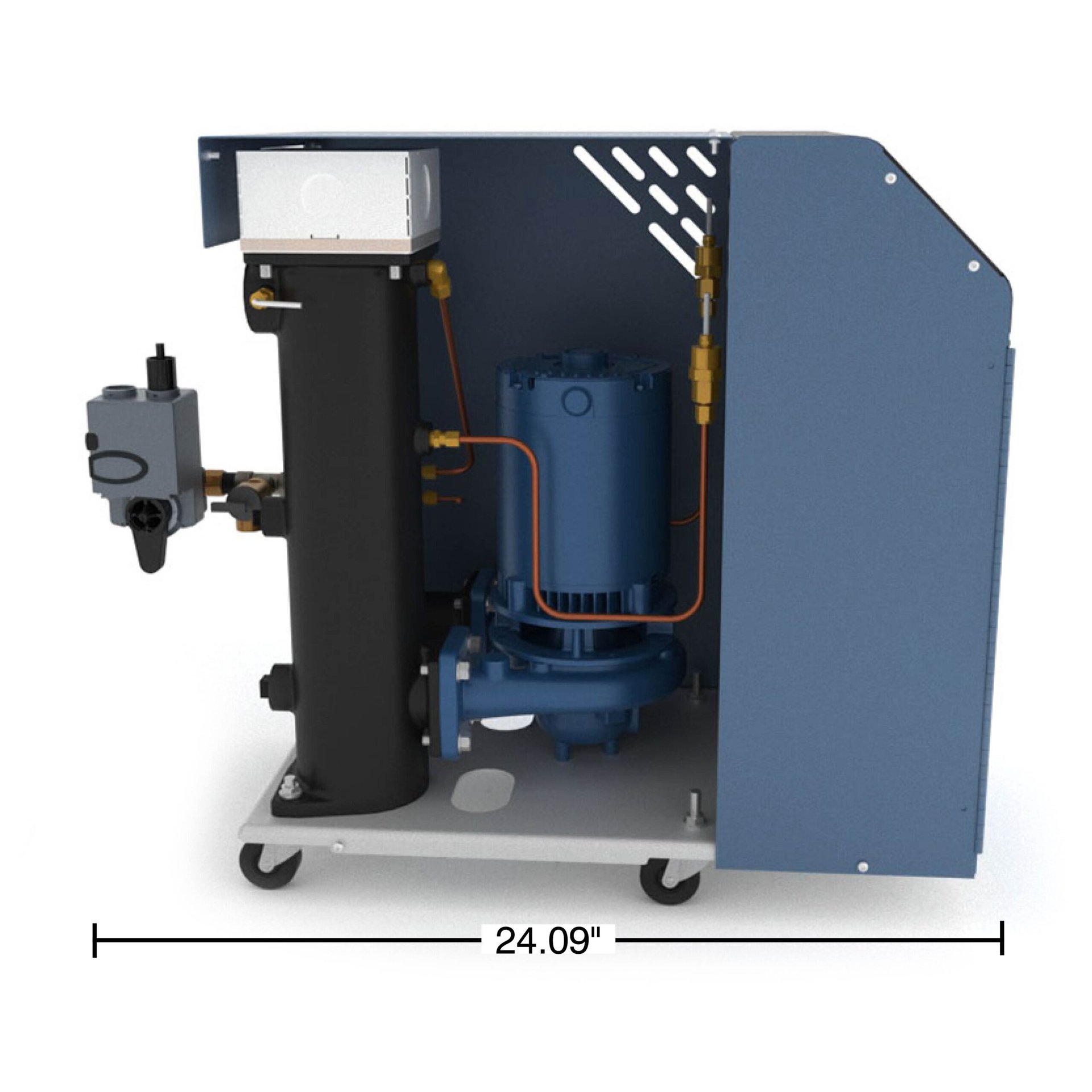

14.09" Wide, 24.09" Deep, 24.98" Tall
280 lb Ship Weight

Item Documents

Item Catalog Page 741
