50′ Extension Cable with Mating Connector
Item #
132028
$180.00
/ EACH

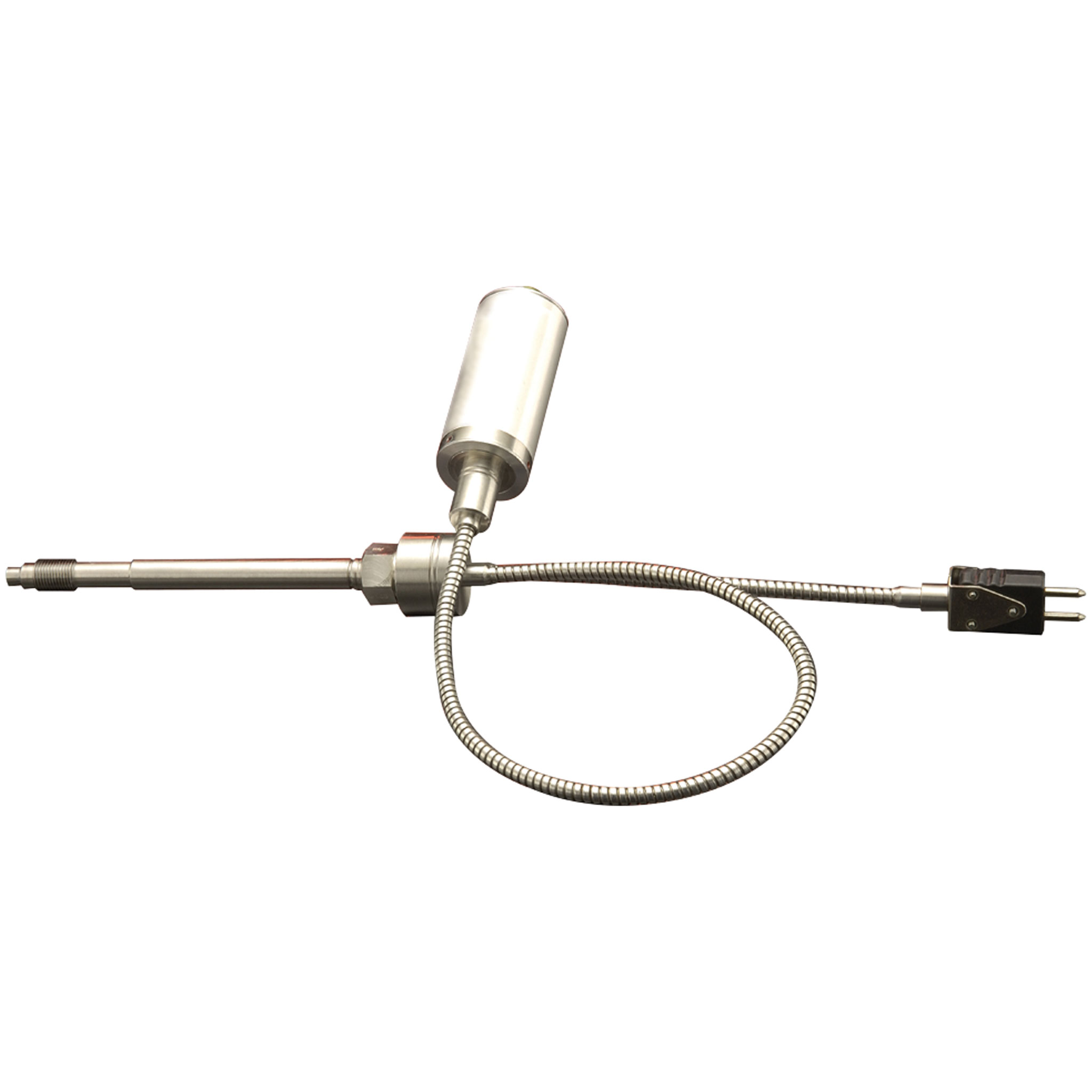

Melt Pressure Transducer, 3.3 mV/Volt, 6” Stem with 18” Flex Hose, 0-5,000 psi
Item #
174921
Item is not returnable
$850.00
/ EACH
Melt Pressure Transducer, 3.3 mV/Volt, Classic Style, 6” Stem with 18” Flex Hose Capillary, Pressure Range: 0-5,000 psi, Type J Thermocouple, NaK Filled Capillary (Mercury Free) for High Temperature Stability.
- Mounting: 1/2"-20 UNF Thread
- Diaphragm Material: Inconel
- Max Temp: Diaphragm 1000 F, Electronics 250 F
- Max Error: 1% of Full Scale
- Repeatability: +/- 0.2%
- Accuracy: 0.5%
- Calibration: 80% of Full Scale Output
- Overload Capacity: 2 Times Full Scale Output
- Measuring Sensor: 350 ohm Wheatstone Bridge
- Connector: 6 Pin Bayonet Connector
- Mounting Torque: 150 – 500 Inch Pounds
- Style: Classic
- Rigid Stem Length: 6" Stem + 18" Flex Hose
- Output Type: 3.33 mV/Volt
- Pressure Range, psi: 0-5,000
- Thermocouple: 4941
Item Documents
- Item Catalog Page 109
-
-
$970.00 / EACH -
$920.00 / EACH
-
Melt Pressure Transmitter, 4-20 mA, 6” Stem with 18” Flex Hose, 0-3,000 psi, Type J Thermocouple
Item # 174925$1,080.00 / EACH -
Melt Pressure Transmitter, 4-20 mA, 6” Stem with 18” Flex Hose, 0-10,000 psi, Type J Thermocouple
Item # 174928$1,030.00 / EACH -
$790.00 / EACH
-
$690.00 / EACH -
$920.00 / EACH
-
12′ Extension Cable with Mating Connector, 6 Pin
Item # 170423Request Quote/Call for Price -
$740.00 / EACH
-
$970.00 / EACH
-
$900.00 / EACH
