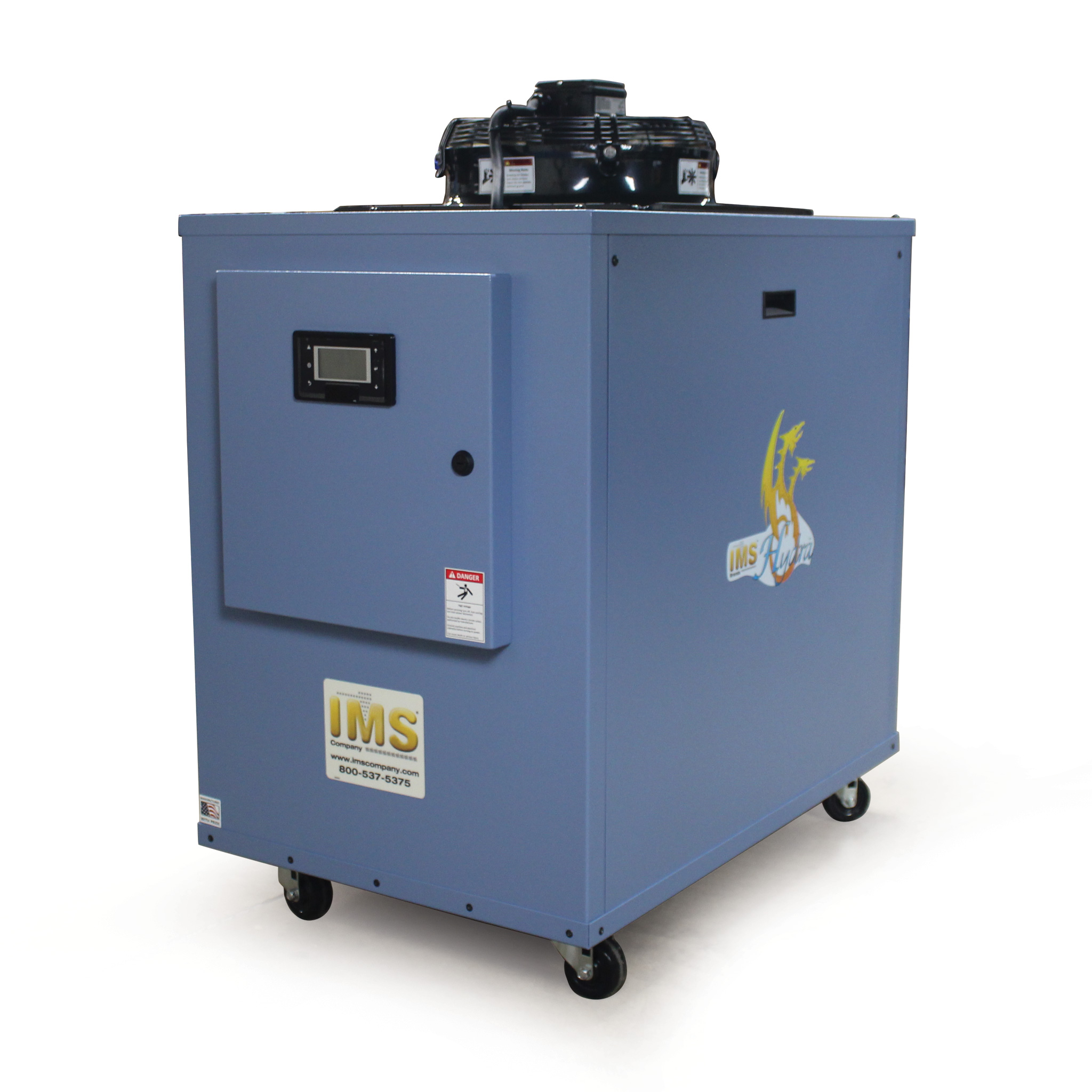

Chiller, Air Cooled, Hydra NQ Series, 4 Ton, 460/60/3

Item # 175406

Item is returnable

$14,625.00 / EACH

Chiller, 4 Ton, Air Cooled, Hydra NQ Series, 4.4 Tons Actual (52,800 Btus) at 50F Leaving Fluid Temperature and 95F Ambient. 460/60/3 Volt. Set Point Range 20F-80F. C-UL508A Controls, 7” Color Touch Screen PLC, Alarm Horn, Electronic Hot Gas Bypass, Stainless Steel Brazed Plate Evaporator, Internal Valved Bypass Line Protects the Pump and Evaporator. Y-Strainer Protects Evaporator from Contamination. Includes Casters.

Pump: 2 hp, 10 gpm at 43 psi
16 Minimum Circuit Amps at 460/60/3
Fluid Connection Size: 1-1/2" Female NPT
Refrigerant: R454b, Environmentally Compliant 2024
Single Danfoss Scroll Compressor
Nonferrous Water Circuit Construction
Insulated Polyethylene Reservoir
C-UL508A and PLC Controls
Control Includes Operation, Monitoring, Diagnostics and Trending Data
Single Point Main Power Block
Alarm Horn
Heavy Gauge Painted Steel Cabinet
Dimensions: 61"H, 34"W, 48"L
Weight: 720 lb Crated
Tested Under "Full Load" Conditions
Warranty: 18 Months Parts, 12 Months Labor

Item Documents

Item Catalog Page 755
