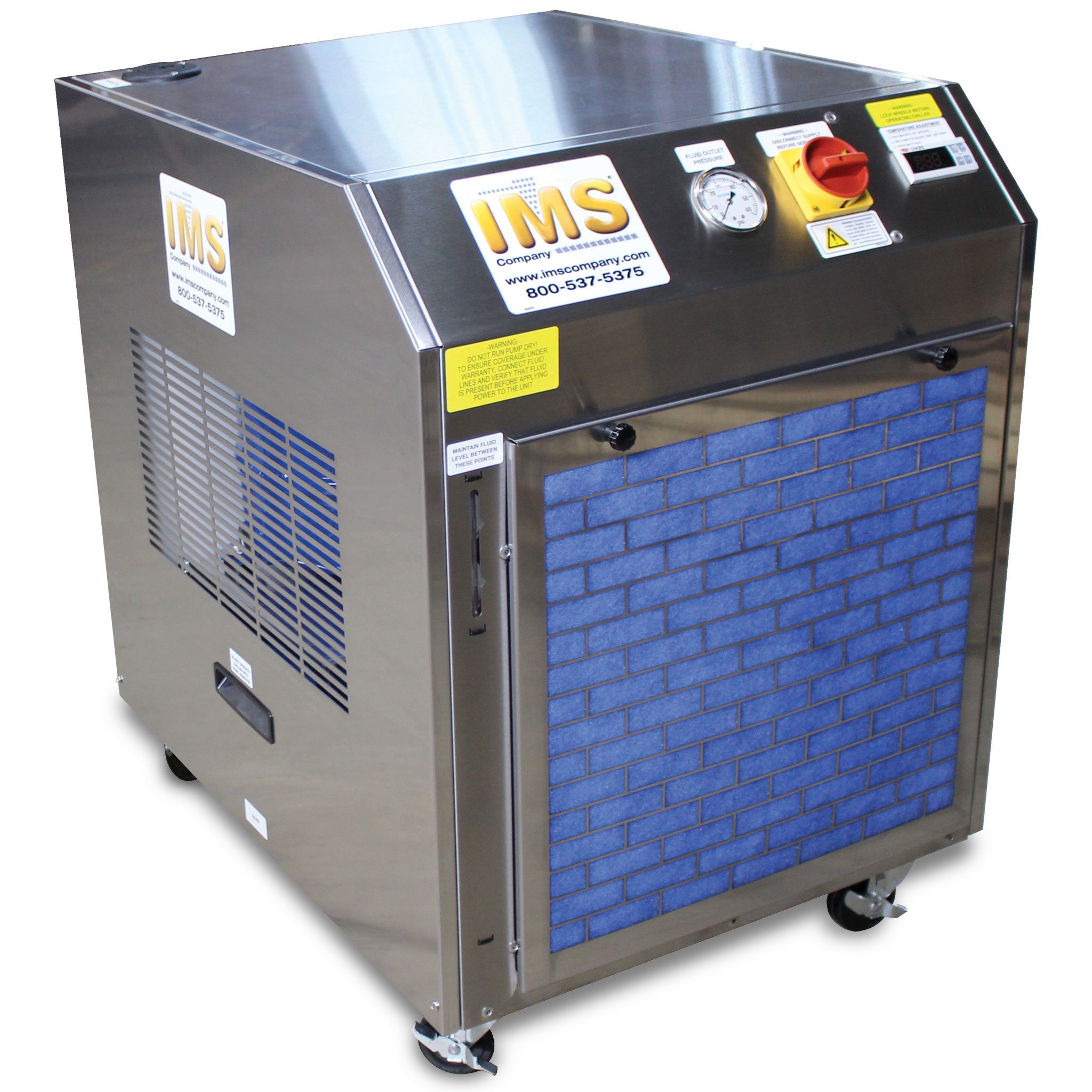

Chiller, J Series, 12000 Btu/hr, 230/60/3 Volt, Includes Auto Water Fill, Complete with Casters.

Item # 176062
Item is not returnable
$10,132.00 / EACH

Chiller, J Series, 12000 Btu/hr, Air Cooled, 65°F Water at 95°F Ambient, 230/60/3 Volt, Includes Auto Water Fill, Complete with Casters.

  • Pump hp: 1/2
  • Full Load Amps (FLA): 12
  • Tank Size: 10 Gallon
  • Flow/Pressure: 4 GPM @ 50 psi
  • Inlet/Outlet Fluid Connections: 1/2" NPT
  • Bypass Type: Pressure Relief Bypass
  • Refrigerant: R513A
  • Cabinet Size: 25.125" W x 31.125" D x 33.375" H
  • Weight (uncrated): 450 lb
  • Weight (crated): 530 lb
