Hoist Ring, Standard Size, Rated Load: 10000 lb. 1″-8 Thread Size, 1.20″ Thread Length
Item #
115963
$188.62
/ EACH
Hoist Ring, Metric Size, Rated Load: 1900 kg. M16 X 2.0 Thread Size, 25mm Thread Length
Item #
115945
Item is returnable
$80.38
/ EACH

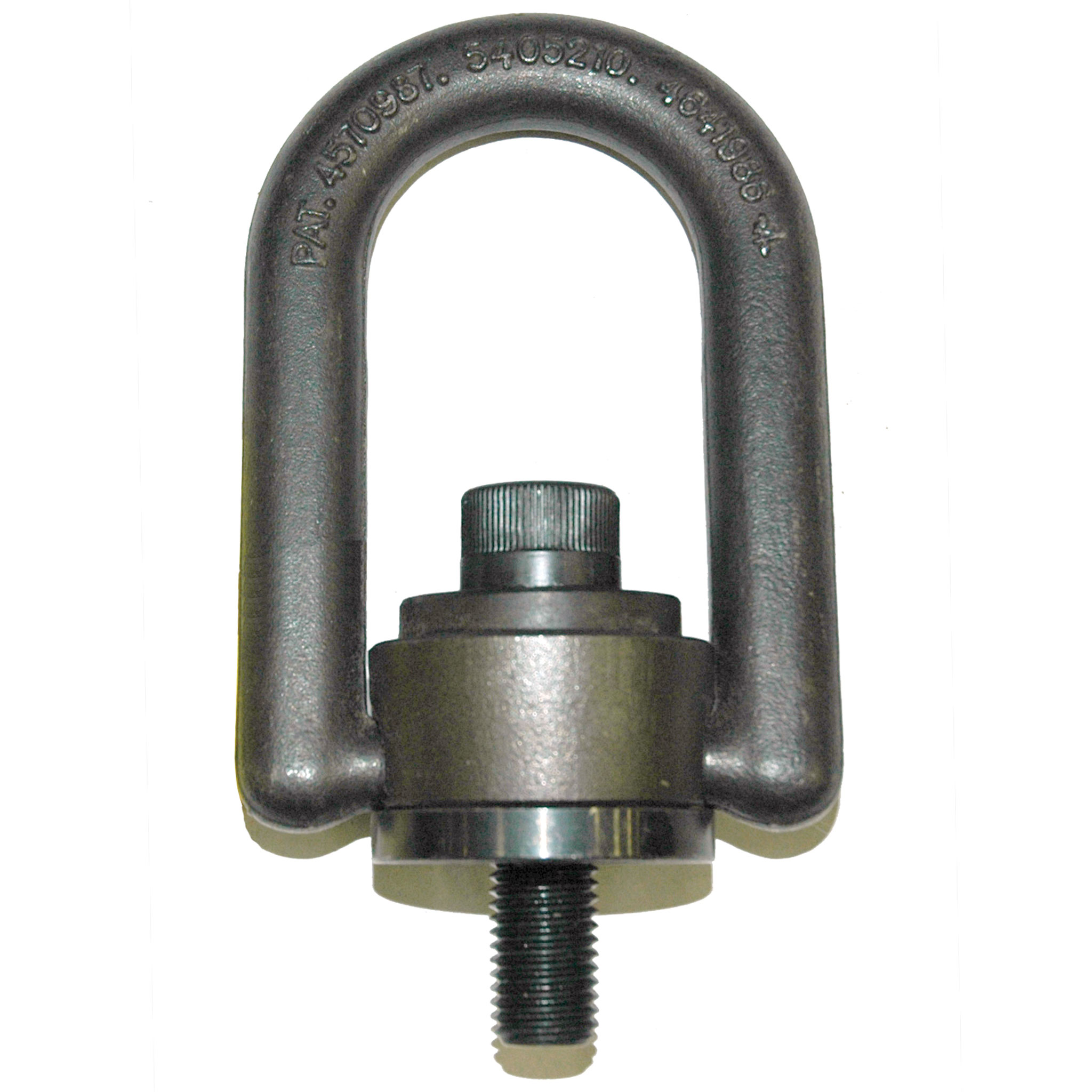

Hoist Ring, Metric Size, Rated Load: 1900 kg. M16 x 2.0 Thread Size, 25mm Thread Length. ADB # 34614
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Metric
- Rated Load: 1,900 kg
- Thread Size: M16 x 2.0
- Thread Length: 25mm
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
Hoist Ring, Standard Size, Rated Load: 15000 lb. 1-1/4″-7 Thread Size, 2.63″ Thread Length
Item # 115944$280.72 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12 X 1.75 Thread Size, 25mm Thread Length.
Item # 115955$80.38 / EACH -
Hoist Ring, Standard Size, Rated Load: 30000 lb. 2″-4-1/2 Thd Size, 2.96″ Thd Length, 2″ Shank Dia
Item # 115958$636.59 / EACH -
Hoist Ring, Metric Size, Rated Load: 1900 kg. M16 X 2.0 Thread Size, 32mm Thread Length
Item # 115934$80.38 / EACH -
Hoist Ring, Standard Size, Rated Load: 5000 lb. 3/4″-10 Thread Size, 1.5″ Thread Length
Item # 115943$83.53 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115927. Bolt/Screw Size 5/8″-11
Item # 123224$17.61 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115963. Bolt/Screw Size 1″-8
Item # 121745$39.89 / EACH -
Hoist Ring, Metric Size, Rated Load: 11000 kg. M36 X 4.0 Thread Size, 67mm Thread Length
Item # 115959$323.37 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115937. Bolt/Screw Size M10X1.5
Item # 123174$15.45 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115966. Bolt/Screw Size M24X3.0
Item # 123067$38.82 / EACH -
$80.38 / EACH
