Surge Bin, IMS Heavy Duty 400 Cu ft, 11200 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item #
144023
$15,156.00
/ EACH

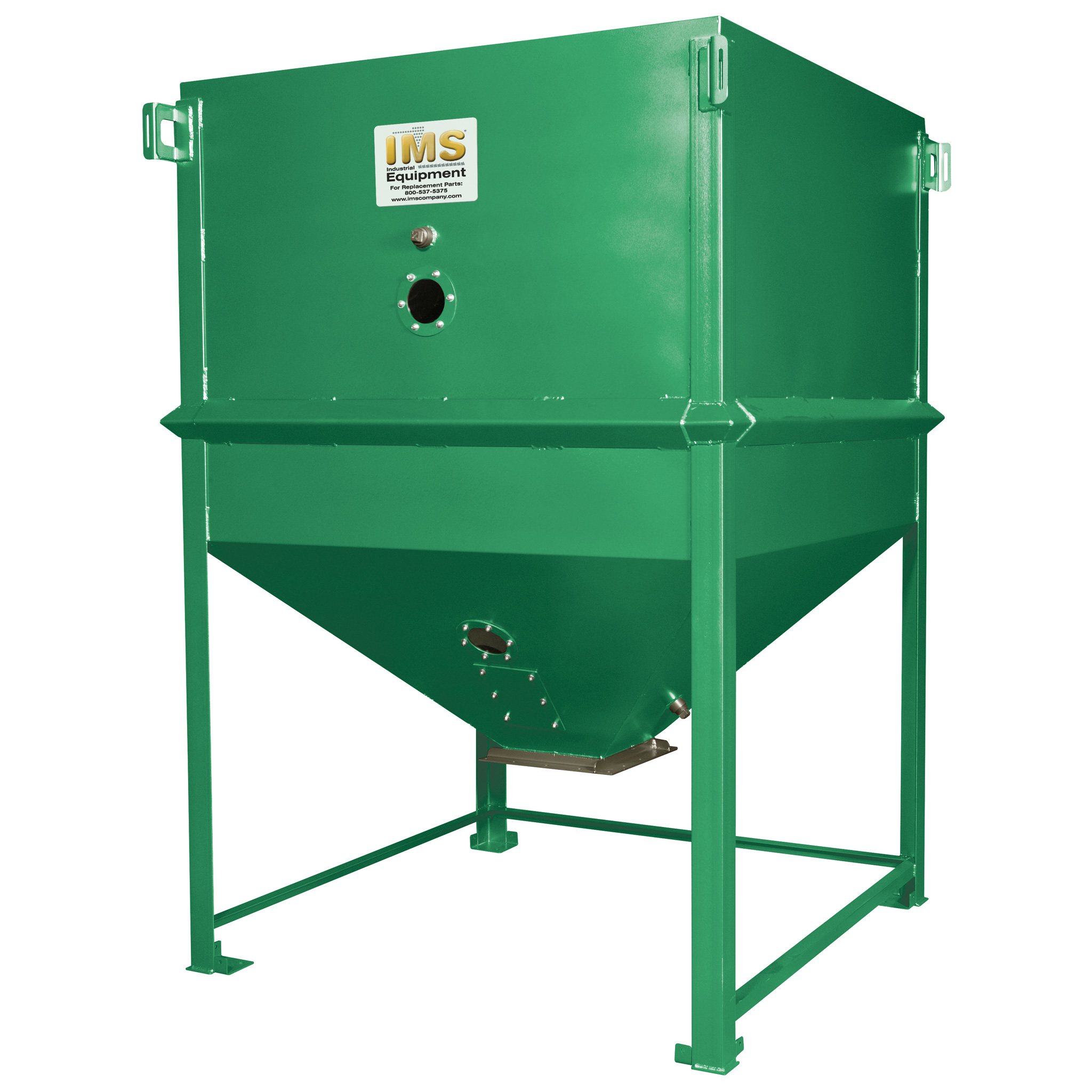

Surge Bin, IMS Heavy Duty 29 cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 45 Degree Slope
Item #
144001
Item is returnable
$3,227.00
/ EACH
Surge Bin, IMS Heavy Duty 29 cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 45 Degree Slope and Lid with Access Door and Loader Pattern. **** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details **** ~Dimensions: 54″ x 54″ x 55.5″
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Weight: 450 lb
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
- Capacity: 30 cu ft (1008 lb)
- Hopper Slope Angle: 45°
Item Documents
- Item Catalog Page 626
-
-
Surge Bin, IMS Heavy Duty 58 Cu ft, 1624 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144003$3,966.00 / EACH -
Heavy Duty Surge Bin Cover Option, 1/3 and 2/3 Split Top
Item # 143879$552.00 / EACH -
$9,931.00 / EACH -
Surge Bin, IMS Heavy Duty 343 Cu ft, 9604 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144021$14,020.00 / EACH -
$13,856.00 / EACH -
Surge Bin, IMS Heavy Duty 228 Cu ft, 6384 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144015$10,160.00 / EACH -
$9,318.00 / EACH -
Surge Bin, IMS Heavy Duty 514 Cu ft, 14392 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144027$23,489.00 / EACH -
Surge Bin, IMS Heavy Duty 572 Cu ft, 16016 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144029$25,095.00 / EACH -
$10,857.00 / EACH -
$17,075.00 / EACH
